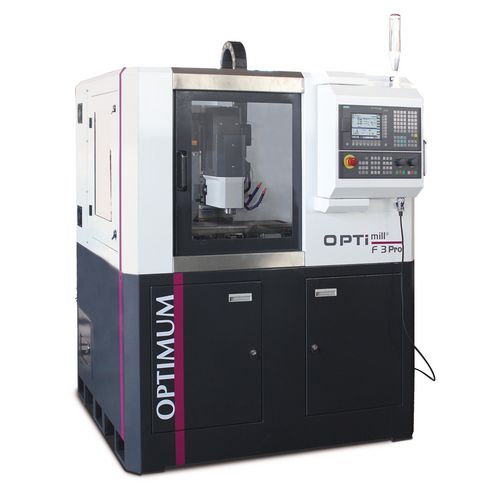

CNC MILLING MACHINE F3

Description

Technical Specifications

Model: F3 Pro
Article Number: 3500346
Electrical Connection: 400 V / 3 Ph ~ 50 Hz
Total Connected Load: 5 kVA
Main Spindle Drive: 1.5 kW
Spindle Speed: 100 – 6,000 rpm
Spindle Seat: ISO 30 / BT 30 x 45°
Cooling Lubricant System: Yes
Coolant Pump Output: 95 W
Coolant Capacity: 50 litres
Main Capacity: 10 litres
Cutting Tool Size Max.: ⌀ 25 mm
End Mill Size Max.: ⌀ 16 mm
Milling Precision: ± 0.02 mm
Positioning Accuracy: ± 0.01 mm
Max Tool Diameter (w/o additional positions): 100 mm / 80 mm
Max Tool Weight: 6 kg
X Axis Travel: 360 mm
Y Axis Travel: 200 mm
Z Axis Travel: 340 mm
Feed Speed: 10 m/min
Rapid Traverse: 9 m/min
Spindle Torque: 3.5 Nm
Spindle Nose to Table: 3.5 mm
Spindle Nose to Center of Column: 175 mm
Clearance Spindle to Table: 270 mm
Table Size (L × W): 460 × 200 mm
Max Load on Table: 120 kg
Overall Dimensions (L × W × H): 1410 × 1372 × 2001 mm
Weight: 720 kg
