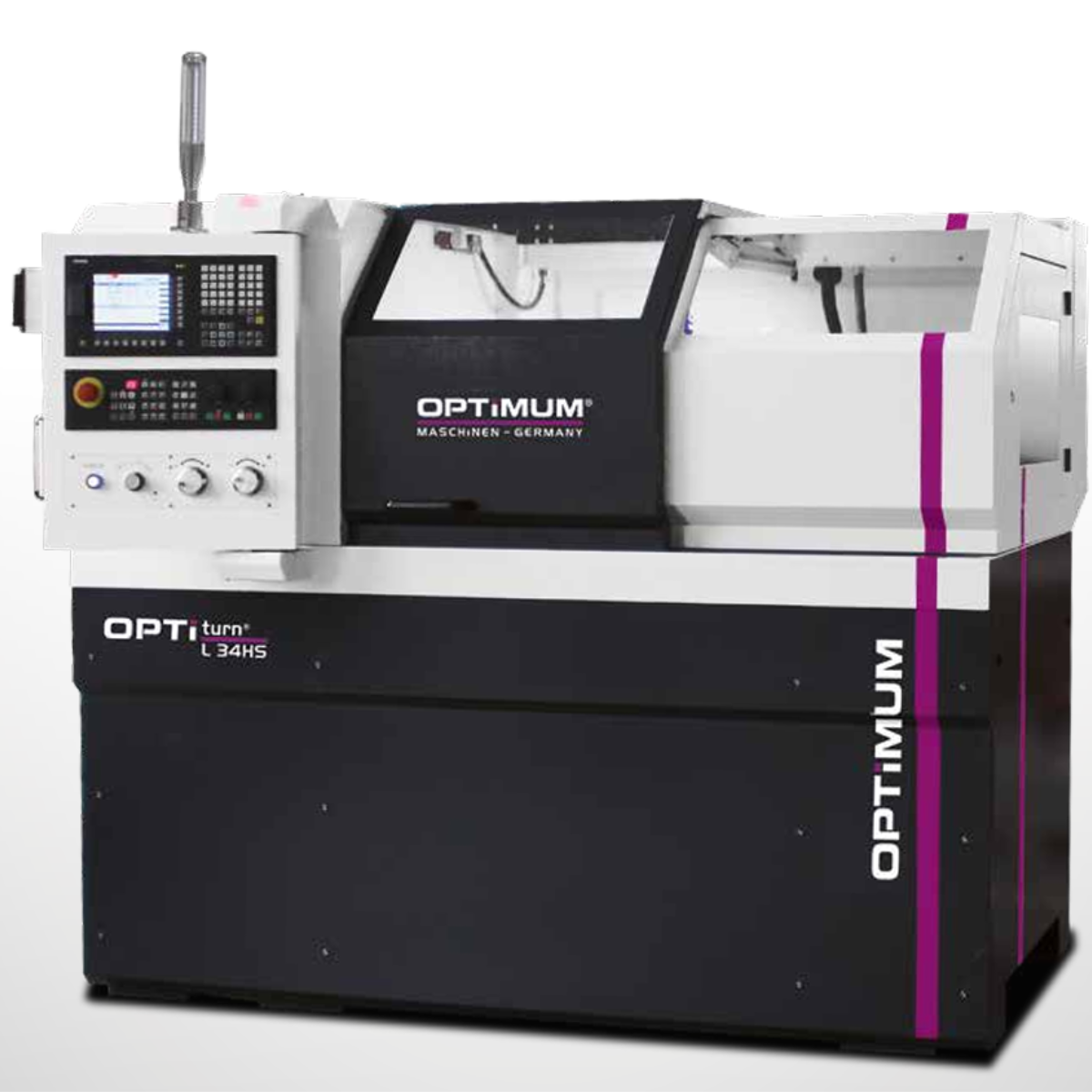

OPTIMUM CNC Lathe Machine L34HS

Description

Technical Specifications

Model: L 34HS
Article Number: 3504232
Electrical Connection: 400 V / 3 Ph ~50 Hz
Total Connected Load: 6.5 kVA
Spindle Drive Motor (S1): 3.7 kW
Torque Drive Motor (S1): 23.6 Nm
Torque at the Spindle: 40 Nm
Spindle Seat: ISO 702-1 No. 4 form A2
Spindle Bore: Ø 46 mm
Chuck Passage: Ø 42 mm
Lathe Chuck Diameter: Ø 160 mm
Coolant Pump Output: 95 W
Tank Capacity: 75 litres
Pump Delivery Rate: Max. 6 l/min
Max. Delivery Head: 3 m
Centre Height: 165 mm
Centre Width: 540 mm
Swing Ø Above Cross Slide: 146 mm
Swing Ø Above Machine Bed: 350 mm
Bed Width: 208 mm
Spindle Speeds: 30 – 3 500 rpm
Number of Tool Slots: 6
Max. Mounting Height x Width of Square: 16 x 16 mm
Max. Chuck Diameter Drilling Rod: 16 mm
Repeat Accuracy: ± 0.01 mm
Positioning Accuracy: ± 0.01 mm
X Axis Travel: 185 mm
Z Axis Travel: 540 mm
X Axis Feed Speed: 6 m/min
Z Axis Feed Speed: 8 m/min
X Axis Motor Torque: 4 Nm
Z Axis Motor Torque: 6 Nm
Tailstock Shank: MT 3
Spindle Sleeve Diameter: 45 mm
Spindle Sleeve Stroke: 120 mm
Dimensions (L x W x H): 1950 x 1475 x 1956 mm
Overall Weight: 1200 kg
Overall Package:
The SINUMERIK 808D ADVANCED control is a panel-based CNC control for simple turning applications
Preconfigured for turning with technology-specific variants and enhanced for mould and tool making
SINUMERIK 808D ON PC control-identical software available at Siemens Xcelerator
RJ45 Ethernet port
Ready for remote maintenance
AST function for optimisation under dynamic and precision conditions
Absolute encoder with no referencing move required
Greater precision
Control:
8.4 inch LCD colour display with 800 x 600 resolution
