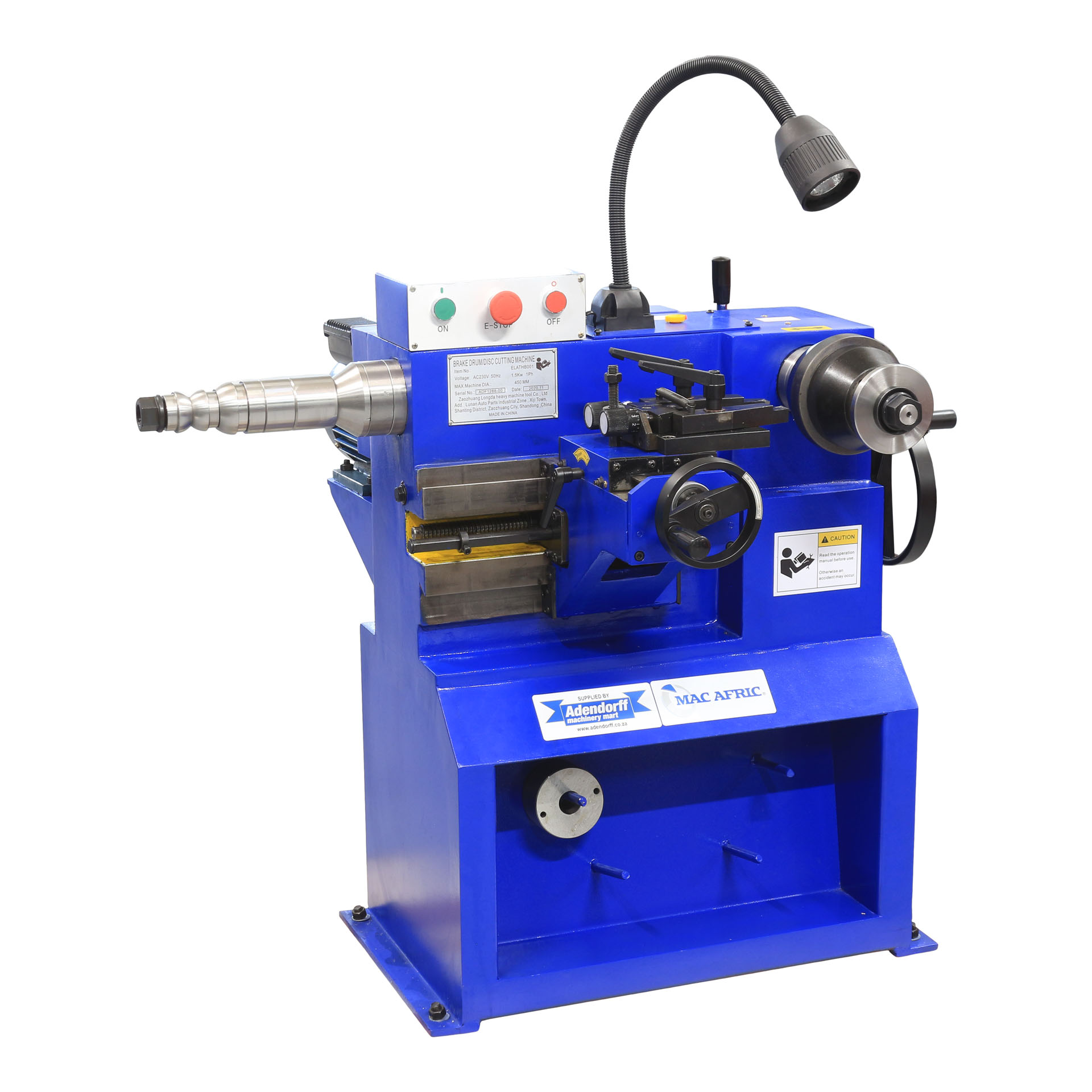

MAC AFRIC Brake Disc Lathe (230 V) (Brake Disc Skimming Machine)

The all-new Mac Afric disc and drum lathe (also known as a brake disc skimming machine) is a great new edition of our garage range. This machine revolutionizes the concept of lathing and offers a complete solution for brake disc and drum reconditioning.  The lathe features solid construction, dual functionality with a 3-speed spindle operation for a quality finish in less time. Ideal for disc size(s) 180-400mm not exceeding 40mm thickness and for the brake drum’s – outer diameter 180-450mm. The user-friendly features an infinitely adjustable spindle-feed gearbox that allows the operator to precisely pinpoints the right settings for precision turning.This machine is a great all-rounder offering reliability and durability to complete the garage workshop.

SKU: ELATHB001 Category:

Description

Technical Specifications

Brake Disc Diameter: 180 – 400 MM (7″ IN – 15.75″ IN)
Max. Brake Disc Thickness: 40 MM (1.57″ IN)
Outer Diameter of Brake Drum: 180 – 450 MM (7″ IN – 17.7″ IN with Hub)
Working Stroke: 170 MM (6/7″ IN)
Spindle Speed: 30 / 52 / 86 RPM
Feeding Rate: 0.16 / 0.3 MM/REV
Motor: 1.1 KW (1.5 HP)
Gross Weight: 320 KG
Voltage: 230 V @ 50 HZ
