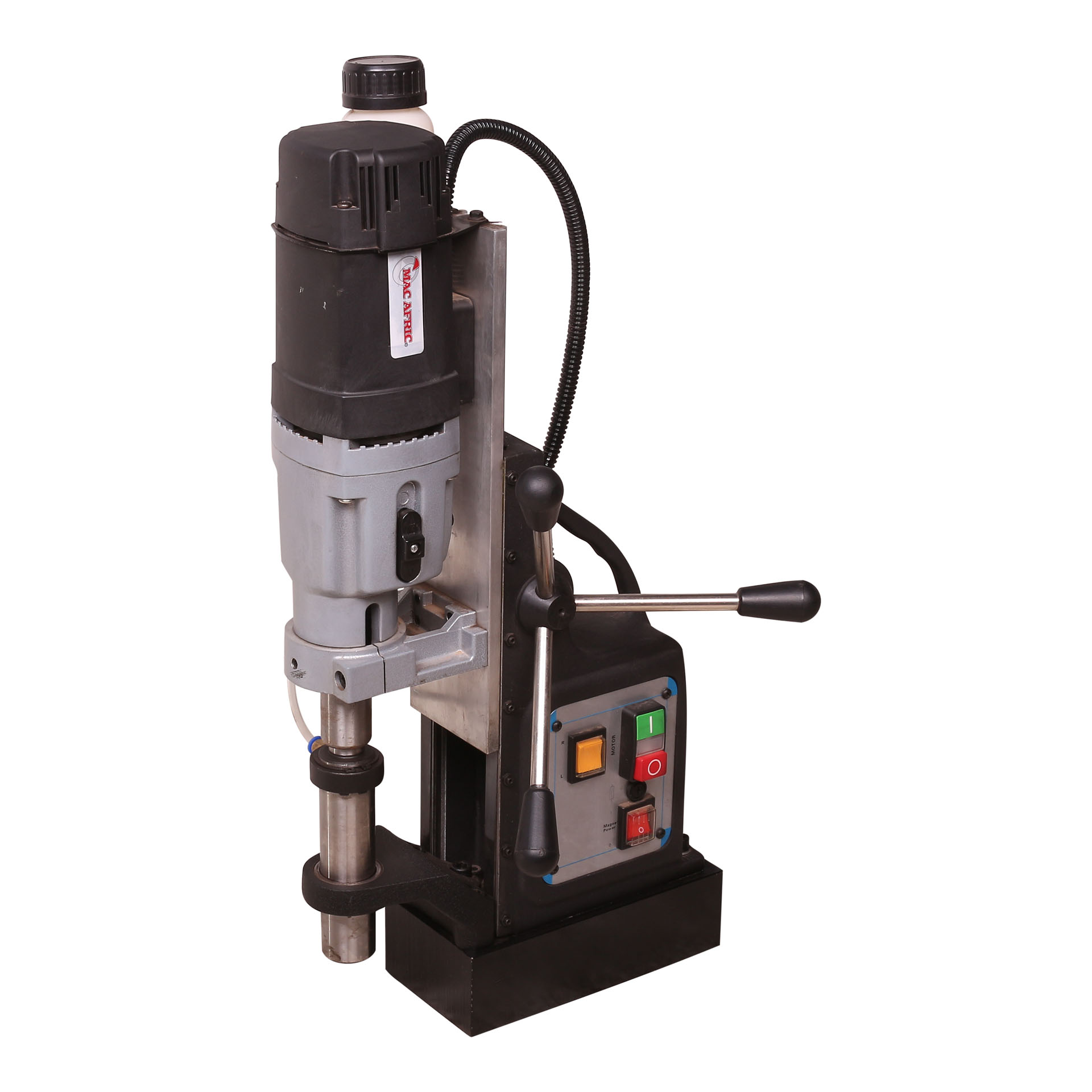

MAC AFRIC 75 MM Magnetic Base Drill
The MAC AFRIC portable Magnetic base drill features a high-performance motor with a robust sturdy design, quick-release chuck for increased productivity. Suitable for on-site hole cutting in steel plates such as H-Beams, framework, shipbuilding, bridge construction, steel reinforcements, and many other metalworking and construction jobs. Features 2 x drilling speed selection Quick-release chuck for broach cutters Compact design with heavy-duty magnet Drills up to 75mm diameter Sturdy feed handles Includes Quick-release chuck for broach cutters 13mm drill chuck & adaptor Coolant tank kit Safety chain Blow mold plastic case
Description
Technical Specifications
Power Output: 1.8 kW (2.4 HP)
Voltage: 230 V @ 50 Hz
Max Cutting Depth: 75 mm
Max Twist Drill Size: 32 mm
No-Load Speed: 260 – 460 rpm
Speed Selection: 2-speed
Base Dimensions: 220 × 110 × 60 mm
Magnetic Force: 18,000 N
Spindle / Chuck: MT3 spindle
Drill Chuck Supplied: 13 mm chuck and adaptor included
Coolant Tank: Kit included
Package Dimensions: 48 × 20 × 68 cm
Package Weight: 31.25 kg
Key Features
Powerful 1.8 kW motor delivers reliable performance for heavy-duty drilling
High magnetic force (18,000 N) ensures strong and stable positioning on metal surfaces
2-speed gearbox allows flexibility for different drilling applications
Capable of drilling up to 75 mm cutting depth and 32 mm twist drill size
MT3 spindle provides compatibility with a wide range of tooling
Supplied with 13 mm chuck and adaptor for added convenience
Integrated coolant system improves tool life and cutting efficiency
Compact yet robust design for workshop and on-site use
Frequently Asked Questions
What is a magnetic drill used for?
A magnetic drill is designed for drilling into steel and other metals. The magnetic base keeps the machine securely attached to the workpiece, making it ideal for structural steel, beams, and on-site fabrication.
How strong is the magnetic base?
This unit has a magnetic force of 18,000 N, providing excellent stability and safety when drilling on vertical or overhead metal surfaces.
What type of tooling can I use with the MT3 spindle?
The MT3 spindle allows compatibility with a wide range of drill bits, including twist drills, annular cutters (with appropriate adaptors), and other MT3 tooling.
Why is coolant important when drilling metal?
Coolant reduces heat, improves cutting efficiency, and significantly extends the life of your drill bits and cutters, especially during heavy-duty or continuous drilling.
Can this drill be used on-site or only in a workshop?
This magnetic drill is designed for both workshop and on-site use, making it ideal for construction, fabrication, and maintenance tasks where portability and precision are required.
