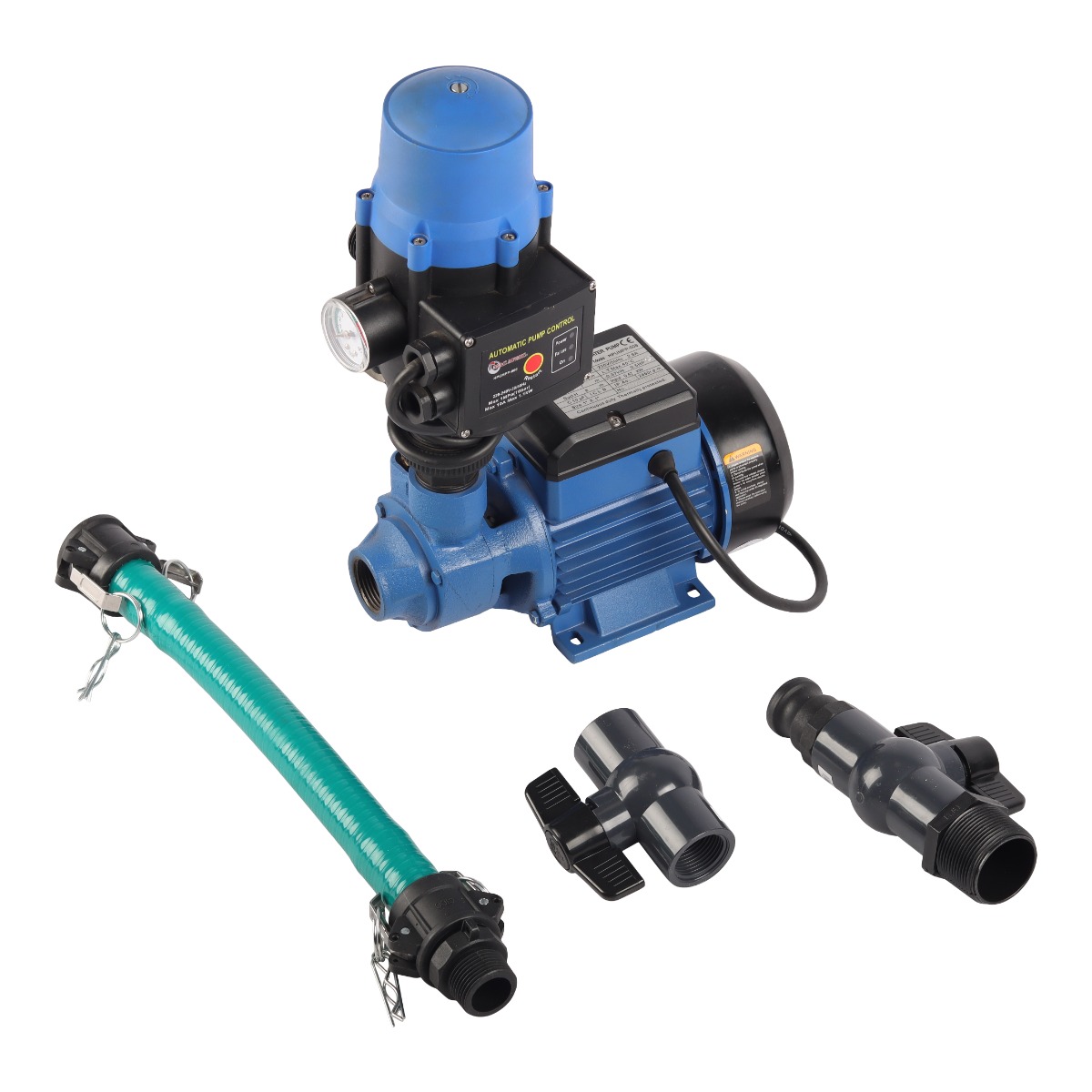

PUMP SPECIAL (HPUMPP008 & HPUMPH001)

Description

Technical Specifications

Pump – MAC AFRIC 0.5 HP Peripheral Pump (HPUMPP008)
Power Supply: 230 V ±10% @ 50 Hz (Single Phase)
Motor Output: 0.37 kW (0.5 HP)
Load Speed: 2,850 RPM
Flow Rate: 40 L/PM
Max Pressure: 10 Bar (146 PSI)
Gauge Increments: 0.2 Bar
Pump Height: 0–33 H/M
Amperage: 2.6 A
Max. Liquid Temperature: +90°C
Protection Degree: IP44
Gauge Measurement: Bar
Max Ambient Temperature: +40°C
Starting Pressure Range: 4–8 Bar (58–117 PSI)
Hose Kit – MAC AFRIC Peripheral Pump Hose Kit (HPUMPH001)
Hose Type: Durable, flexible water transfer hose
Includes: 1 fixed-length hose + fittings
Fittings: High-quality materials, water-resistant and reusable
What is a Peripheral Pump?
A peripheral pump is a close-coupled centrifugal pump featuring an impeller with several radial vanes. As the impeller rotates inside the casing’s concentric channel, it transfers large amounts of energy to the liquid flowing between the vanes and the casing—resulting in high pressure buildup. Fluid moves from the inlet to the outlet as internal pressure increases.
Common Applications
To pump uncontaminated liquids
Pressure boosting (only if the main line pressure is lower than the pump-rated pressure)
Ideal for low flow, high pressure applications
