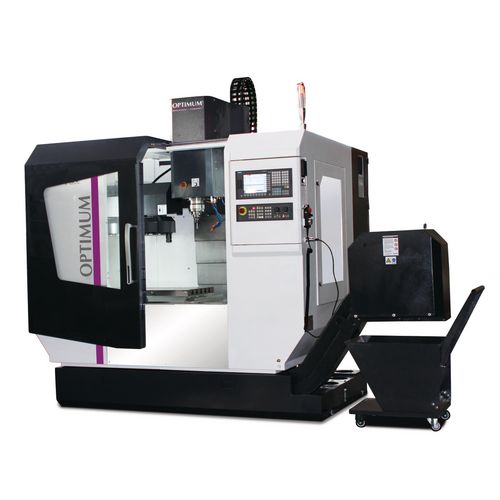

OPTIMUM CNC Milling Machine F150E

Description

Technical Specifications

Model: OPTIMUM CNC Milling Machine F150E
Article Number: 350150
Drive: Belt Drive
Electrical Connection: 400 V / 3 Ph ~50 Hz
Total Connected Load: 15 kW
Drive Motor S1: 7.5 kW
Torque S1: 48 Nm
Drive Motor S6 30%: 11.25 kW
Torque S6 30%: 72 Nm
Spindle Seat: BT 40
Coolant Pump Output: 450 W
Coolant Tank Capacity: 190 litres
Repeat Accuracy: ± 0.008 mm
Positioning Accuracy: ± 0.008 mm
Number of Tool Slots: 16
Max Tool Diameter: 80 mm
Max Tool Diameter (adjacent slots empty): 180 mm
Max Tool Length: 300 mm
Max Tool Weight: 8 kg
Travel X / Y / Z: 800 mm / 500 mm / 500 mm
Rapid Traverse (X/Y/Z): 32 m/min
Motor Torque (X/Y/Z): 9.55 Nm / 9.55 Nm / 16.7 Nm
Speed Range: 10 – 10,000 rpm
Compressed Air Requirement: 6 bar
Spindle Clearance to Table: 120 – 670 mm
Spindle to Column Distance: 380 mm
Table Size (L x W): 1000 x 500 mm
T-Slot Size / Number / Distance: 18 mm / 5 / 80 mm
Maximum Payload: 500 kg
Dimensions (L x W x H): 3420 x 2050 x 2400 mm
Overall Weight: 4500 kg
Key Features
Powerful 15 kW spindle system with BT40 taper for professional precision
Large working area with 800 x 500 x 500 mm travel for industrial jobs
16-slot automatic carousel tool changer with 7-second swap time
High torque output ideal for tough materials and deep cuts
Precision repeatability and position accuracy of ± 0.008 mm
Robust cast-iron frame minimizes vibration for high quality finishes
Frequently Asked Questions
What industries commonly use CNC mills like the F150E?
CNC milling machines are widely used in automotive, aerospace, industrial fabrication, toolmaking, and educational sectors for precise and repeatable part manufacturing.
Can I use this CNC machine for steel and hardened alloys?
Yes, the F150E has sufficient torque, rigidity, and spindle power to handle steel, stainless steel, and alloy materials effectively.
Does the machine include a coolant system?
Yes, the F150E includes an integrated coolant system with a 450 W pump and 190 L tank capacity.
What kind of programming knowledge is required to operate it?
The machine is compatible with standard G-code, so familiarity with CNC programming or CAD/CAM software is recommended. Training is advised for new operators.
