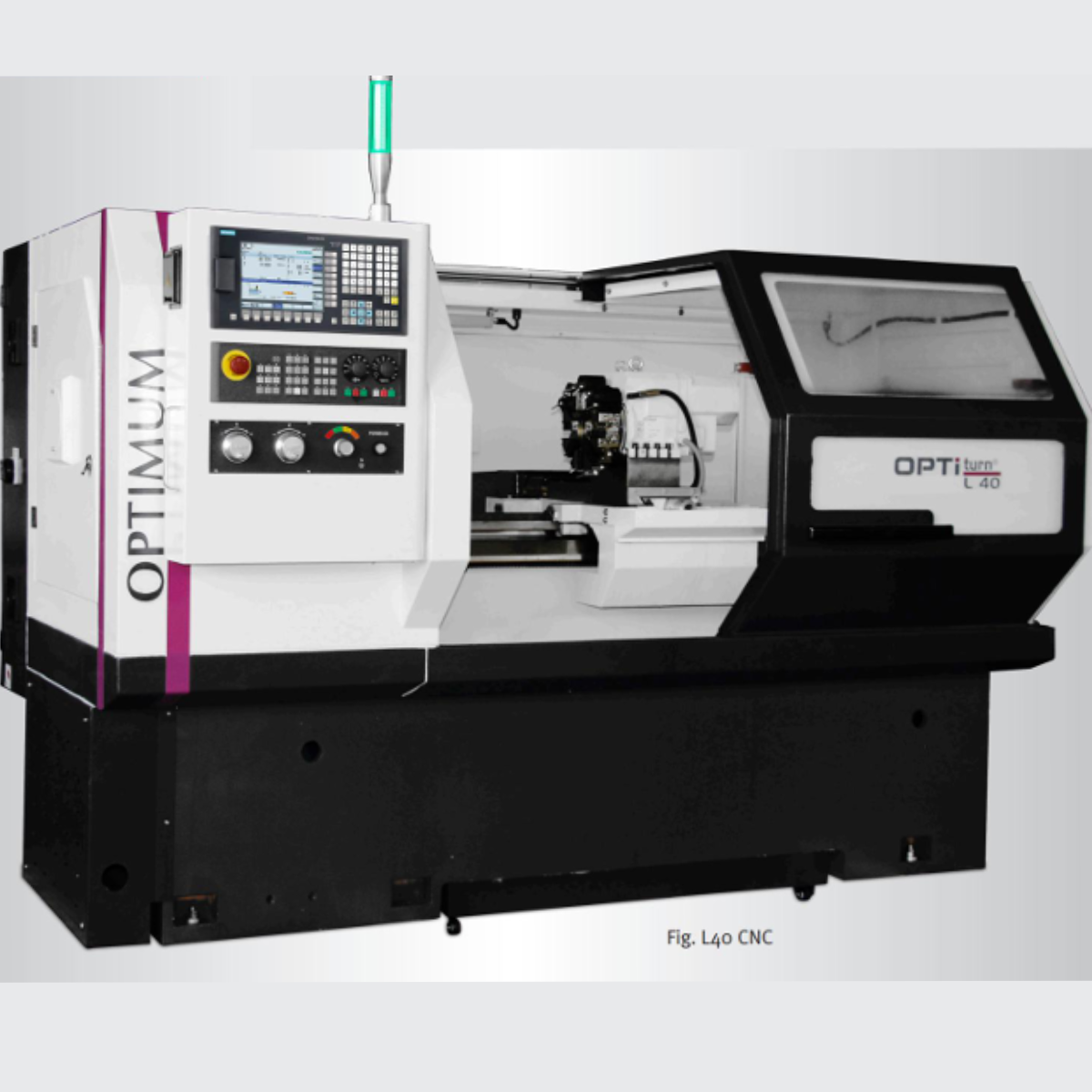

OPTIMUM CNC Lathe Machine L40

Description

Technical Specifications

Model: L40
Item No: 1304000
Total Power: 11 KW
Electrical Connection: 400V 50Hz 3Ph
Main Motor Power: 7.5 KW
Coolant Pump Power: 370 W
Capacity: —
Swing Over Bed: Ø400 mm
Swing Over Cross Slide: Ø240 mm
Center Width: 850 mm
Center Height: 200 mm
Spindle Taper: MT6
Spindle Nose: A2-6
Spindle Bore: Ø51 mm
Spindle Speed Range: 30–2500 rpm
Lathe Chuck: Ø200 mm
Tool Turret Type: Electric
Number of Tools: 8
Section of Tool (Max): 20 x 20 mm
X/Z Axis Travel: 240/850 mm
X/Z Axis Rapid Feed: 6000/8000 mm/min
Position Accuracy: ±0.015 mm
Repeat Position Accuracy: ±0.01 mm
Tailstock Taper: MT4
Tailstock Sleeve Diameter: Ø55 mm
Tailstock Sleeve Travel: 120 mm
Overall Dimensions (L x W x H): 2540 x 1420 x 1750 mm
Packing Size (L x W x H): 2760 x 1630 x 1953 mm
Net Weight / Gross Weight: 2400 / 2550 kg
Tank Capacity: 110 L
