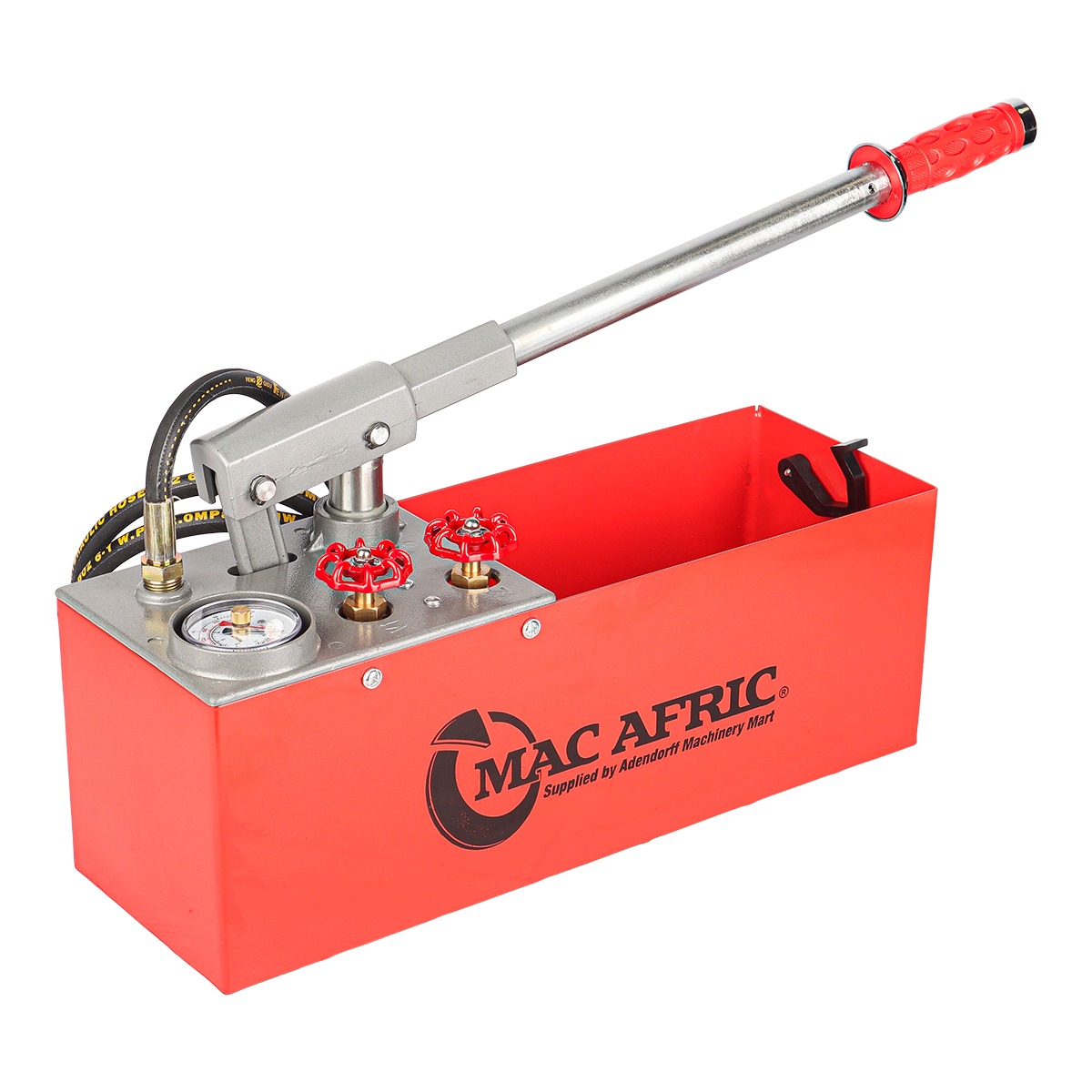

MAC AFRIC PRESSURE TESTING PUMP

Description

Technical Specifications

Dimensions: 520 × 190 × 290 mm
Weight: 8.2 kg
Tank Volume: 12 L
Piston Volume: 45 mL
Testing Fluid: Water, Oil
Maximum Temperature: 50 °C (Carton) / 120 °F (≈ 49 °C – Manual)
Maximum Pressure: 50 bar / 726 psi / 6 MPa
Key Features
Manual hydraulic pressure testing pump
Integrated 12 L fluid tank for convenient operation
Suitable for pressure testing systems using water or oil
Designed for controlled pressure build-up via piston operation
Compact and portable design for on-site testing
Included Accessories & Components
Pressure hose
V1: Shut-off valve
V2: Purge valve
Locking hook
Handle
Tank
Ideal Applications
Pressure testing plumbing installations
Testing pipelines and water systems
Hydraulic system leak detection
General maintenance and installation verification
Safety & Usage Notes
Do not exceed maximum pressure of 50 bar (726 psi / 6 MPa)
Maximum operating temperature: 50 °C
Ensure purge valve is used correctly to remove air before pressurising
Always release pressure fully before disconnecting the system
Frequently Asked Questions
What is a hydraulic pressure testing pump used for?
A hydraulic pressure testing pump is used to test plumbing systems, pipelines, pressure vessels and hydraulic equipment for leaks. It allows you to manually build up pressure using water or oil to check system integrity before commissioning.
Can this pump be used with oil as well as water?
Yes, this unit is suitable for both water and oil as testing fluids, making it ideal for various plumbing, irrigation and hydraulic applications.
What is the maximum pressure this pump can produce?
The maximum working pressure is 50 bar (726 psi / 6 MPa). Never exceed the rated pressure to avoid equipment damage or personal injury.
What is the maximum operating temperature?
The maximum operating temperature is 50 °C (approximately 120 °F). Do not exceed this limit during operation.
How does the pressure build up?
Pressure is built manually by operating the handle, which drives the 45 mL piston to gradually increase system pressure in a controlled and safe manner.
What safety precautions should I take when pressure testing?
Always ensure all fittings are properly tightened before testing. Use the pump within its rated pressure and temperature limits, wear appropriate PPE, and never stand directly in front of pressurised fittings while testing.
Does this pump come with a warranty?
Yes. All MAC AFRIC products include a One Year Carry-in Warranty covering manufacturer or material defects, subject to terms and conditions. For full details, please visit:
Adendorff Warranty & Guarantee.
