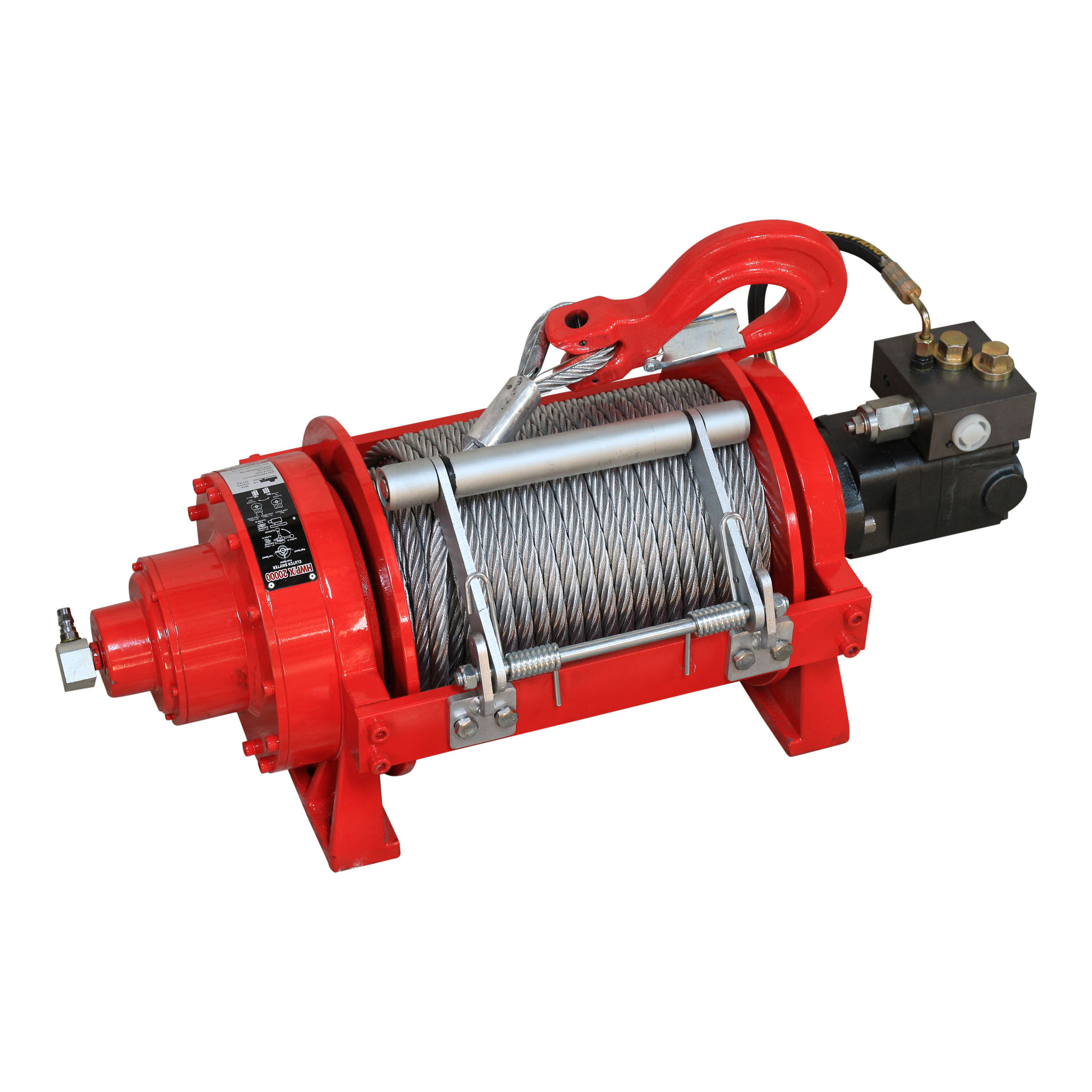

MAC AFRIC HWP20000Y1P Heavy Duty Hydraulic Winch

Description

Technical Specifications

Rated Line Pull: Low: 1 814 KG – 9 072 KG
High: 316 KG – 1 578 KG
Motor Type: Hydraulic
Motor Specifications: NA
Motor Displacement: 100 ML/R
Gear Reduction Ratio: 39:1
Cable Length: 48 M (157″ IN)
Cable Diameter: 14 MM (9/16″ IN)
Mounting Bolt Pattern: 431 x 64 x 192 MM (17″ x 2.5″ x 7.6″ IN); 8-M14
Mounting Dimensions: 42.8 x 19.2 MM
Pressure: 25 – 175 BAR (362.6 – 2 538.1 PSI or 2.5 – 17.5 MPA)
Drum Size (Dia x L): 138 x 260 MM (5.4″ x 10.2″ IN)
Oil Flow: 15 – 75 L/MIN
Line Speed: Low: 1.8 – 9 M/MIN
High: 8.3 – 50 M/MIN
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips:
These figures apply to rolling loads (not dead weight or dragging).
Use snatch blocks or pulley systems to increase pulling capacity when necessary.
Regularly inspect your winch and recovery gear to ensure safety and performance.
