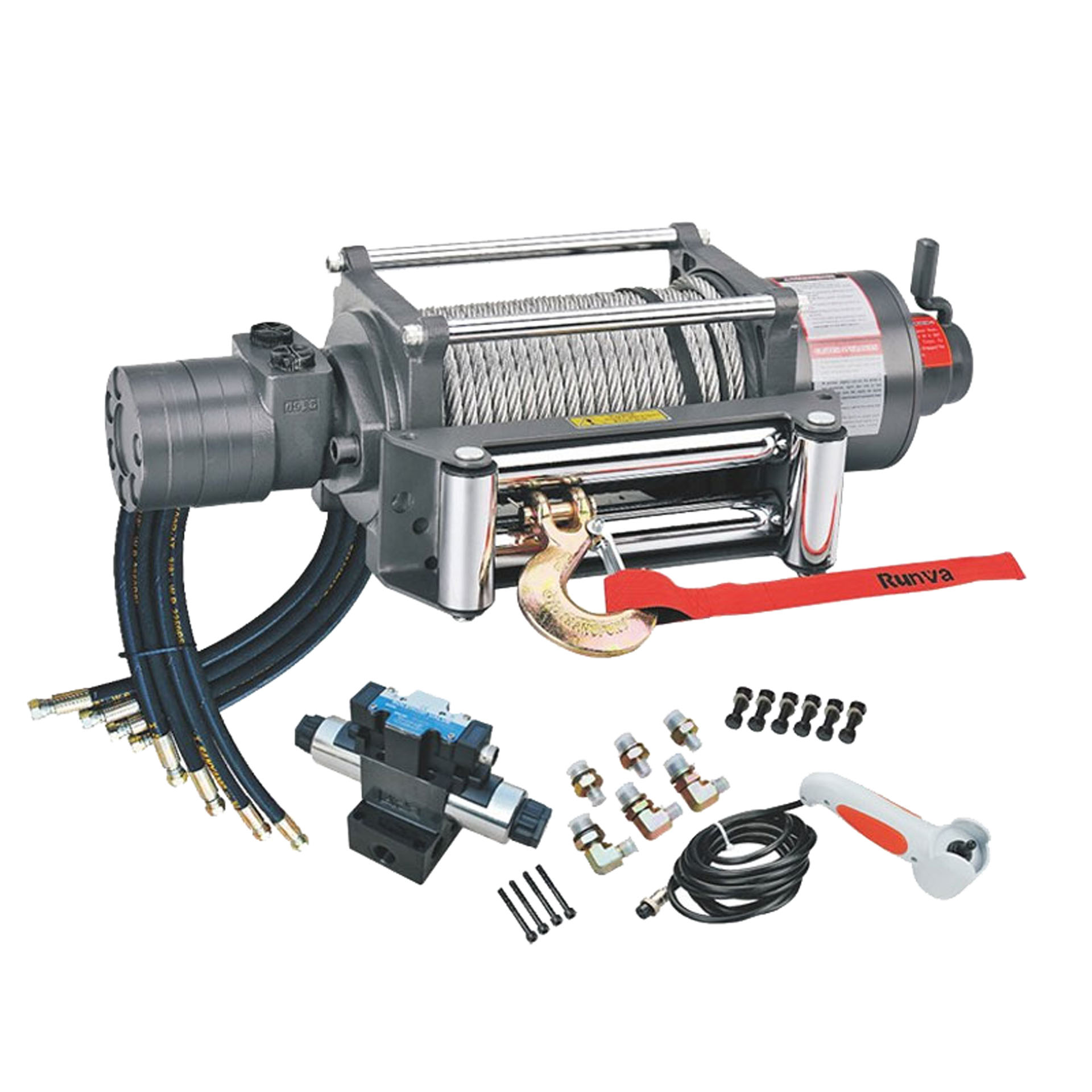

MAC AFRIC HWP12000A Hydraulic Winch
The MAC AFRIC HWP12000A Hydraulic winch is reliability built into a heavy-duty case designed for trailers, towing, and utility vehicles. Built with robust internal parts including a free spooling clutch and a high-speed gear ratio making it the ideal value for quality hydraulic winch on the market.
Description
Technical Specifications
Rated Line Pull: 5 443 KG (12 000 LBS) @ 4.9 M
3 084 KG (6 800 LBS) @ 25.5 M
Motor Type: Hydraulic
Motor Specifications: NA
Motor Displacement: 65 ML/R
Gear Reduction Ratio: Low Speed: 28:1
High Speed: 6:1
Cable Length: 25.5 M (83.7″ IN)
Cable Diameter: 10.2 MM (13/13″ IN)
Mounting Bolt Pattern: 254 x 114.3 MM (10″ x 4.5″ IN); 4-M10
Mounting Dimensions: 25.4 x 11.4 MM
Pressure: 110 BAR (1595 PSI or 11 MPA)
Drum Size (Dia x L): 63 x 223 MM (2.5″ IN x 8.8″ IN)
Oil Flow: 5 – 45 L/MIN
Line Speed: Low: 0.6 – 5.3 M/MIN
High: 3.3 – 31.2 M/MIN
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips:
These figures apply to rolling loads (not dead weight or dragging).
Ensure proper use of snatch blocks or pulley systems for higher loads.
Regularly inspect your winch and recovery gear for safety.
Basic Winching: Top Tips
Assess the situation from all angles before beginning to winch.
Stop, slow down, and think through all of your recovery options.
