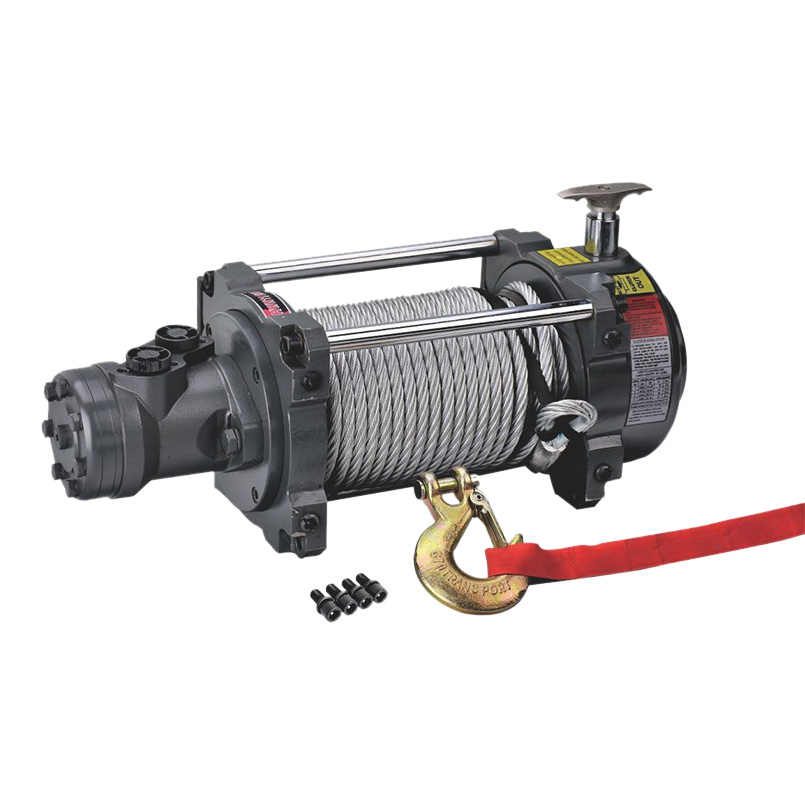

MAC AFRIC 15000 lbs Hydraulic Winch
Introducing the MAC AFRIC HWN15000YD Hydraulic Winch – your ultimate heavy-duty companion for challenging tasks! With an impressive rated line pull of 15,000 lb (6,804 kg), powered by a reliable hydraulic motor and boasting a gear reduction ratio of 33.4:1, this winch is built to handle the toughest loads with ease. Its durable construction, large drum size, and cable tensioner included ensure smooth operation, while the wide range of oil flow (5 – 60 L/MIN) and line speed (1.8 – 9 M/MIN) provide versatility to tackle various applications. Upgrade your winching capabilities with the MAC AFRIC HWN15000YD Hydraulic Winch and experience the power to conquer any challenge!
Description
Technical Specifications
Rated Line Pull: 15000 lb (6804 kg)
Motor Type: Hydraulic
Motor Specifications: NA
Gear Reduction Ratio: 33.4:1
Cable Length: 12 mm x 26.5 m. Cable Tensioner Included
Cable Diameter: 21 mm (15/32″ IN)
Mounting Bolt Pattern: 254 mm x 114.3 mm
Mounting Dimensions: 25.4 x 11.4 mm
Pressure: 130 BAR (1885 PSI or 13 MPa)
Line Speed: 1.8 – 9 m/min
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips:
These figures apply to rolling loads (not dead weight or dragging).
Ensure proper use of snatch blocks or pulley systems for higher loads.
Regularly inspect your winch and recovery gear for safety.
