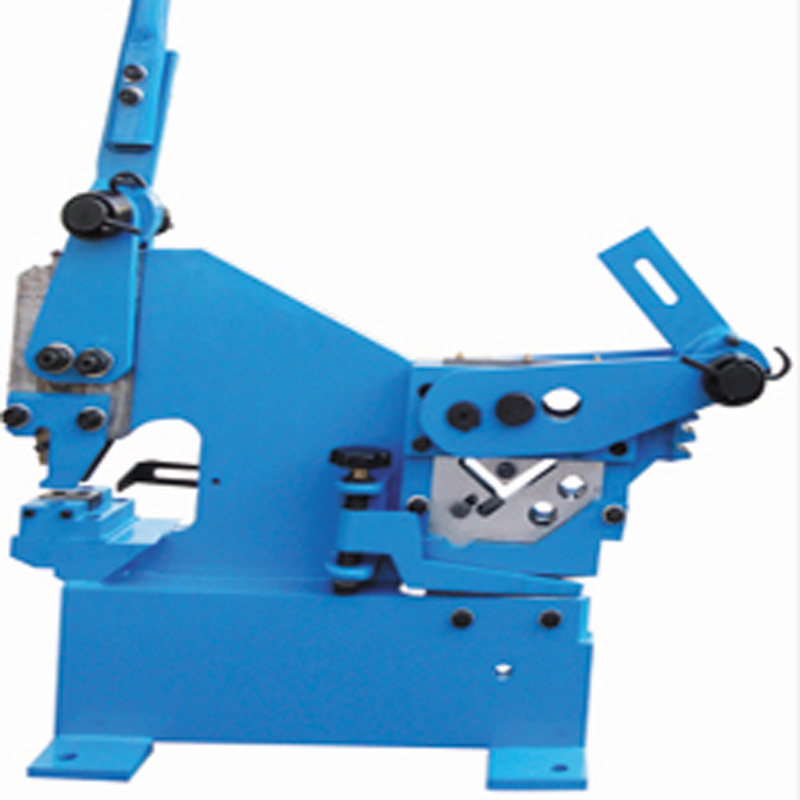

MAC AFRIC Bar & Section Shear
A multi function shear & punch. Ideal equipment for any fabrication job. Sturdy design, can be bolted to table top or floor. Can cut angled, solid, round, flat or solid steel.
Description
Technical Specifications
Blade Length: 178 MM
Maximum Cutting Thickness: 8 MM
Blade Material: Carbide Steel
Mounting Spacing: 470 MM
Flat Bar: 90 x 14 MM
Round Bar: 22 MM
Edge: 60 x 7 MM
Plate Steel: 10 MM
Punch Mould & Die: 55 x 34 x 18 MM
Max Throat Depth: 160 MM
Handle Length: 1.22 M
