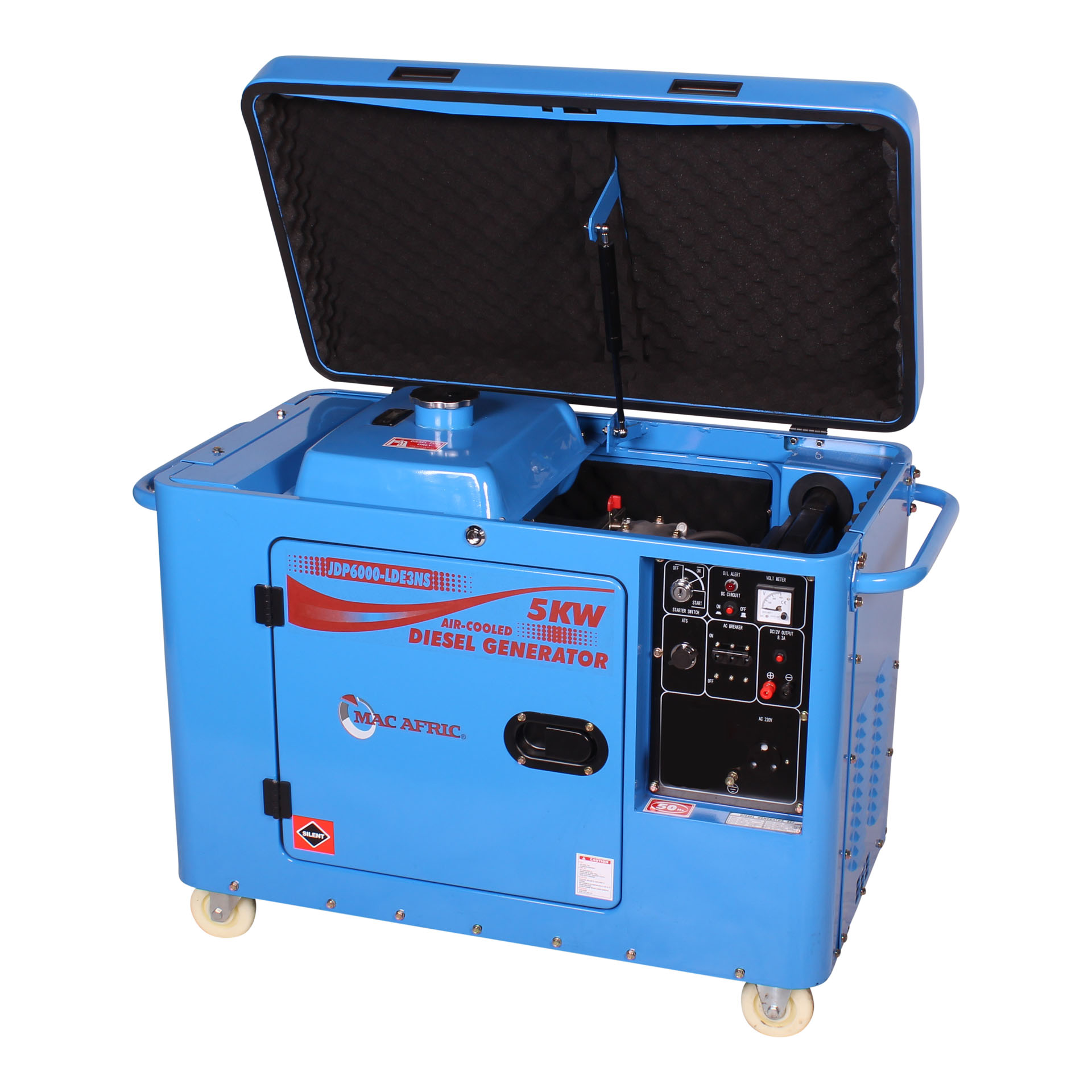

MAC AFRIC 6.5 kVA (5 KW) Standby Enclosed Type Diesel Generator – 230V Single Phase
A diesel-powered electricity generator. The engine is enclosed in a sound-shielded cover, making it ideal to provide backup power to a home or small business. Diesel. Electric (keyed) start. Enclosed design.
Description
Technical Specifications
Power Output: 5 KW (6.5 KVA)
Voltage: 230 V (Single Phase) @ 50 Hz
Amperage Per Phase: 22.7 A
Decibel Rating: 75 dB(A)
Fuel Consumption: 1.67 L/h
Tank Capacity: 22 L
Start Type: Electric Start
Voltage Regulator: Yes
Oil Capacity: 1.6 L
Engine Displacement: 418 cc
Engine Model: JDP6000-LDE3NS
Total Running Time: 4–6 Hours
Features
Diesel Engine
Enclosed Design
Maximum Output: 5 000 W
Power Factor: 1
Horsepower: 13 HP
Engine Speed: 3 600 RPM
Ignition System: Transistorized Magneto
Oil Alert System
Expert Advice
When deciding on generator size, we recommend choosing a machine with 20% more capacity than required. This helps prevent overloading and extends the lifetime of the unit.
Important Notes
An electrician is required to conduct a load-test to ensure your decision is based on your needed amperage per phase.
Generators are designed to run at 80% of maximum output at sea level and in neutral climates. Altitude and temperature can reduce engine efficiency.
Limitations of Use:
Do not use more than 50% of your generator’s rated load for the first step load.
Do not use more than 75% of the rated load for continuous running.
These limitations help accommodate power spikes and drops that occur during combustion.
