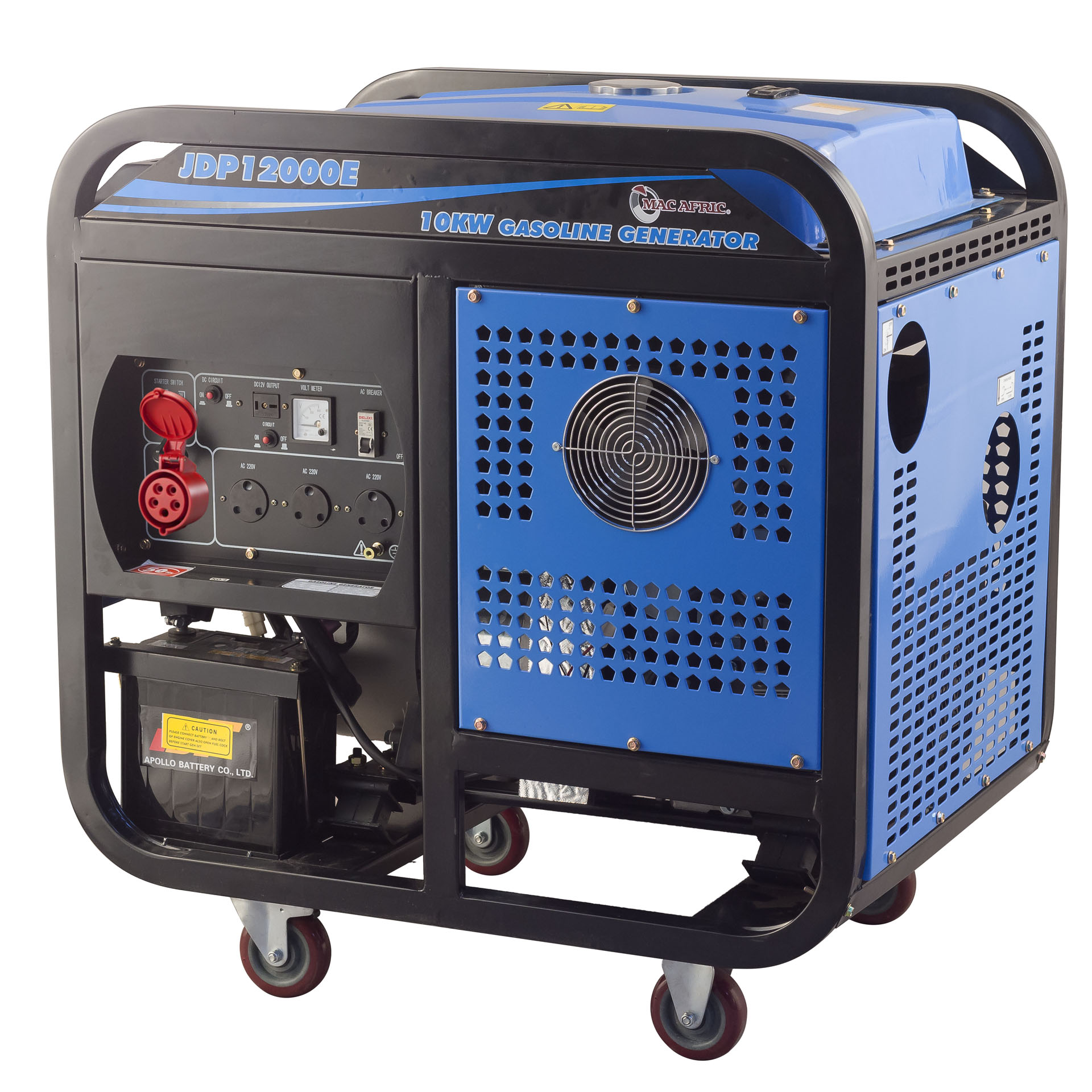

MAC AFRIC 12.5 kVA (10 KW) Standby Petrol Generator (380V)
This Three-phase generator is more than enough, it boasts a sturdy movable frame that is fan-cooled and fitted with an electric start. Suitable for small three-phase workshops or small businesses.
Description
Technical Specifications
Generator Type: Open Frame
Power Output: 10 kW (12.5 kVA)
Output Voltage: 380 V (Three‑Phase) @ 50 Hz
Amperage: 18 A Per Phase
Decibel Rating: 75 dB(A)
Fuel Consumption: 4.06 L/PH @ Full Load
Type: Petrol Powered
Tank Capacity: 46 L
Start Type: Electric Start
Voltage Regulator: Yes (AVR)
Oil Capacity: 2 L
Engine Displacement: 678 cc
Engine Model: JDP1200E
Total Running Time: 4–6 Hours
Specifications Notification
Generators are rated to run at 80% of their maximum output at sea level in a neutral climate. Altitude and temperature can reduce engine efficiency and power output.
Expert Advice
Select a generator with at least 20% more capacity than your estimated need to avoid overloading and extend its lifespan.
Specifications Description
An electrician should conduct a load test to confirm compatibility for the required 18 A per phase.
Limitations of Use:
Do not exceed 50% of the generator’s rated load for the first-step load.
Do not exceed 75% of the generator’s rated load for the running load.
These guidelines account for natural current spikes or drops during petrol combustion.
