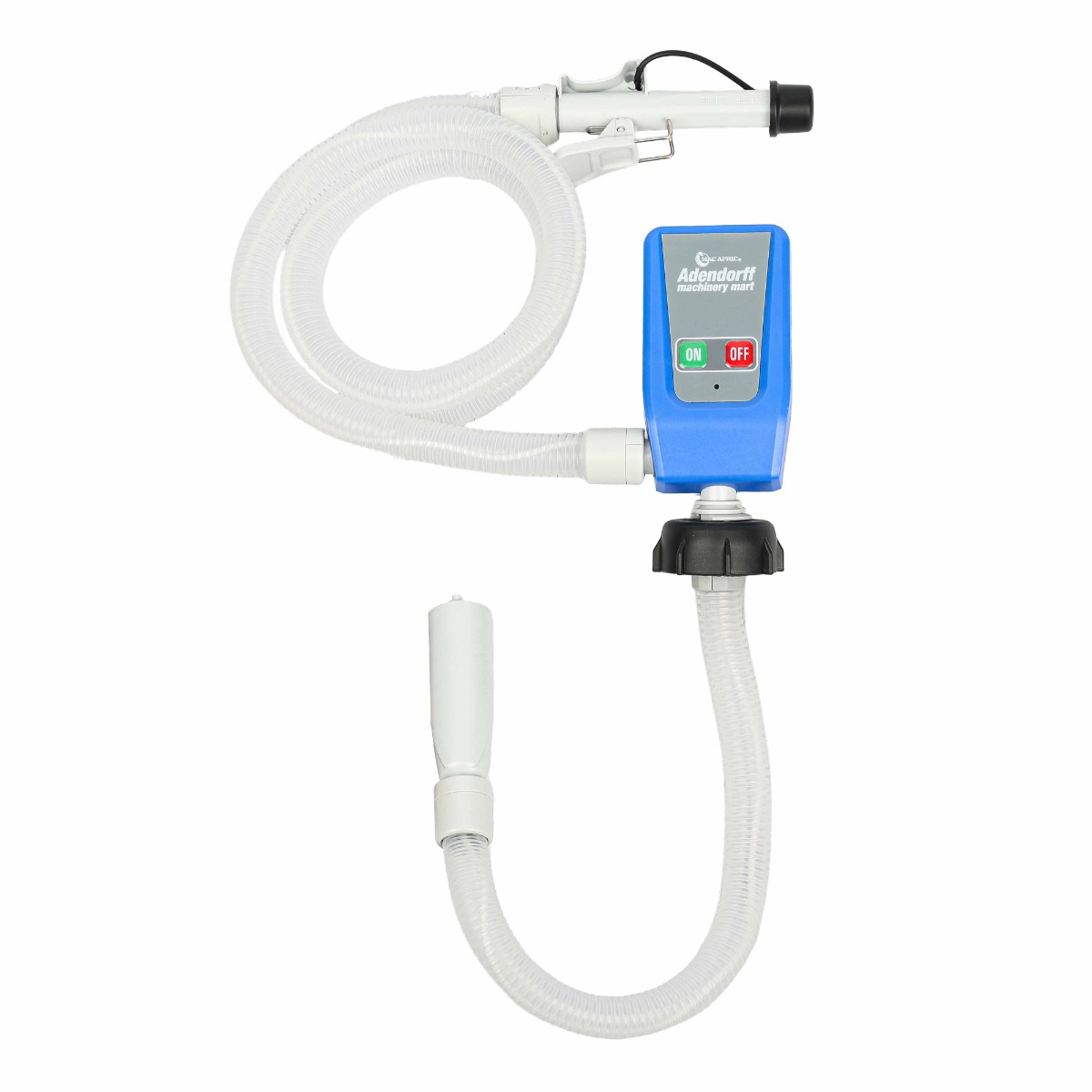

3.2GPM AUTO NOZZLE BATTERY POWERED FUEL TRANSFER PUMP

Description

Technical Specifications

Nominal Flow Rate: 12 L/min
Voltage (Battery Mode): 3 V DC
Recommended Battery Size: AA
Voltage (DC Mode): 12 V DC
Current Draw (DC Mode): 0.8 A
Rated Power: 10 W
Maximum Lift Height: 2.5 m
Maximum Delivery Head: 2.5 m
Hose Length (Suction): 480 mm
Hose Length (Discharge): 1300 mm
IP Rating: IP68
Duty Cycle: 30 min ON / 5–10 min OFF
Operating Temperature: 5 °C to 40 °C
Weight: 0.8 kg
Recommended Battery Size: AA
Key Features
Compact and lightweight design at only 0.8 kg
Dual power options: 3 V battery mode or 12 V DC operation
Efficient flow rate of 12 L/min for light transfer applications
Maximum lift and delivery head of 2.5 m
IP68 rating for water-resistant and submersible use
Low power consumption at 10 W
Flexible hose lengths for easy setup and operation
Designed for intermittent use with a 30 min duty cycle
