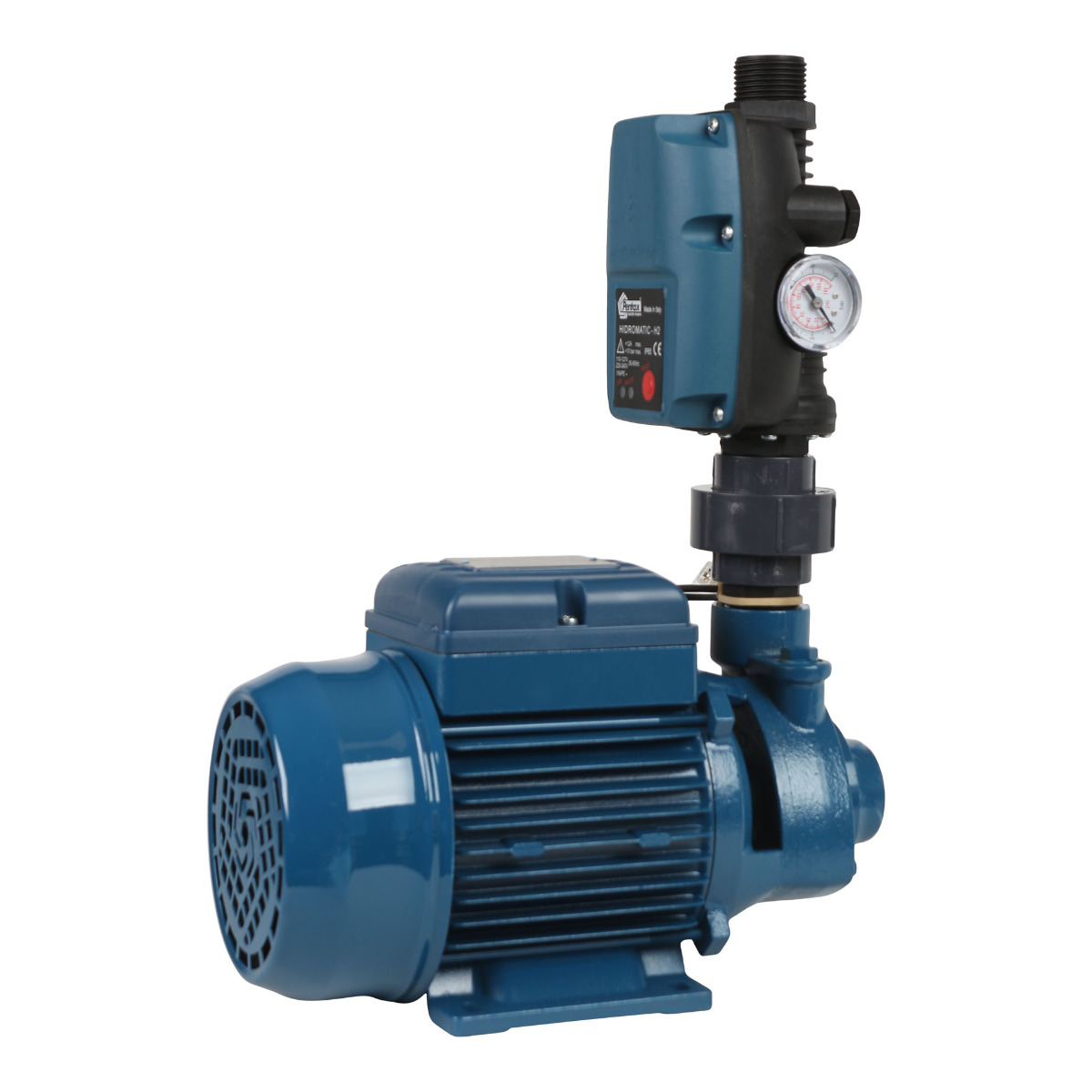

PENTAX PM80 0.74KW 230V BOOSTER PUMP WITH HIDROMATIC H1

Description

Construction Features

Pump Body: Cast iron
Motor Bracket: Cast iron
Impeller: Brass
Mechanical Seal: Ceramic-graphite-NBR
Motor Shaft: Stainless steel AISI 416
Liquid Temperature: 0 – 90 °C
Operating Pressure: Max 8 bar
Maximum Flow Rate: 50 L/min (3 m³/h)
Maximum Head: 65 m
Motor Specifications

Type: Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection)
Insulation Class: F
Protection Degree: IPX4
Amperage: 5.2 A
Power Output: 0.74 kW (1 HP)
Dimensions

Inlet Size: 1″ G
Outlet Size: 1″ G
Hydromatic Specifications

Voltage: 110 – 230 V AC ±10% 50/60 Hz
Max. Rated Current: 12 A
Starting Pressure Range: 1 – 3.5 bar
Max Pressure: 10 bar (145 PSI)
Protection Degree: IP65
Max. Fluid Temperature: 55°C
Max. Ambient Temperature: 55°C
