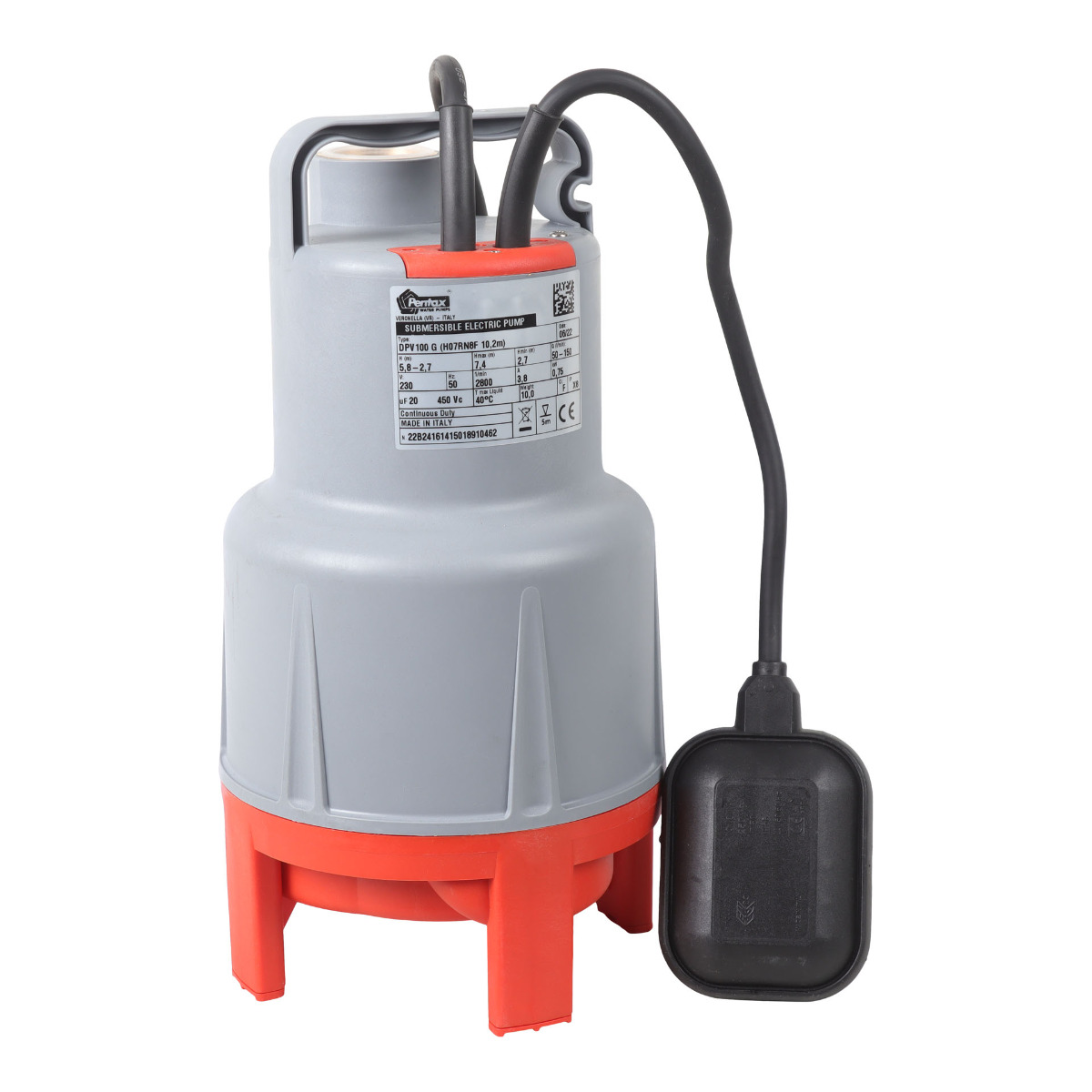

PENTAX DPV100G 750W 230V Submersible Drainage Pump (With FLOAT)

Drainage pump for emptying pits and cisterns, for gardening; completely constructed in anticorrosive material; brass insert on the delivery opening.

SKU: HPUMPS600 Category: Pumps Range

Description
Reviews (0)

Description

Technical Specifications
CONSTRUCTION FEATURES
Pump Body: polypropylene
Impeller: noryl®
Mechanical Seal: double lip seal on ceramic bush
Motor Shaft: stainless steel AISI 416 with ceramic bush
Free Passage: Ø max 15mm
Max Submergence: 5m
Liquid Temperature: 0 – 40 °C
Cable: H07 RN8F, 10m
G: float switch
Maximum Flow Rate: 150 l/m (9m³/h)
Maximum Head: 7,4m
Water Quality: white water
MOTOR
Two Poles Induction Motor: 1~ 230V-50Hz (with thermal protection)
Insulation Class: F
Protection Degree: IPX8
Amperage: 3,8 A
Power Output: 750W
DIMENSIONS
Outlet Size: 1 1/4″ G
