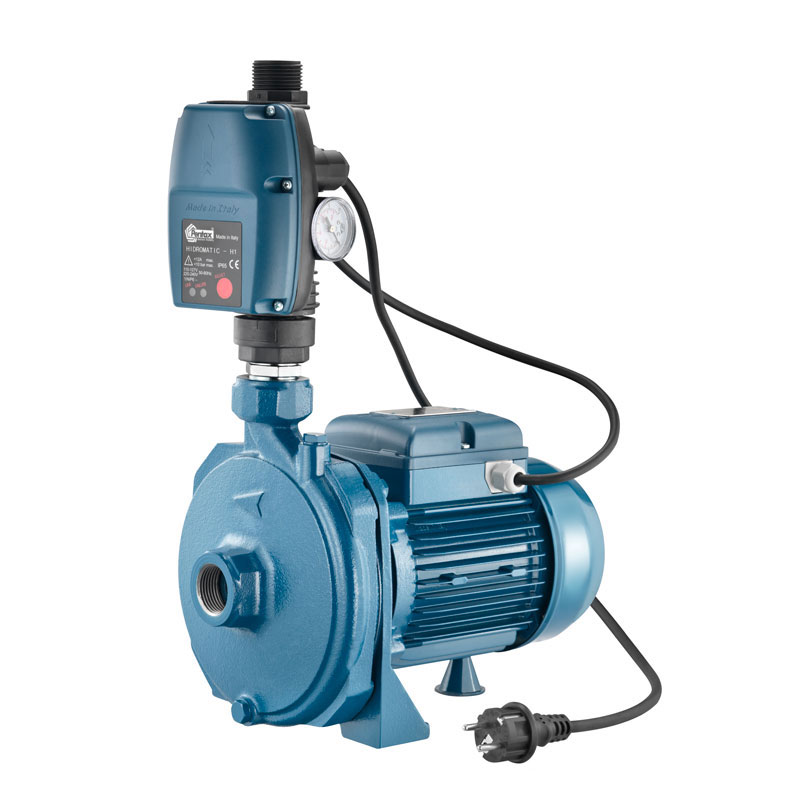

PENTAX CM100V 0.74kW 230V Booster Pump with Hidromatic H1 (Electronic Flow Control)

Single impeller centrifugal pumps, extremely silent sui­table for household, civil and industrial applications, with a very flat curve to guarantee constant pressure even when the delivery.

SKU: HPUMPP002 Category:

Description

Technical Specifications

Pump Body: Cast iron
Motor Bracket: Aluminum
Impeller: Noryl®
Mechanical Seal: Ceramic-graphite-NBR
Motor Shaft: Stainless steel AISI 416
Liquid Temperature: 0 – 50 °C
Operating Pressure: Max 6 bar
Maximum Flow Rate: 90 L/min (5.4 m³/h)
Maximum Head: 30 m
Motor Specifications

Type: Two Poles Induction Motor 1~ 230V-50Hz (with thermal protection)
Insulation Class: F
Protection Degree: IPX4
Amperage: 4.6 A
Power Output: 0.74 kW (1 HP)
Dimensions

Inlet Size: 1″ G
Outlet Size: 1″ G
Hidromatic Specifications

Voltage: 110 – 230 V AC ±10% 50/60 Hz
Max. Rated Current: 12 A
Starting Pressure Range: 1 – 3.5 bar
Max Pressure: 10 bar (145 PSI)
Protection Degree: IP65
Max. Fluid Temperature: 55°C
Max. Ambient Temperature: 55°C
