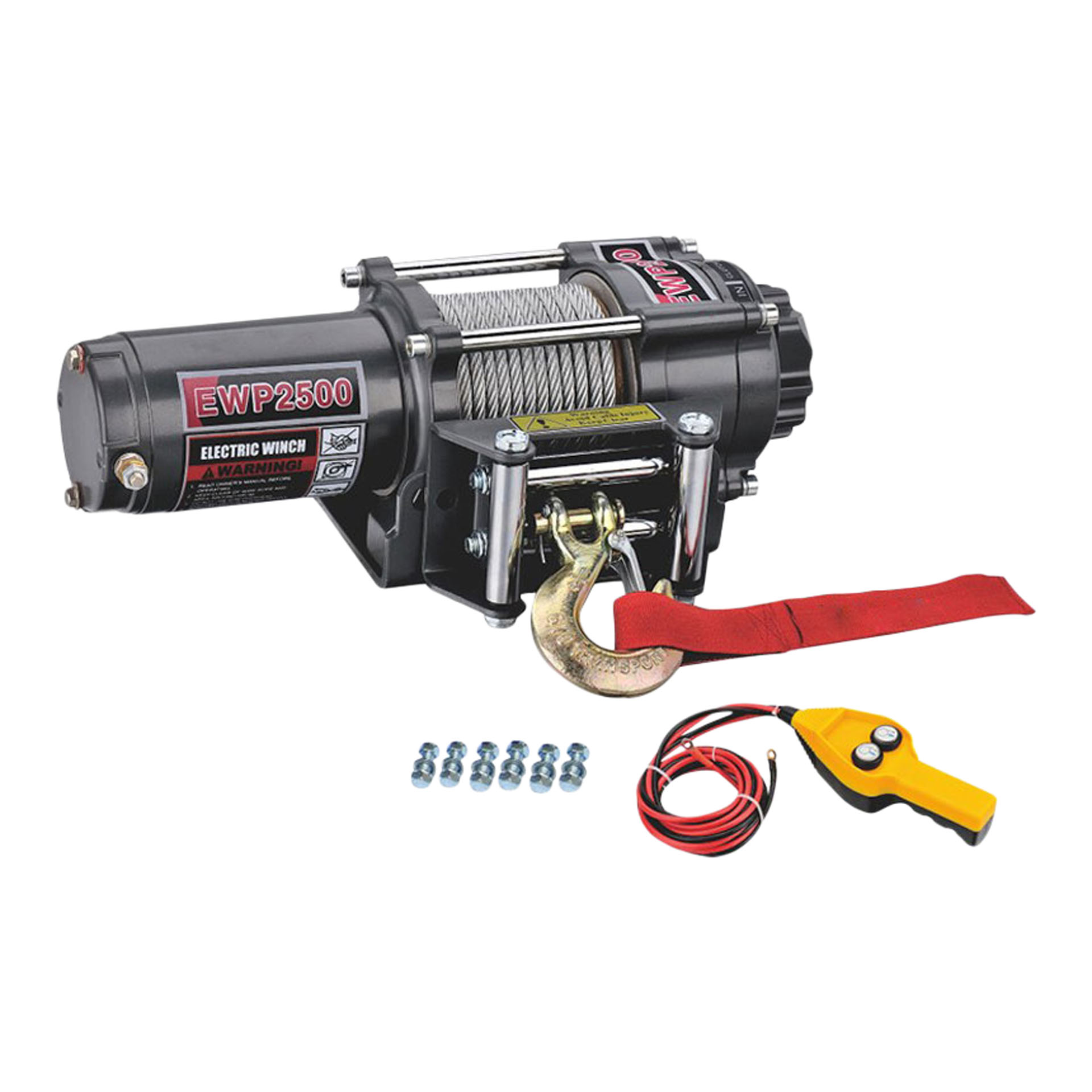

MAC AFRIC EWP 2500D 12V ATV Winch
The powerful MAC AFRIC EWP2500D compact winch is ideal for smaller vehicles such as ATV or a trailer. This model has a permanent magnetic motor and free spooling clutch. Supplied with a two-way remote and fair lead.
Description
Technical Specifications
Rated Line Pull: 3 500 lbs (1588 kgs)
Motor Specifications: 12 V: Input: 2.4 KW / 3.2 HP; Output: 1 KW / 1.3 HP
Gear Reduction Ratio: 170:1
Cable Length: 12.8 M (42)
Cable Diameter: 5.4 MM (7/32)
Mounting Bolt Pattern: 3.13″ (79.5 mm), 2-M8
Mounting Dimensions: 12.4 x 7.6 MM (0.489″ x 0.3″)
Performance Table – Line Pull, Speed & Current
Line Pull
(lbs / kgs)Line Speed
ft/min (m/min)Current
(12 V DC)
0 (0): 10.5 (3.2): 16 A
1000 (454): 8.9 (2.7): 40 A
2000 (907): 7.5 (2.3): 75 A
3500 (1588): 4.6 (1.4): 120 A
Rope Capacity by Layer
LayerRated Line Pull
lbs (kgs)Total Rope on Drum
ft (m)
1: 3500 (1588): 5.9 (1.8)
2: 2789 (1265): 13.5 (4.1)
3: 2319 (1052): 22.0 (6.7)
4: 1984 (900): 31.2 (9.5)
5: 1733 (786): 42.0 (12.8)
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips
These figures apply to rolling loads (not dead weight or dragging).
Ensure proper use of snatch blocks or pulley systems for higher loads.
Regularly inspect your winch and recovery gear for safety.
