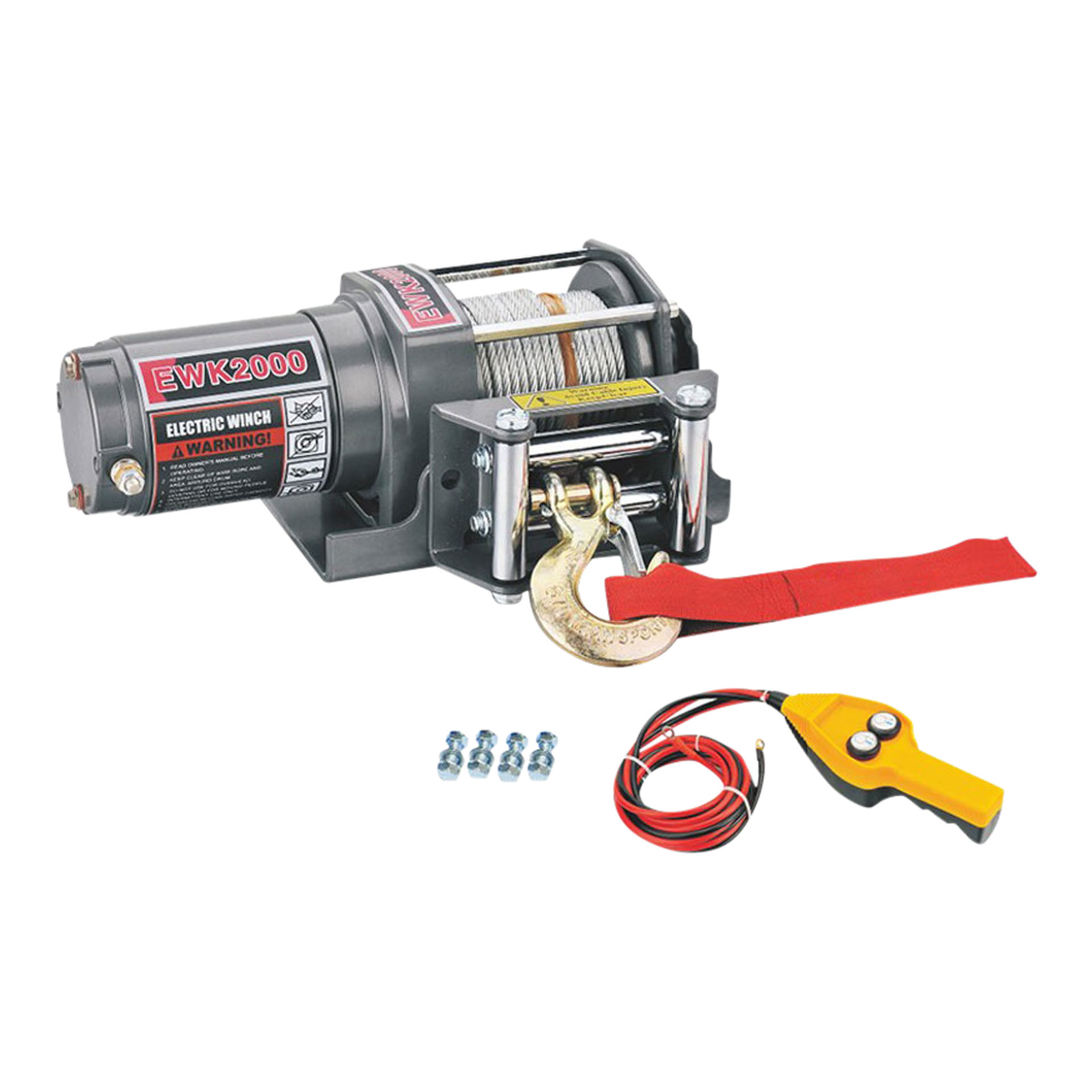

MAC AFRIC EWK 2000D 12V Winch
Introducing the MAC-AFRIC EWK 2000D 12V Winch – your reliable companion for heavy-duty hauling and recovery! With a robust 12V motor, a high pulling capacity, and rugged construction, this winch is built to handle tough tasks with ease, making it the ideal choice for off-road adventures, recovery missions, and more. Conquer challenging terrains and tackle demanding situations confidently with the MAC-AFRIC EWK 2000D 12V Winch by your side!
Description
Technical Specifications
Rated Line Pull: 2 000 lbs (907 kgs)
Motor Type: Permanent Magnet
Motor Specifications: 12V: Input: 1.7 KW / 2.3 HP; Output: 0.6 KW / 0.8 HP
Gear Reduction Ratio: 153:1
Cable Length: 15 M (5/32″ IN)
Cable Diameter: 4 MM (5/32″ IN)
Mounting Bolt Pattern: 3.13″ (79.5 mm); 2-M8
Mounting Dimensions: 7.8 MM (0.307″ IN)
Line Speed: 1 – 3.2 M/MIN
Performance Table – Line Pull, Speed & Current
Line Pull
(lbs / kgs)Line Speed
ft/min (m/min)Current
(12 V DC)
0 (0): 10.5 (3.2): 75 A
500 (227): 9.2 (2.8): 25 A
1000 (454): 7.5 (2.3): 40 A
1500 (680): 5.9 (1.8): 60 A
2000 (907): 3.3 (1.0): 90 A
Rope Capacity by Layer
LayerRated Line Pull
lbs (kgs)Total Rope on Drum
ft (m)
1: 2000 (907): 6.6 (2.0)
2: 1630 (739): 14.1 (4.3)
3: 1380 (626): 22.3 (6.8)
4: 1190 (540): 31.2 (9.5)
5: 1050 (476): 41.0 (12.5)
6: 940 (426): 49.2 (15.0)
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips:
These figures apply to rolling loads (not dead weight or dragging).
Ensure proper use of snatch blocks or pulley systems for higher loads.
Regularly inspect your winch and recovery gear for safety.
