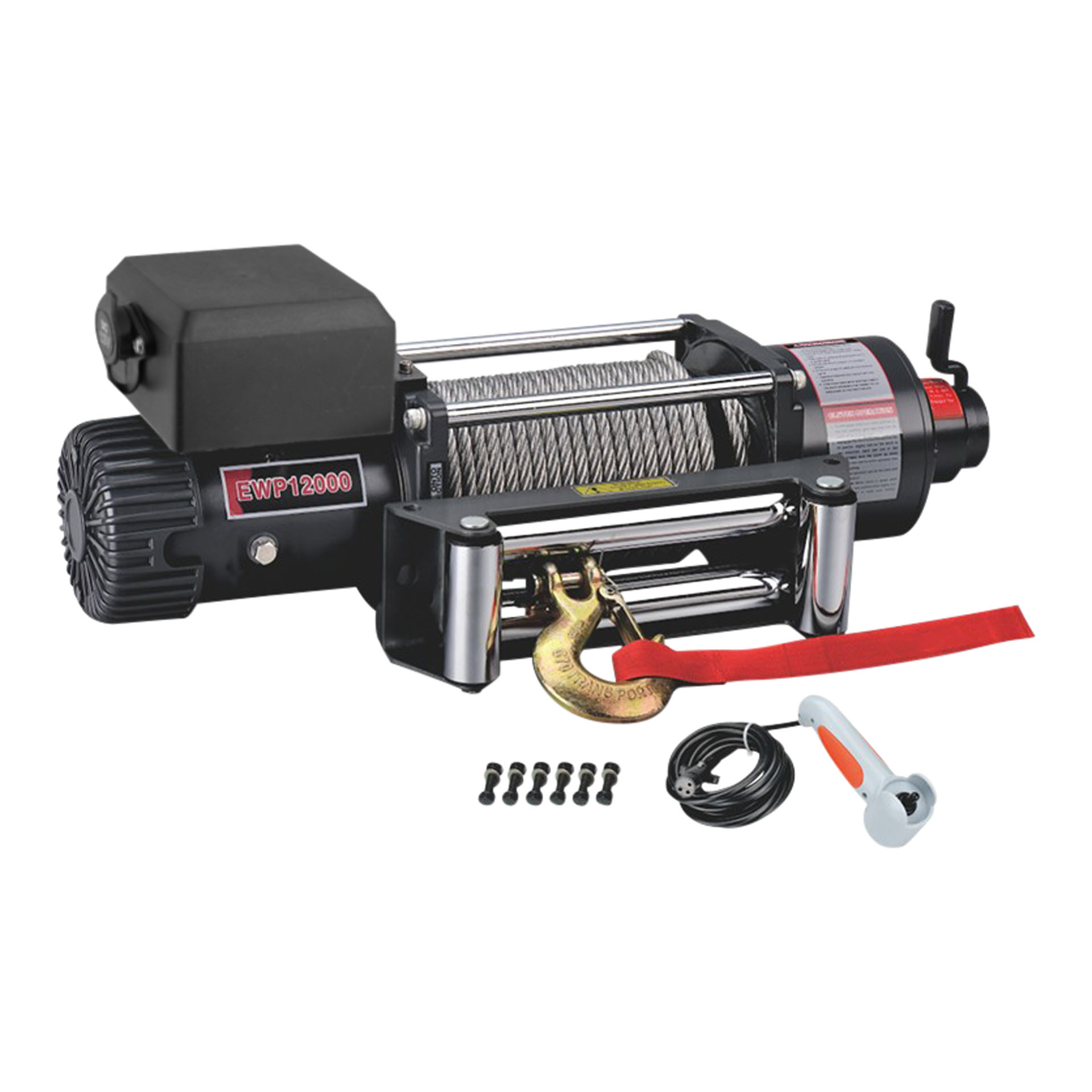

MAC AFRIC EWP 12000U 12 V Heavy Duty Winch

Description

Winch Specifications

Rated Line Pull: 5 443 KG (12 000 LBS) @ 4.9 M
3 084 KG (6 800 LBS) @ 25.5 M
Motor Type: Series Wound
Motor Specifications: 12V: Input: 5.4 KW / 7.2 HP; Output: 2.7 KW / 3.6 HP
Motor Displacement: N/A
Gear Reduction Ratio: Low Speed: 230:1
High Speed: 34.5:1
Cable Length: 25.5 M (83.7″ IN)
Cable Diameter: 10.2 MM (13/32″ IN)
Mounting Bolt Pattern: 254 x 114.3 MM (10″ x 4.5″ IN); 4-M10
Mounting Dimensions: 25.4 x 11.4 MM
Pressure: N/A
Drum Size (Dia x L): 63 x 223 MM (2.5″ IN x 8.8″ IN)
Oil Flow: N/A
Line Speed: Low: 1.6–6 M/MIN
High: 9.4–36.3 M/MIN
Technical Manual
Key Points:
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
When using a hydraulic winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Rolling Load Capacity Guide – Vehicle-Mounted Hydraulic Winches
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
2500 lb: 2500 / 1134: 1167 / 756: 1255 / 569: 850 / 386: 653 / 296: 465 / 211: 383 / 174: 323 / 147
3500 lb: 3500 / 1588: 2335 / 1059: 1757 / 797: 1190 / 540: 914 / 415: 651 / 295: 536 / 243: 452 / 205
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips
These figures apply to rolling loads (not dead weight or dragging).
Ensure proper use of snatch blocks or pulley systems for higher loads.
Regularly inspect your winch and recovery gear for safety.
Pull, Speed, Amperes, Volts (First Layer)
Line Pull
lbs (kgs)
Line Speed
ft/min (m/min)
Current
(A @ 12 V DC)
0 (0): 19.7 (6.0): 80
4000 (1814): 11.5 (3.5): 245
7000 (3175): 9.2 (2.8): 300
10000 (4536): 7.2 (2.2): 400
12000 (5443): 5.2 (1.6): 450
Line Pull and Rope Capacity per Layer
Layer
Rated Line Pull
lbs (kgs)
Total Rope on Drum
ft (m)
1: 12000 (5443): 16.1 (4.9)
2: 9562 (4337): 36.4 (11.1)
3: 7948 (3605): 60.0 (18.3)
4: 6800 (3084): 83.7 (25.5)
Advantages of Series Wound Motors
High Starting Torque: Ideal for electric vehicles, locomotives, and heavy-duty machinery where strong initial torque is needed.
Robustness: Handles overloads and fluctuating loads well; reliable in harsh environments.
Simple Control: Easier to operate and maintain compared to permanent magnet motors.
Variable Speed Operation: Supports a wide speed range with appropriate control systems.
Cost-Effectiveness: Often more economical in large high-torque applications.
High Power Density: Compact and powerful — suitable for automotive and aerospace sectors.
Note: The optimal choice between series wound and permanent magnet motors depends on your specific application, cost requirements, efficiency goals, and environment.
