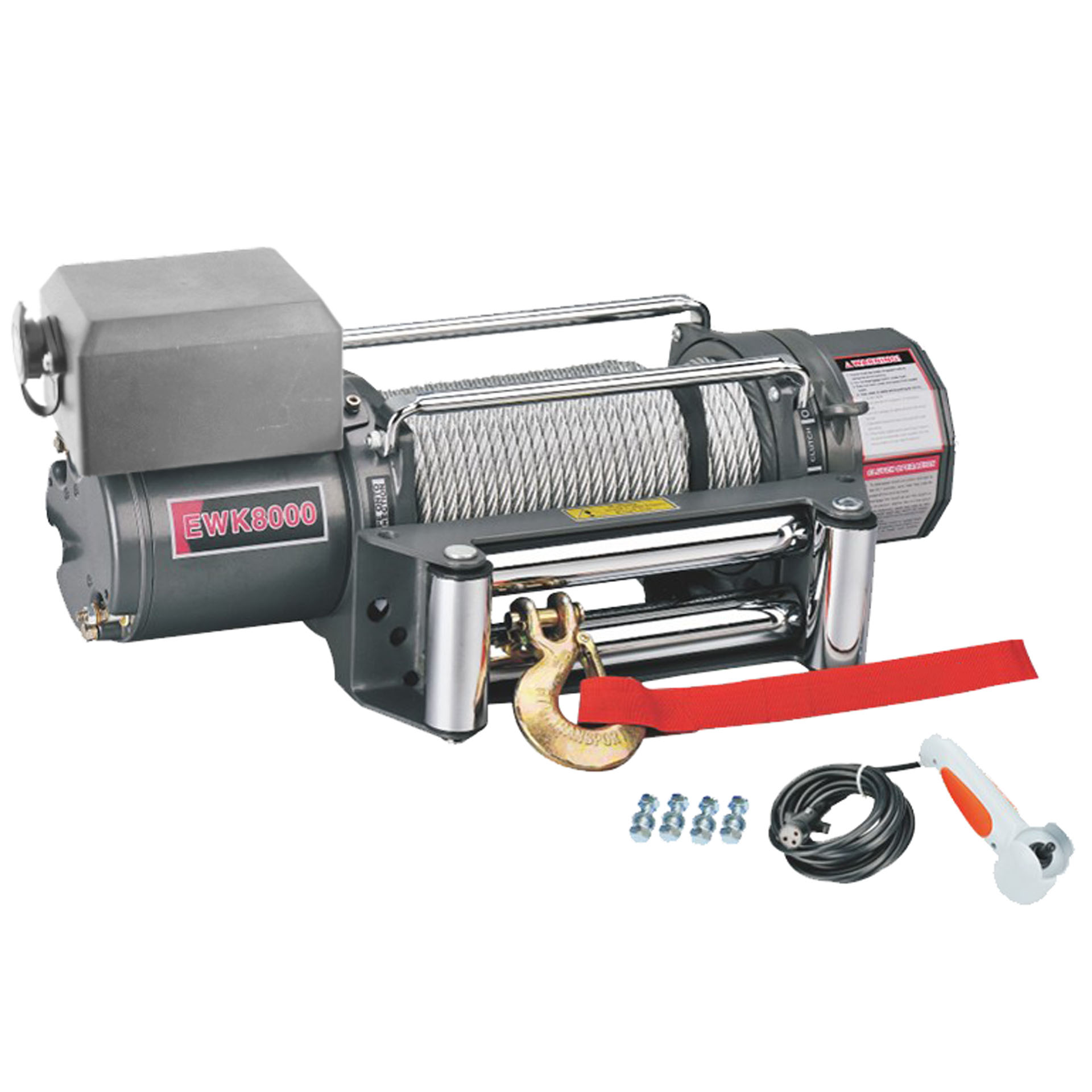

MAC AFRIC EWK 8000U 12 V Winch
Unleash the power of the MAC AFRIC EWK 8000U 12V Winch – your ultimate off-road partner for the most demanding challenges! With a staggering rated line pull of 3,620 kg (7,981 lb) at 6 meters and 2,170 kg (4,784 lb) at 29 meters, its durable permanent magnet motor delivers impressive performance in any situation. With a gear reduction ratio of 184:1 and a generous 29-meter cable length, this winch ensures you have the strength and reach to tackle the toughest terrains, making it an essential addition to your off-road arsenal.
Description
Technical Specifications
Rated Line Pull: 3 692 KGs (8000 lbs)
Motor Type: Permanent Magnet
Motor Specifications: 12V: Input: 4.2 KW / 5.5 HP; Output: 1.4 KW / 1.9 HP
Gear Reduction Ratio: 184:1
Cable Length: 29 M
Cable Diameter: 8.3 MM
Mounting Bolt Pattern: 10″ × 4.5″ (254 mm × 114.3 mm), 4-M10
Mounting Dimensions: 25.2 x 11.4 MM
Performance Table – Line Pull, Speed & Current
Line Pull
(lbs / kgs)Line Speed
ft/min (m/min)Current
(12 V DC)
0 (0): 13.8 (4.2): 26 A
2000 (907): 10.8 (3.3): 85 A
4000 (1814): 8.8 (2.7): 160 A
6000 (2722): 6.6 (2.0): 250 A
8000 (3629): 4.6 (1.4): 320 A
Rope Capacity by Layer
LayerRated Line Pull
lbs (kgs)Total Rope on Drum
ft (m)
1: 8000 (3629): 19.7 (6.0)
2: 6500 (2948): 42.7 (13.0)
3: 5500 (2495): 68.9 (21.0)
4: 4800 (2177): 95.1 (29.0)
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips:
These figures apply to rolling loads (not dead weight or dragging).
Ensure proper use of snatch blocks or pulley systems for higher loads.
Regularly inspect your winch and recovery gear for safety.
