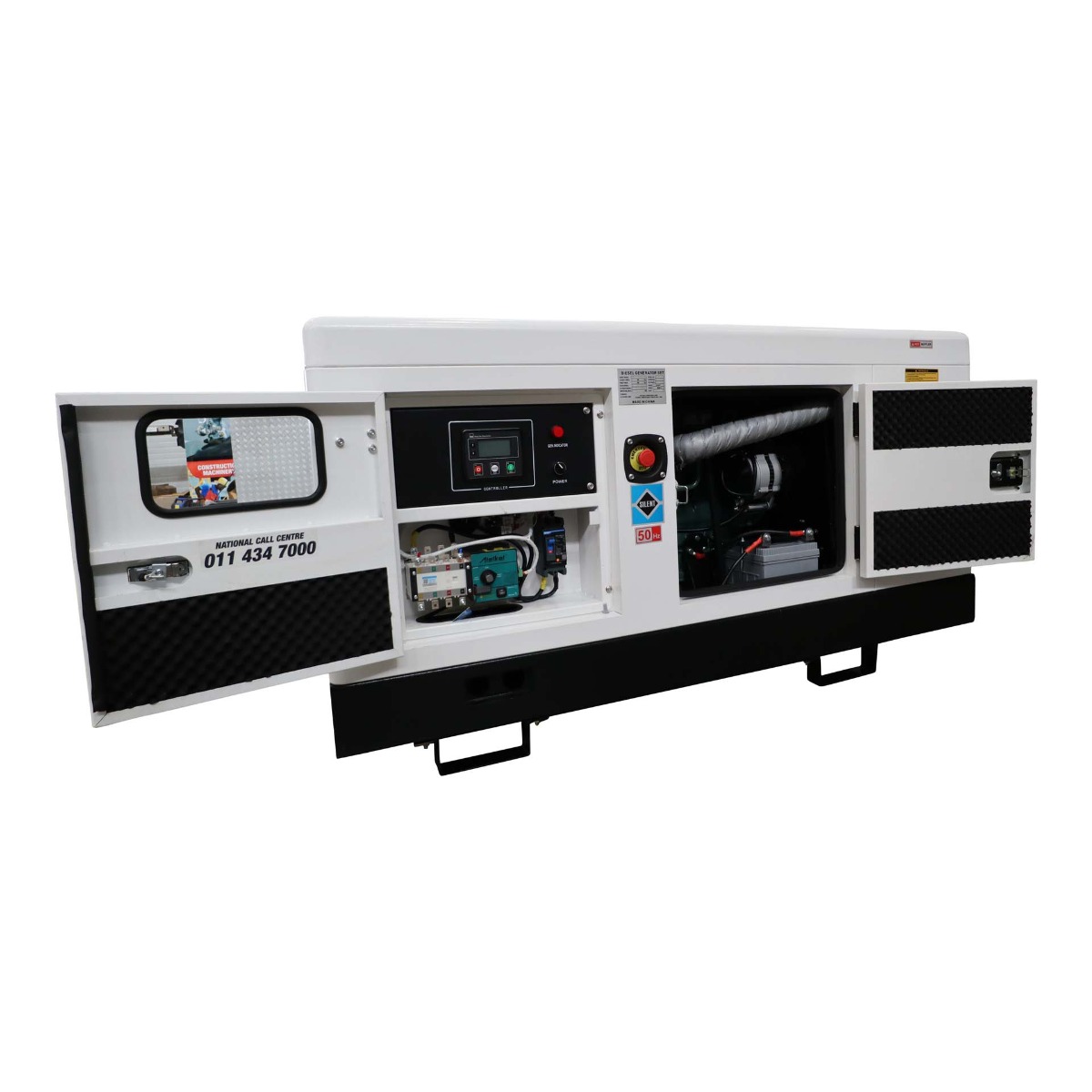

MAC AFRIC DPGP/20SA FAW Water Cooled 20kva Diesel Generator Set 20kva (380V)
Introducing the MAC AFRIC 20 kVA, powered by the FAW 4DW91-29D engine, delivering 20kVA Prime Power (PRP). This unit features a single bearing, self-excited, brushless AVR-controlled alternator and a Deepsea Manual/AMF Control Panel. It also includes an integrated ATS (Auto Transfer Switch) and many more features detailed below.
Description
General Specifications
Generator Type: Silent Type
Power Output: 16 kW / 20 kVA
Output Voltage: 380 V (Three Phase) @ 50 Hz
Type: Diesel Powered
Tank Capacity: 55 L
Start Type: Auto Electric Start (ATS)
Voltage Regulator: Yes (AVR)
Noise and Fuel Consumption
Sound Level: 75~80 dB within 1m; 72~75 dB within 7m
Fuel Consumption: 3 LPH @ 50%, 4.5 LPH @ 75%, 6 LPH @ 100%
Engine Specifications
Model: FAW 4DW91-29D
Speed: 1500 RPM
Prime / Standby Power: 21 kW / 23 kW
Cooling: Water-cooled
Aspiration: Naturally Aspirated
Displacement: 2.54 L
Bore x Stroke: 90 mm x 100 mm
Compression Ratio: 17:1
Alternator Specifications
Model: DAC 184J
Output Power: 20 kVA
AVR Model: SX460
Phase: 3 Phase 4 Wire
Voltage Regulation: ±1.0%
Control: Self Excited
Control Panel
Controller: Deep Sea 4520 AMF
Functions: Auto Start/Stop, Shutdown Alarms
Display: LCD showing Volts, Amps, Frequency, Runtime, Oil Pressure, RPM, Temp
Canopy and Frame
Type: Sound Attenuated, Modular
Material: Powder Coated Mild Steel
Insulation: Flame-retardant foam (40mm to 100mm)
Baseframe: Heavy Duty Steel with Day Tank
