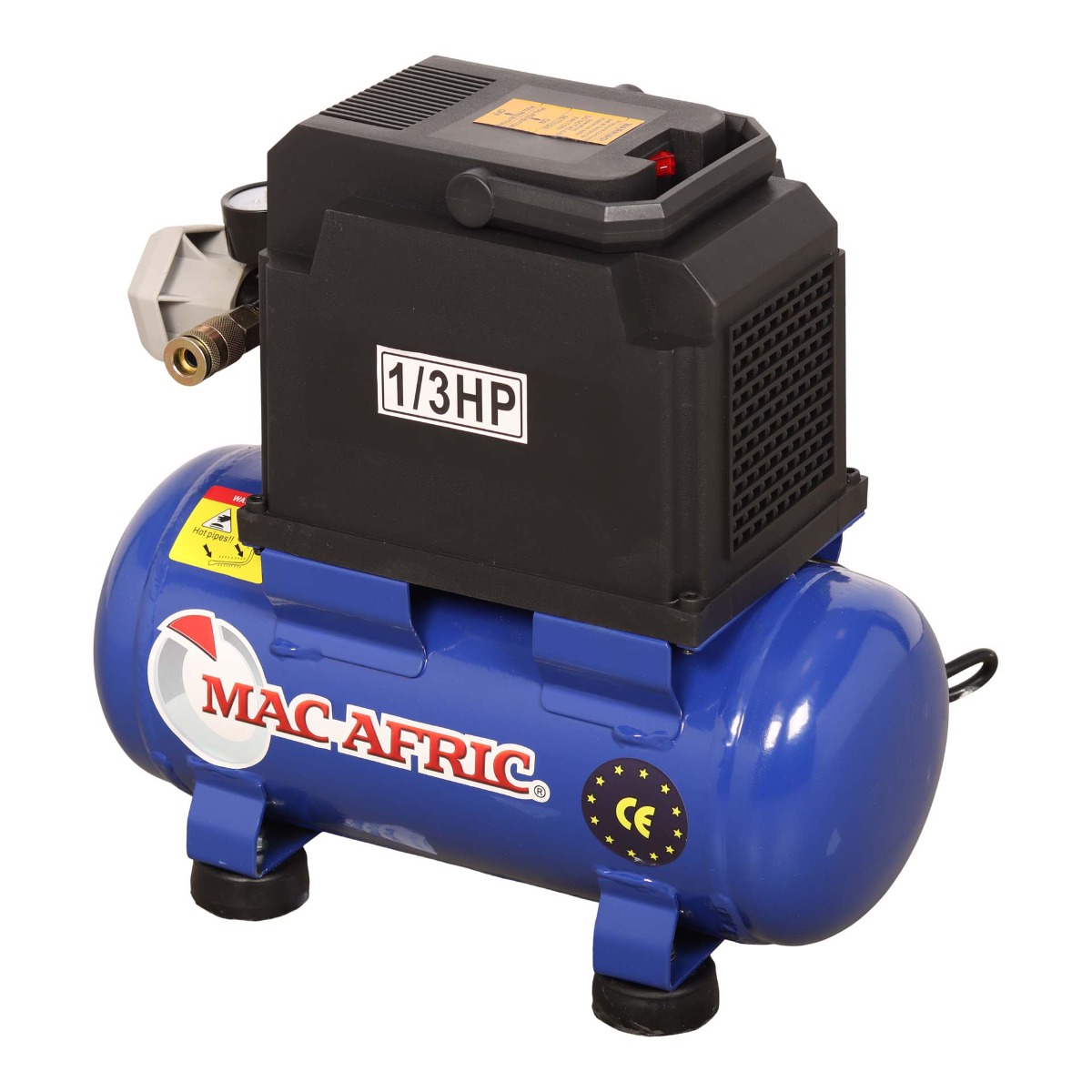

MAC AFRIC 6 Litre 0.33 KW (1/3 HP) 230 V Oil Free Air Compressor

This Air Compressor is compact and low on maintenance and also oil-free. It is designed with a powerful 0.33kw motor with a maximum working pressure of 8 bar (116 PSI). This is perfect for DIY and for commercial applications. It is very light weighted so easy to carry around thanks to the convenient handle.

SKU: COMPRE005 Category: Air Compressor Range

Description
Reviews (0)

Description

Technical Specifications
Feature
Specification
Customer Model No.: COMPRE-005
Jonway Model No.: EWD1/3-2
Voltage: 230 V / 50 Hz / 2-Pole
Maximum Pressure: 7 Bar
Motor Output: 1/3 HP
Air Flow: 32 L/min
Motor Speed: 2,850 rpm
Tank Capacity: 6 L
Tank Material: Steel
Compressor Type: Silent Oil-Free
Noise Level: 72 dB
Working Life: 300 Hours
Expert Advice
The compressor has a 40% duty cycle. It should run for no more than 4 minutes during every 10-minute cycle.
Drain the compressor tank after each use to prevent moisture build-up and internal contamination.
Do not operate the compressor using an electrical extension cord, as voltage drops may damage the motor.
Position the compressor in a clean, dry and well-ventilated area during operation.
Troubleshooting Guide
Problem
Possible Cause
Solution
Compressor Will Not Start: Power supply issue or faulty switch: Check the power cable and wall socket. Replace the switch if faulty.
Low Air Pressure: Air leak, loose connection or worn seal: Inspect all connections for leaks and replace damaged seals.
Compressor Overheats: Operating beyond the recommended duty cycle: Switch off the compressor and allow it to cool before continuing.
Excessive Noise or Vibration: Loose components or an uneven working surface: Tighten loose fasteners and place the compressor on a stable, level surface.
Moisture in the Air Supply: Condensation has collected inside the tank: Drain the tank after each use and consider installing an air filter or moisture trap.
Frequently Asked Questions
Does this compressor require oil changes?
No. This is an oil-free compressor designed for minimal maintenance.
What applications is this compressor suitable for?
It is suitable for light-duty applications such as inflation, airbrushing, cleaning and operating small, low-air-consumption pneumatic tools.
Can it operate a spray gun?
It may operate small, low-consumption spray guns for brief periods. It is not recommended for professional or continuous spray-painting applications.
How long can the compressor run continuously?
The compressor has a 40% duty cycle. It should run for no more than 4 minutes and then rest for at least 6 minutes during every 10-minute cycle.
How loud is the compressor?
The compressor has a rated noise level of approximately 72 dB under normal operating conditions.
How often should the tank be drained?
The tank should be drained after every use to remove accumulated moisture and help prevent corrosion.
