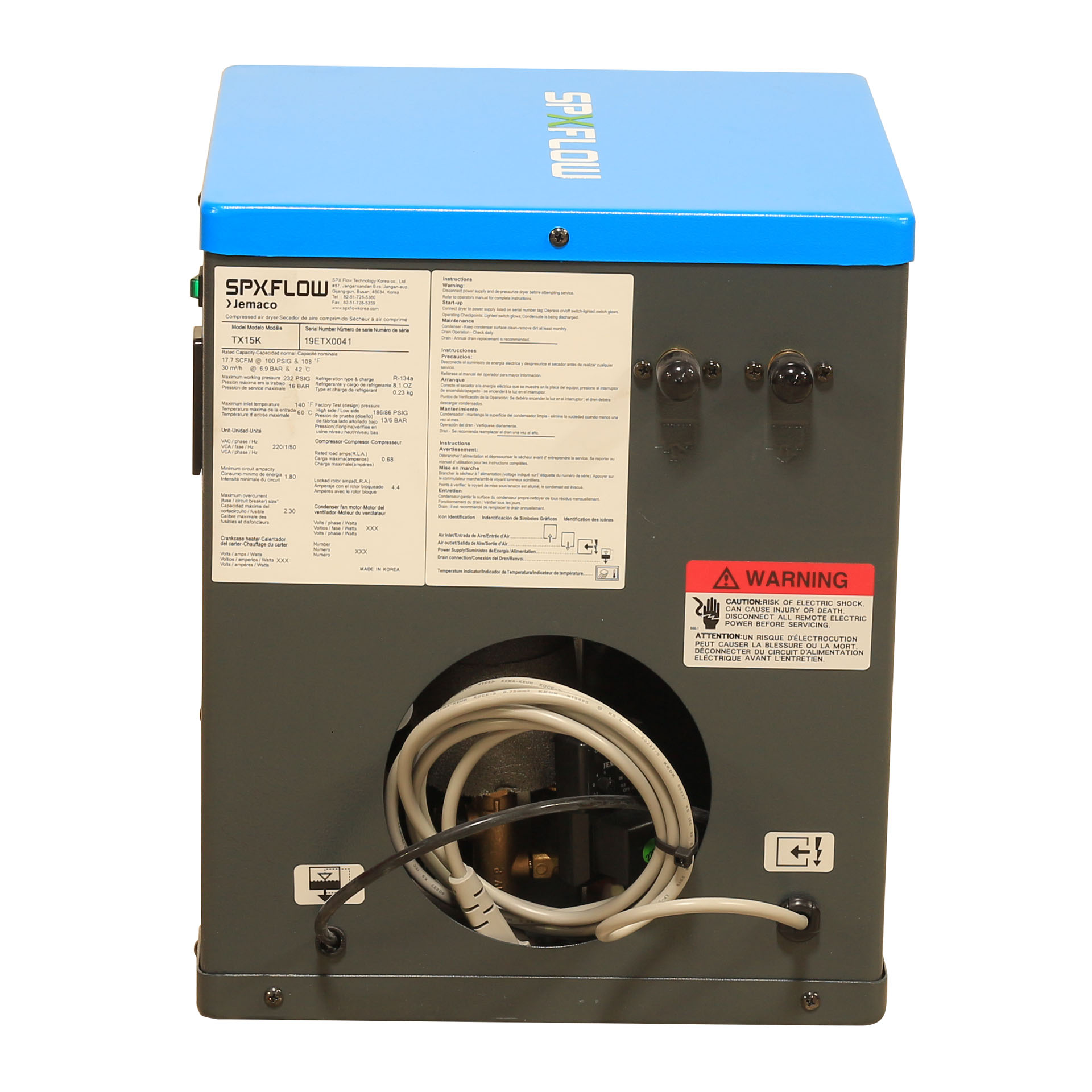

Jemaco Air Dryer (TX15K)
These dryers use mechanical refrigeration to dry compressed air. These dryers use refrigeration to condense water vapor out of the air stream. The TX air dryer has a very unique heat exchange system, the cold air leaving the air dryer will be warmer than the incoming cold air. This is normal and unlike any other dryer on the market.
Description
Technical Specifications
Model: TX15K Comprd015
FBW Capacity (Nm³/min): 0.50
Unit (kW): 0.24
Power Supply: 220–240 V / 1PH / 50 Hz
Inlet/Outlet Connections (PT): 3/8″
Weight (kg): 20
Dimensions (mm) (H × W × D): 382 × 320 × 320
Refrigerant: R-134a
Key Operating Conditions
Rating Conditions:
Inlet temperature: 42°C
Inlet pressure: 7.0 barG
Relative humidity: 100%
Ambient temperature: 35°C
Maximum/Minimum Inlet Pressure:
Max: 16 barG
Min: 2 barG
Maximum/Minimum Inlet Air Temperature:
Max: 60°C
Min: 1°C
Maximum/Minimum Ambient Air Temperature:
Max: 43°C
Min: 2°C
