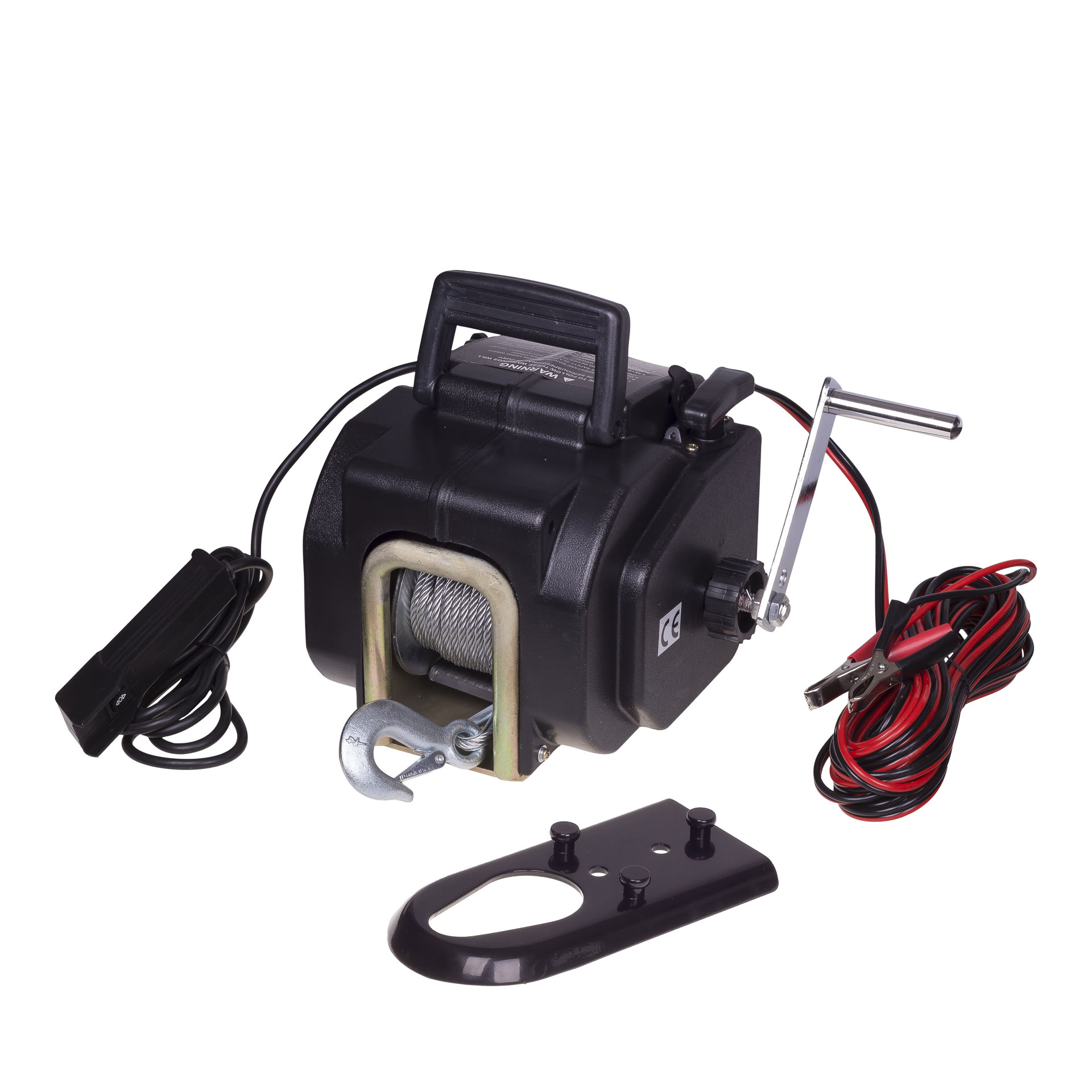

MAC AFRIC 5000 LBS Electric Winch with Wired Control

Description

Technical Specifications

Cable Length: 13 M
Cable Diameter: 6 MM
End Hook Sizes: 1/4″ IN
Specifications Description
Basic Winching: Top Tips
Access the situation from all angles before beginning to winch.
Stop, slow down, think through all of your recovery options.
Determine who is responsible for winching, rigging, and being recovered.
Understand your equipment and use the safest methods possible when extracting a vehicle.
Recognize nearby danger zones before using a winch.
Put some weight on the line using a winch damper, heavy backpack, or thick jacket on each winch line before winching. It’ll help force the line down toward the ground if the rope were to break.
If the winch line is under tension, meaning it’s taut and ready to pull or is already pulling, never step over it. Picture a line snapping while you’re standing on top of it! Enough said.
If you’re winching a vehicle out of harm’s way, operate it from a safe distance or with you behind your vehicle’s open door or inside the vehicle itself. If the winch line or rigging breaks, your vehicle would take the damage rather than you.
If using an open-looped system (i.e., a hook), always remember to “hook up” the winch’s hook with the opening pointing upward. This will help the winch line fall to the ground instead of through the air should a rope failure occur.
Technical Manual
Rolling Load Capacity Guide – 12V Vehicle-Mounted Winches
When using an electric winch, it’s essential to understand how slope inclines affect the winch’s effective pulling capacity. The chart below outlines the maximum rolling load each winch model can handle at various slope inclines.
The steeper the incline, the greater the resistance, reducing the winch’s effective pulling power.
Figures are based on rolling loads, such as vehicles or trailers on wheels.
Always ensure your winch is rated above the expected load for the slope you are operating on.
Model
0% (0°)
5% (3°)
10% (6°)
20% (11°)
30% (17°)
50% (26°)
70% (35°)
100% (45°)
8000 lb: 8000 / 3628: 5336 / 2420: 4016 / 1821: 2720 / 1233: 2088 / 947: 1488 / 675: 1224 / 555: 1032 / 468
10000 lb: 10000 / 4536: 6670 / 3025: 5020 / 2277: 3400 / 1542: 2610 / 1184: 1860 / 844: 1530 / 694: 1290 / 585
12000 lb: 12000 / 5443: 8004 / 3630: 6024 / 2732: 4080 / 1850: 3132 / 1420: 2232 / 1012: 1836 / 833: 1548 / 702
15000 lb: 15000 / 6804: 10005 / 4538: 7530 / 3415: 5100 / 2313: 3915 / 1776: 2790 / 1265: 2295 / 1041: 1935 / 878
Important Tips:
These figures apply to rolling loads (not dead weight or dragging).
Ensure proper use of snatch blocks or pulley systems for higher loads.
Regularly inspect your winch and recovery gear for safety.
