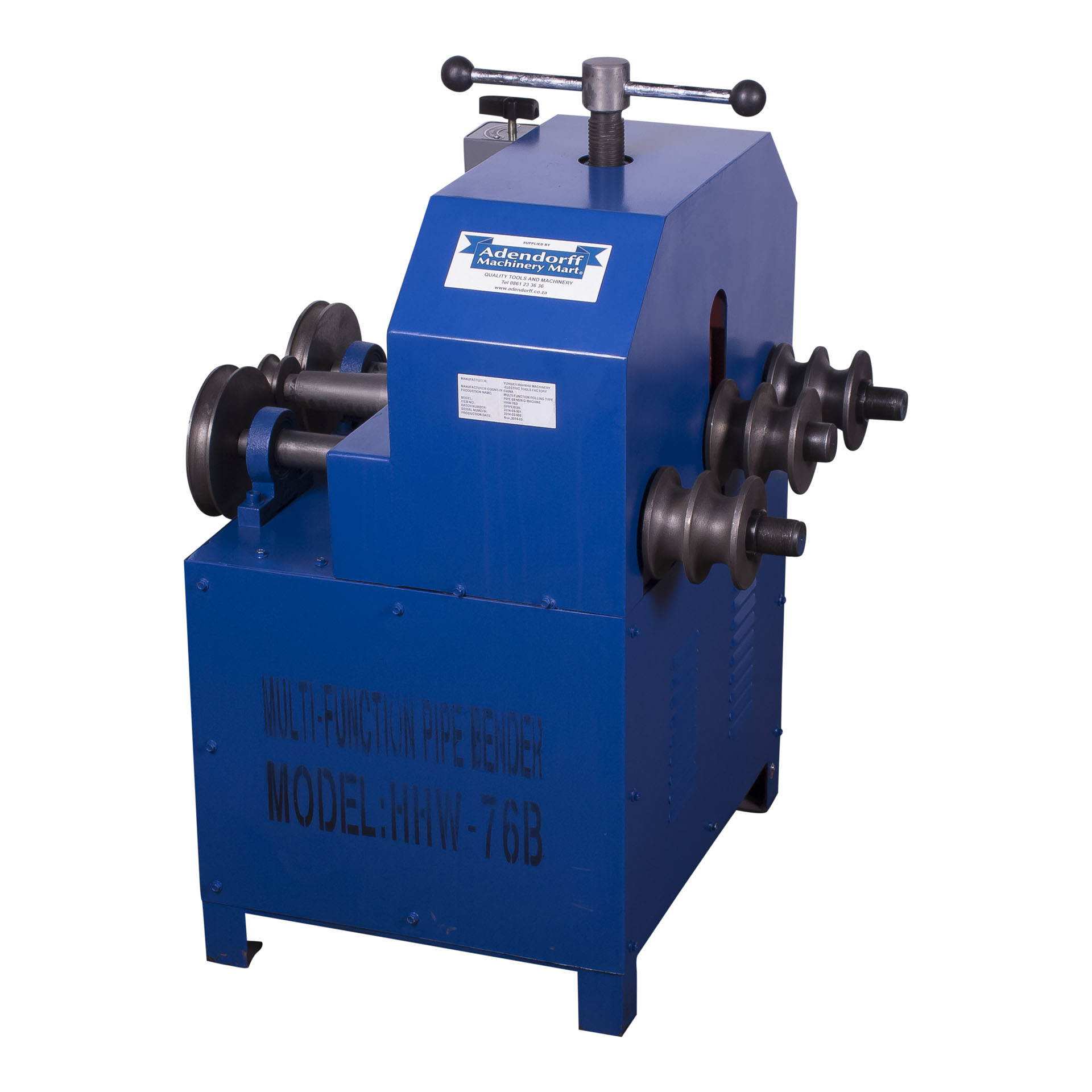

MAC AFRIC Multifunctional Electrical Round & Square Pipe Bender
With the ability to easily bend large diameters into full circles or arcs, this pipe bender is perfectly suited for constructing greenhouses or creating intricate metal frameworks. It works efficiently with stainless steel pipes, thick square pipes, and soft steel pipes, offering versatility for various project requirements.
Description
Technical Specifications
Voltage: 230 V @ 50 Hz
Wall Thickness of Pipe: 0.5 – 2 mm
Round Formers: 16, 19, 22, 25, 32, 38, 51, 63, 76 mm
Square Formers: 16, 19, 22, 25, 30, 38, 40, 50 mm
Bending Radius: 320 – 1520 mm
Motor: 220 V, 1.5 kW, 1400 RPM
Die Variations: Round: 16 & 63, 25 & 51, 32 & 38, 76 mm; Square: 30 & 50, 16 & 25 & 40
Recommended Wall Thickness (Stainless Steel / Mild Steel)
Tube TypeSize (mm)Wall Thickness
Round: 16: 0.5 / 0.8 mm
Round: 19: 0.8 / 1.0 mm
Round: 22: 1.0 / 1.2 mm
Round: 25: 1.0 / 1.2 mm
Round: 32: 1.2 / 1.5 mm
Round: 38: 1.5 / 1.5 mm
Round: 51: 1.5 / 1.8 mm
Round: 63: 2.0 / 2.3 mm
Round: 76: 2.0 / 2.3 mm
Square: 16: 0.5 / 0.8 mm
Square: 19: 0.8 / 1.0 mm
Square: 22: 1.0 / 1.2 mm
Square: 25: 1.0 / 1.2 mm
Square: 30: 1.2 / 1.5 mm
Square: 38: 1.5 / 1.5 mm
Square: 40: 1.5 / 1.8 mm
Square: 50: 1.5 / 1.8 mm
Additional Information
Hand-Adjustable Shafts: Two main shafts and one driven shaft adjustable by hand for precision and versatility.
Large Diameter Bending: Ideal for circular or arc bends with diameters at least 20× the pipe diameter.
Custom Die Options: Special steel dies ensure long service and consistent performance.
