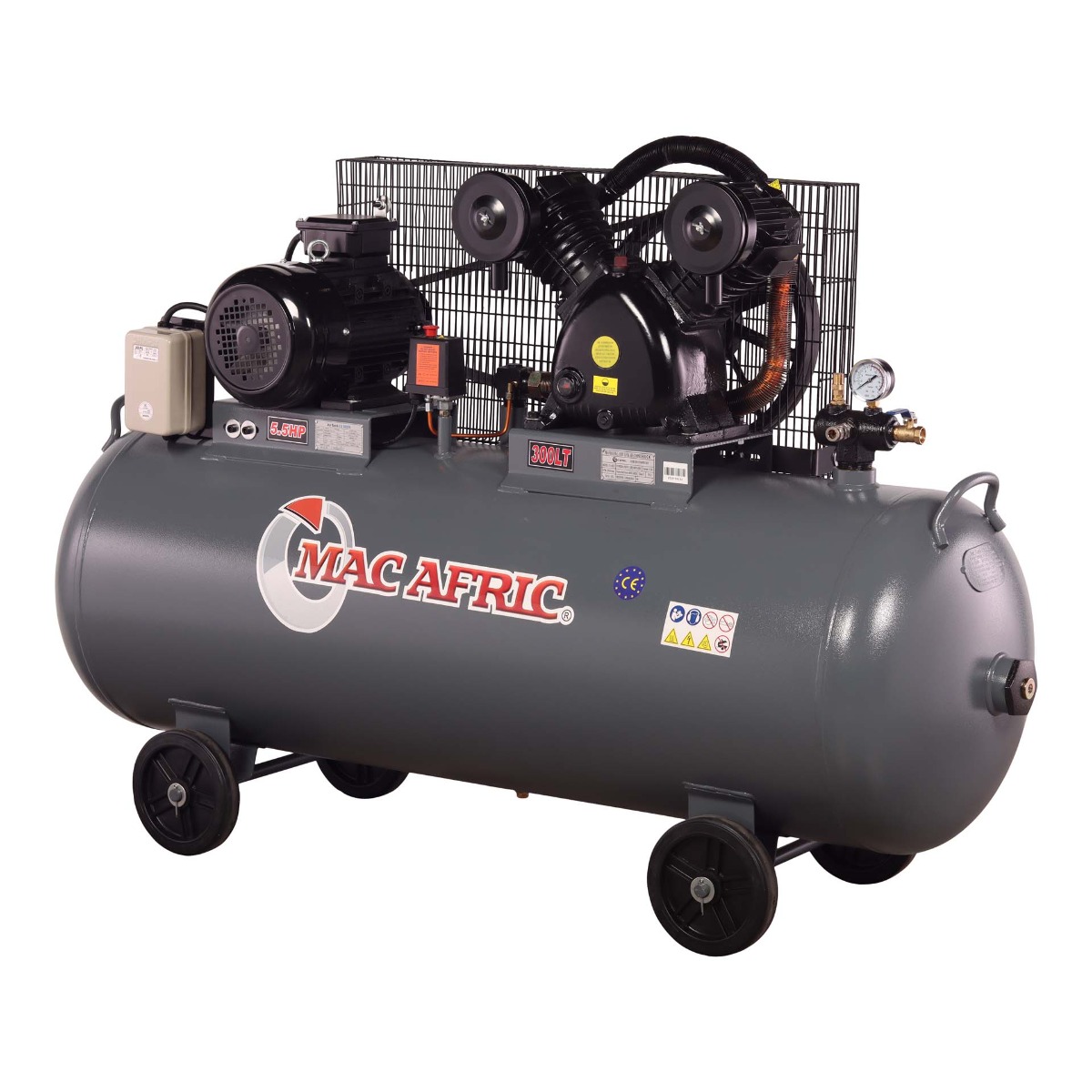

MAC AFRIC 300 Litre 3.6 KW (5 HP) 380 V Belt Driven “V-Type” Compressor
Features a powerful silent running copper three-phase motor. Aluminium 2-stage (v-type) air pump with cast iron cylinder sleeves. 2-Stage air pumps allow intermittent cooling in between stages as well as increased air delivery and maximum pressure. Entry level size for workshops requiring pneumatic tools.
Description
Technical Specifications
Tank Capacity: 300 L
Motor Output: 3.6 KW (5 HP)
Outlet Air Flow: 21 CFM (594 L/MIN)
Max Tank Pressure: 8 BAR (115 PSI)
Amperage: 8 A
Compressor Type: Belt Driven V-Head
RPM: 2 850 RPM
Fuel Type: NA
Voltage: 380 V @ 50 HZ
Expert Advice
The air delivery test is conducted at sea level (0–10 metres). As altitude increases, air delivery will decrease accordingly.
Drain your compressor tank daily after use to avoid build-up and contamination.
Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
