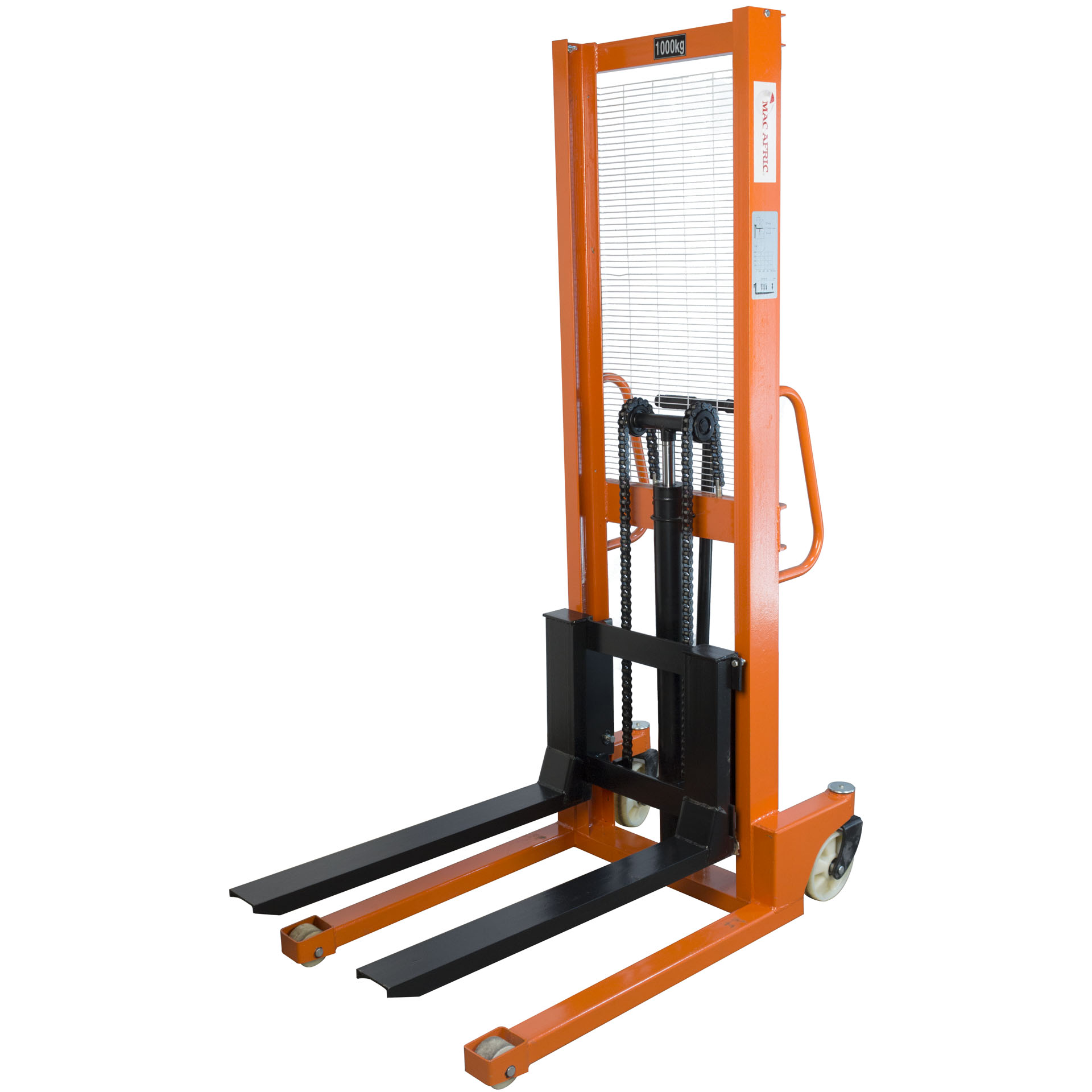

MAC AFRIC 1 Ton Hydraulic Hand Pallet Stacker
The MAC AFRIC 1 Ton Hydraulic Hand Pallet Stacker is a reliable and efficient tool designed for lifting and transporting pallets within industrial settings. With a load capacity of up to 1 ton, this stacker is ideal for moving heavy materials across short distances, making it a must-have in warehouses and distribution centers. Its hydraulic lifting system allows for precise control, while its durable construction ensures longevity.
Description
Technical Specifications
Load Capacity: 1 Ton (1000 kg)
Lowered Fork Height: 100 mm
Total Height: 2 m (2000 mm)
Stroke / Lifting Travel: 1.5 m (1500 mm)
Fork Length: 900 mm
Fork Width: 100 mm
Overall Width: 730 mm
Distance Between Forks: 370 mm
Handle Length: 880 mm
Ground Clearance: 25 mm
Key Features
FeatureDescription
High Load Capacity: Can lift up to 1 ton, perfect for heavy-duty operations.
Precise Hydraulic Lifting: Ensures smooth and controlled lifting, reducing physical strain on the operator.
Compact Design: Ideal for maneuvering in confined spaces.
Durable Build: Constructed with high-quality materials for enhanced durability and long-lasting use.
Easy to Operate: Ergonomic handle and large controls ensure comfort and straightforward operation.
Manual Pallet Stacker – Safety Operating Guidelines
CategoryGuidelines
Pre-Operational Checks:
Inspect for visible damage or leaks.
Check hydraulic system for smooth operation and leaks.
Confirm forks, wheels, and mast are in good condition.
Ensure legibility and authenticity of load capacity plate.
Test brake system (if fitted) for proper engagement and release.
General Safety Rules:
Do not exceed rated capacity (1,000 kg / 1 ton).
Never stand or allow others on forks.
Keep all body parts clear of moving components.
Use correct lifting techniques.
Only trained personnel may operate.
During Operation:
Operate only on stable, level surfaces.
Lower forks before movement.
Push rather than pull for better control.
Centre load evenly to avoid tipping.
Raise/lower loads gradually.
Adhere to load plate warnings regarding lift height limits.
Load Handling:
Do not lift unstable or poorly stacked loads.
Avoid exceeding recommended stacking height.
Secure and correctly position load before lifting.
Parking and Storage:
Lower forks fully when not in use.
Park safely outside walkways or zones.
Never leave a loaded unit unattended.
Maintenance and Inspection:
Conduct weekly/monthly checks based on use.
Address malfunctions immediately.
Use only approved hydraulic oil and replacement parts.
