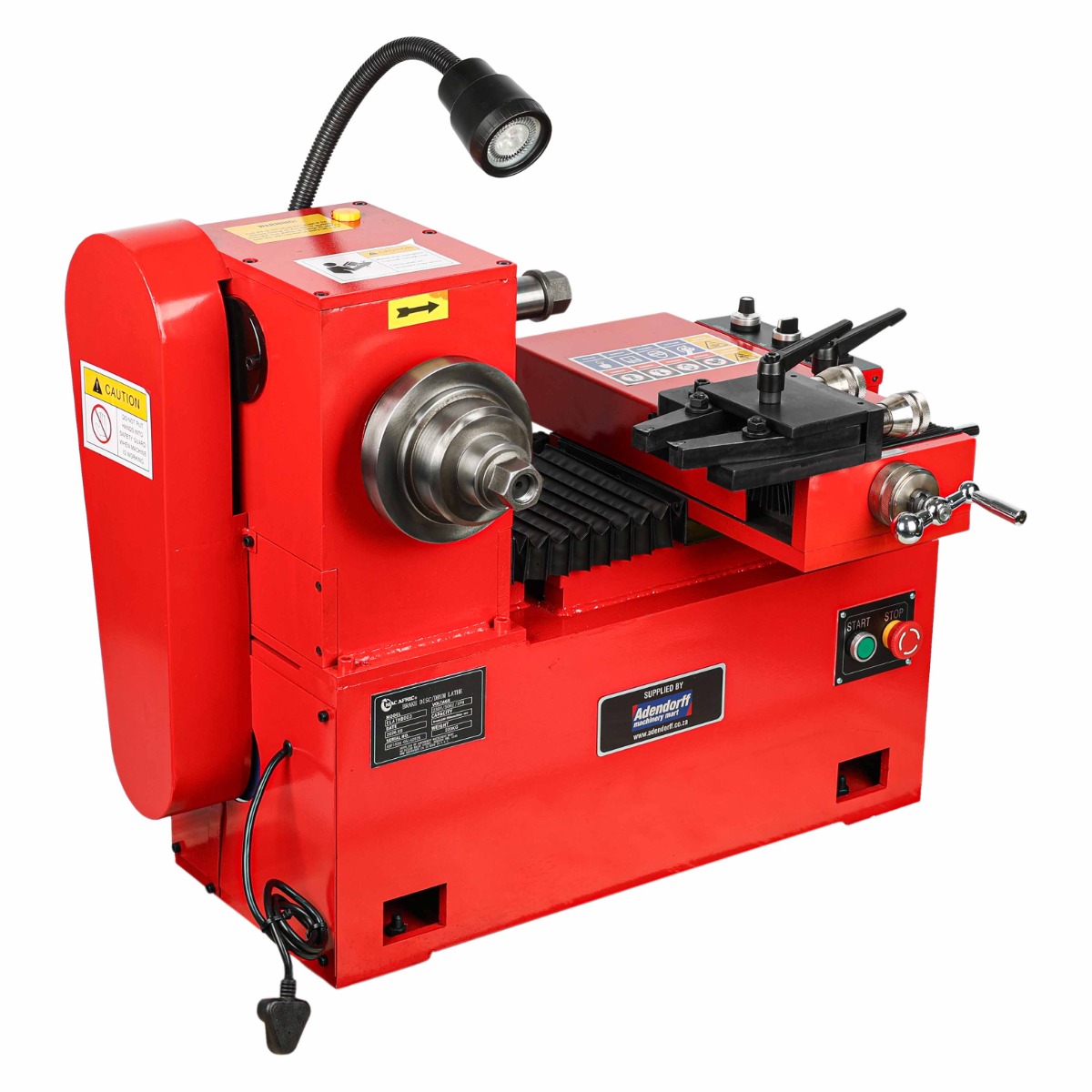

BRAKE DRUM/DISC LATHE 220-240V/50HZ

Description

Technical Specifications

Model: ELATHE003
Product Type: Bench Brake Disc and Drum Lathe
Country of Manufacture: People’s Republic of China
Electrical Designation: 230V / 50 Hz
Overall Height: 655 mm
Overall Width (Lathe Alone): 802 mm
Overall Length (Lathe Alone): 670 mm
Net Weight (Lathe Alone): 270 kg
Gross Shipping Weight: 285 kg
Spindle Centreline to Floor — Rotor Configuration: 500 mm (verification required)
Spindle Centreline to Floor — Drum Configuration: 640 mm (verification required)
Required Floor / Bench Load Rating: ≥ 300 kg static, level, vibration-damped
Motor Rated Power: 1.1 kW
Motor Supply: 230 V AC, 50 Hz, Single Phase
Recommended Supply-Circuit Rating: 15 A Minimum
Insulation / Protection Class: B
IP Rating: IP54
Spindle Nose / Arbor Diameter: 40 mm
Maximum Workpiece Mass on Standard Arbor: 50 kg
Spindle Speed — Belt Position 1 (Low): 130 rpm
Spindle Speed — Belt Position 2 (High): 320 rpm
Carriage Feed Speed — Minimum: 0 mm/rev
Carriage Feed Speed — Maximum: 0.05 mm/rev
Cross-Feed Handwheel Graduation: 0.05 mm per division
Twin-Cutter Micro-Dial Graduation: 0.05 (unit verification required)
Maximum Rotor (Disc) Diameter: 400 mm
Maximum Rotor (Disc) Thickness: 38 mm
Maximum Drum Diameter: 350 mm
Maximum Drum Depth (Drum Height): 100 mm
Recommended Rough-Cut Depth — Drums: ≤ 0.5 mm per pass
Recommended Finish-Cut Depth — Drums: Appears to read ≥ 0.10 mm per pass (verification required)
Recommended Rough-Cut Depth — Rotors: 0.15–0.25 mm per side
Recommended Finish-Cut Depth — Rotors: 0.10–0.15 mm per side
Minimum Cut-Depth Caution: Cuts shallower than 0.10 mm per side reduce insert life, as heat does not transfer efficiently
Gearbox Lubricant — Preferred Grade: ISO VG 32
Gearbox Lubricant — Acceptable Alternatives: Appears to read ISO VG 20, ISO VG 30, ISO VG 35 (do not mix grades)
Gearbox Lubricant — Capacity: Approx. 3.5–3.8 L; sight glass between 1/2 and 2/3 full
Gearbox Oil-Change Interval: 720 operating hours OR 6 months
Key Features
Bench brake disc and drum lathe for machining brake rotors and drums.
1.1 kW single-phase motor with 230 V AC, 50 Hz supply.
Two spindle speed settings of 130 rpm and 320 rpm.
Maximum rotor diameter of 400 mm and maximum rotor thickness of 38 mm.
Maximum drum diameter of 350 mm with a maximum drum depth of 100 mm.
40 mm spindle nose / arbor diameter.
Maximum workpiece mass of 50 kg on the standard arbor.
IP54 protection rating.
Carriage feed range of 0–0.05 mm/rev.
Lubrication
Preferred gearbox lubricant grade: ISO VG 32.
Acceptable alternatives appear to include ISO VG 20, ISO VG 30 and ISO VG 35.
Do not mix lubricant grades.
Gearbox lubricant capacity is approximately 3.5–3.8 L.
Maintain the sight glass between 1/2 and 2/3 full.
Change gearbox oil every 720 operating hours or 6 months.
Important Information
The model appears to be ELATHE003 but requires verification against the original document or product page.
The spindle centreline dimensions appear to be 500 mm and 640 mm, but their row descriptions and values require verification.
The recommended finish-cut depth for drums appears to read ≥ 0.10 mm per pass and requires verification.
The twin-cutter micro-dial graduation appears as 0.05, but the unit is not clearly readable and requires verification.
