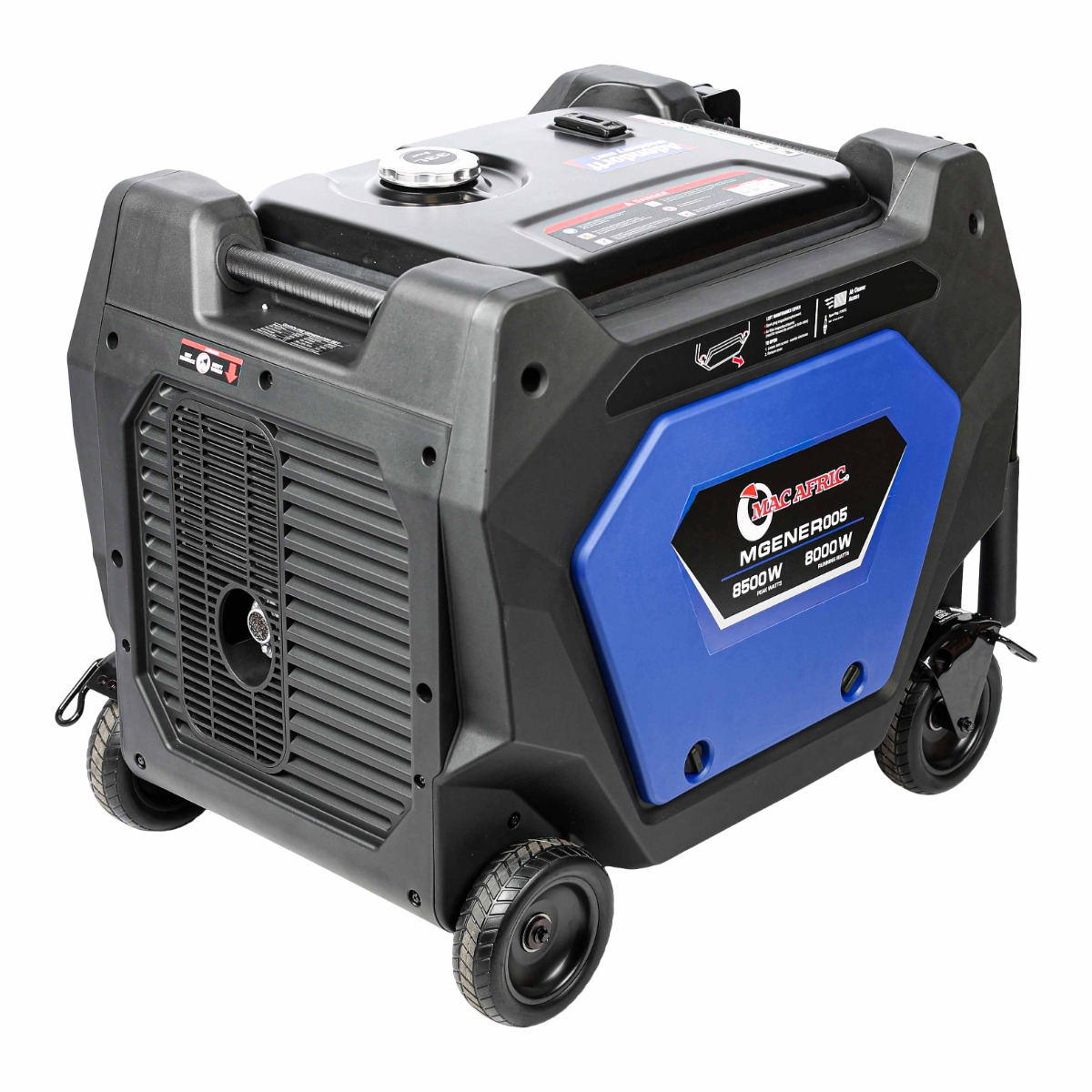

8KW INVERTER GENERATOR(R8500iE)

Description

Technical Specifications

Rated Output Power: 8.0 KVA
Rated Frequency: 50 Hz
Rated Voltage: 220 V
Power Factor: 1.0
AC Output Quality: ISO 8528 G2
Rated Speed: 3600 rpm
DC Output Voltage: 12 V
DC Output Current: 8.3 A
DC Overload Protection: Non-fuse protector
Engine Model: R500D-Vi
Engine Type: Single-cylinder, 4-stroke (OHV)
Displacement: 500 cc
Fuel Type: Unleaded
Fuel Tank Capacity: 29.8 L
Consumption @ Full Load: 6.00 L/H
Consumption @ 50% Load: 3.00 L/H
Oil Capacity: 1.2 L
Recommended Oil Grade: SAE 10W-30
Starting Method: Electric & recoil
Spark Plug Model: F7RTC
Battery Type: Sealed lead acid (rechargeable)
Battery Voltage: 12 V
Battery Capacity: 14 Ah (20 Hr rate)
Battery Design: Non-spillable, anti-leak
Key Features
Powerful 8.0 kW output ideal for home, workshop, or site use
Reliable 500 cc 4-stroke OHV engine for consistent performance
Dual starting system – electric start with recoil backup
Stable power output with ISO 8528 G2 compliance
12V DC output for battery charging applications
Durable sealed lead-acid battery with anti-leak design
Efficient fuel operation using unleaded petrol
Built-in non-fuse overload protection for added safety
Frequently Asked Questions
What size generator do I need for my home or business?
An 8.0 kW generator is suitable for running essential household appliances such as fridges, TVs, lights, and small appliances simultaneously, making it ideal for medium-sized homes or small businesses.
Can this generator run power tools or workshop equipment?
Yes, with 8.0 kW output, it can comfortably run most power tools, including grinders, drills, and even some compressors, depending on their starting load.
How much fuel does a generator use per hour?
Fuel consumption depends on load, but larger generators like this typically use more fuel at higher loads. Running at partial load will improve fuel efficiency.
Is it safe to run a generator overnight?
Generators can run for extended periods if properly ventilated and maintained. Always ensure it is placed outdoors, away from windows and doors.
What maintenance does this generator require?
Regular oil changes, air filter cleaning, spark plug checks, and general inspections are essential to keep the generator running efficiently.
Can a generator damage electronics?
This generator provides stable output (ISO 8528 G2), but sensitive electronics should still be used with surge protection for added safety.
