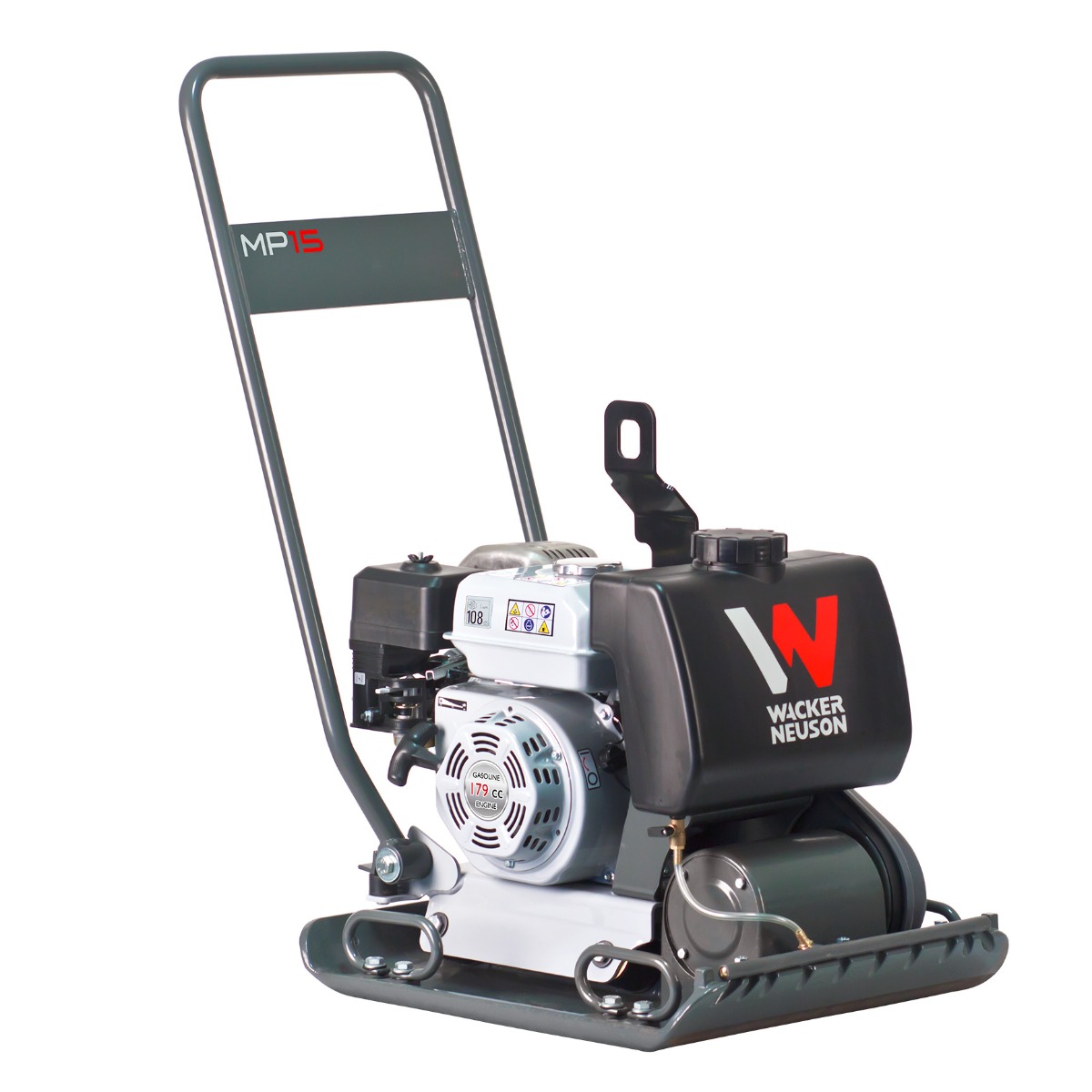

WACKER NEUSON MP15 Single direction Vibratory Plate Compactor
This Wacker Neuson vibratory plate offers functionality and performance at a real value price. The compact design allows for compaction of mixed soils in the narrowest of spaces, even in extremely narrow trenches. The guide handle with vibration damping means longer working hours and less fatigue for the operator.
Description
Technical Specifications
Power Output: 4.2 KW (6 HP)
Centrifugal Force: 15 NM
Operating Weight: 82 KG
Base Plate Size: 650 x 500 x 30 MM
Displacement: 179 CC
Engine Performance: 3600 RPM
Tank Capacity: 3.6 L
Fuel Consumption: 1 L/H
Water Tank Capacity: 8.3 L
Advance Travel Max (soil): 20 m/min
Advance Travel Max (asphalt): 23 m/min
Surface Capacity Max (soil): 615 m²/h
Surface Capacity Max (asphalt): 686 m²/h
Safety Tips When Using a Compactor
It is important to read this entire leaflet before using the plate compactor.
Plan your work and think ahead to make sure you will always be working safely.
Petrol is highly flammable. Take care not to cause a fire or explosion.
This compactor is designed for compacting hardcore, or the final levelling of paving blocks or other surfaces. It is not designed for any other purpose.
The action of this plate compactor can cause injury or damage if the machine is not used in a careful and controlled way.
If you have not used a plate compactor before, familiarise yourself with the machine on some straightforward work before you start on the main task.
The following items of personal protective equipment are minimum requirements: goggles; dust mask (minimum FFP2 protection); ear muffs or plugs (providing protection to reduce exposure to 87dB(A) at the ears); safety boots; and industrial quality gloves.
A personal first-aid kit should be available.
