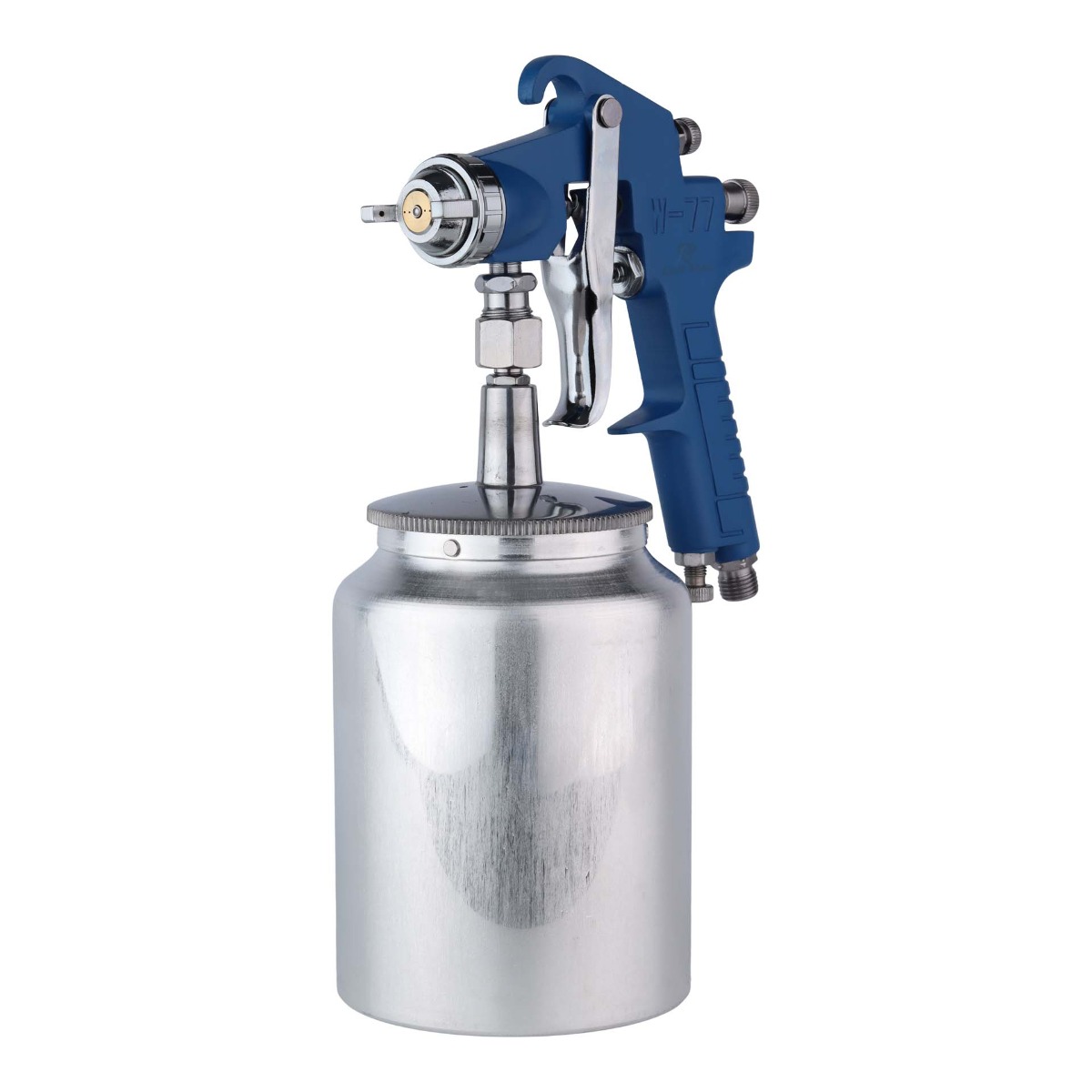

RONGPENG High Pressure Suction Feed Spray Gun W-77S
This suction feed spray gun is tailored for high-pressure output, delivering a superior performance with a 2.0mm nozzle size and a paint capacity of 1000cc. Its efficient air consumption rate of 4.2 to 7.1 CFM (119 – 201 L/min) ensures a consistent spray, making it suitable for a range of viscous materials. The gun’s 6-pattern jet count and adjustable controls for air, fluid, and fan provide a customizable painting experience, while the 180 – 280mm pattern width gives you the flexibility to cover large surfaces with precision.
Description
Technical Specifications
Nozzle Size: 2.0mm
Air Consumption: 4.2 – 7.1 CFM (119 – 201 L/min)
Spray Gun Type: High Pressure Suction Feed
Paint Capacity: 1000cc
Pattern Jet Count: 6
Adjustment Types: Air, Fluid, Fan
Interchangeable Nozzles: No
Pattern Width: 180 – 280mm
Recommended Pressure: 3.0 – 4.0 BAR (44 – 58 PSI)
Key Features
Stainless Steel Nozzle & Needle: Durable construction that resists wear and corrosion.
Adjustable Controls: Features air, fluid, and fan adjustments for tailored application.
Large Capacity: 1000cc paint container for extensive use without frequent refills.
Suction Feed Type: Ensures a smooth and continuous flow of paint.
Optimal Pressure Range: Operates efficiently at 3.0 – 4.0 BAR (44 – 58 PSI).
Applications
Ideal for industrial coatings, and high-precision painting in furniture manufacturing.
