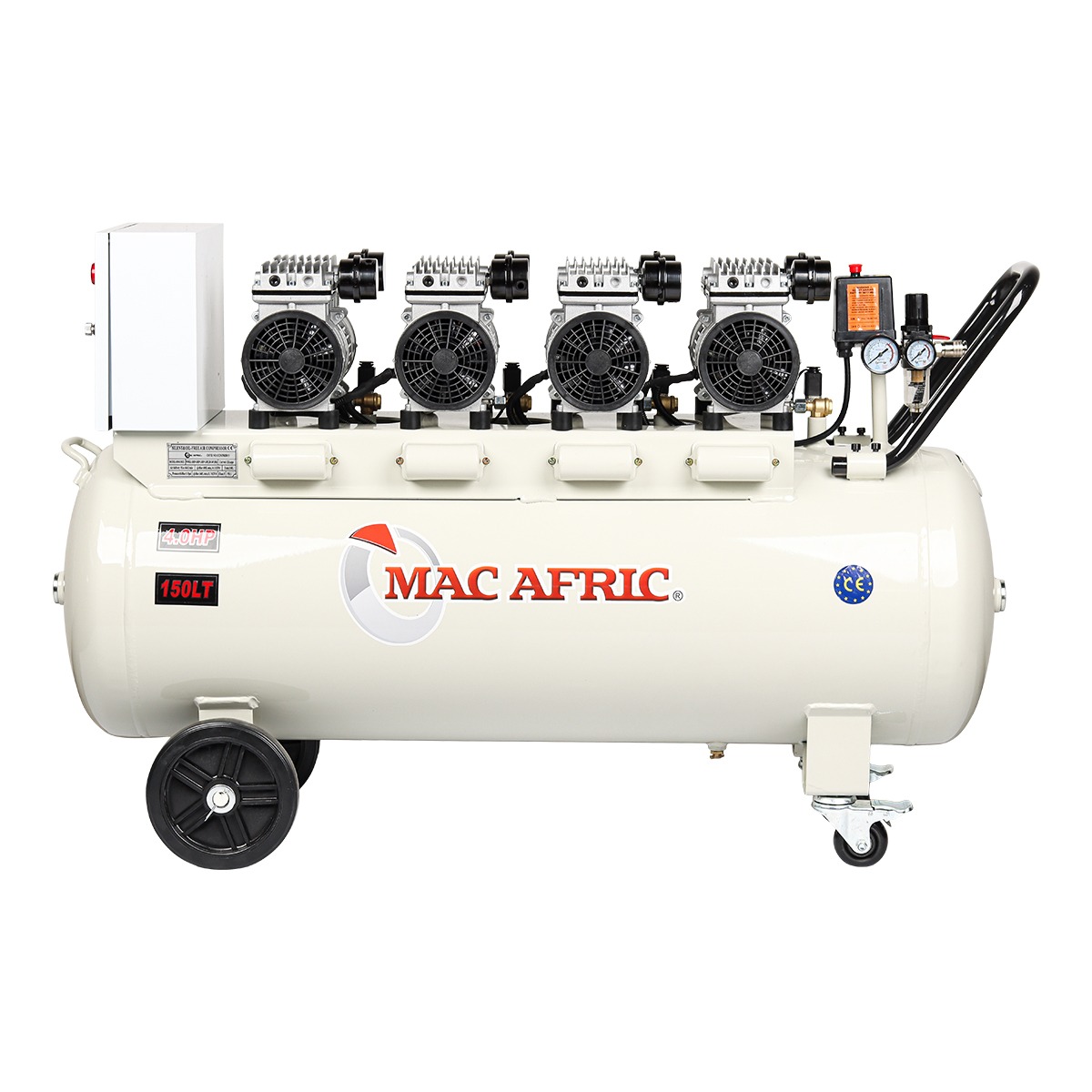

PRO 150L 2400W OIL FREE SILENT COMPRESS(8Bar)

Description

Technical Specifications

Volume: 160 L (0.16 m³)
Working Pressure (Pc): 8 bar (800 kPa)
Hydrostatic Test Pressure (Ph): 13.2 bar (1320 kPa)
Design Pressure: 8.8 bar (880 kPa)
Minimum Temperature (Tmin): -10 °C
Maximum Temperature (Tmax): +100 °C
Medium: Nonlethal Air
Corrosion Allowance (C): 0.5 mm
Wall Thickness (δa): 3.0 mm
Power Configuration: 4 × 1.0 HP motors
Supply Voltage: 240 V AC, 50 Hz
Phase: Single Phase (PH:1)
Current: 12 A
Maximum Air Delivery: 444 L/min
Air Delivery @ 4 bar: 400 L/min (14.12 CFM)
Air Delivery @ 6 bar: 360 L/min (12.71 CFM)
Maximum Pressure: 8.0 bar (≈116 psi)
Tank Capacity: 150 L
Insulation Class: Class F
Key Features
Large 160 L vessel volume for high-capacity compressed air storage
Powered by 4 × 1.0 HP motors for strong performance
Maximum air delivery of 444 L/min
Delivers 400 L/min at 4 bar and 360 L/min at 6 bar
Maximum operating pressure of 8 bar
Single-phase 240 V power supply for convenient workshop use
Class F insulation for dependable motor protection
Built with 3.0 mm wall thickness and 0.5 mm corrosion allowance
