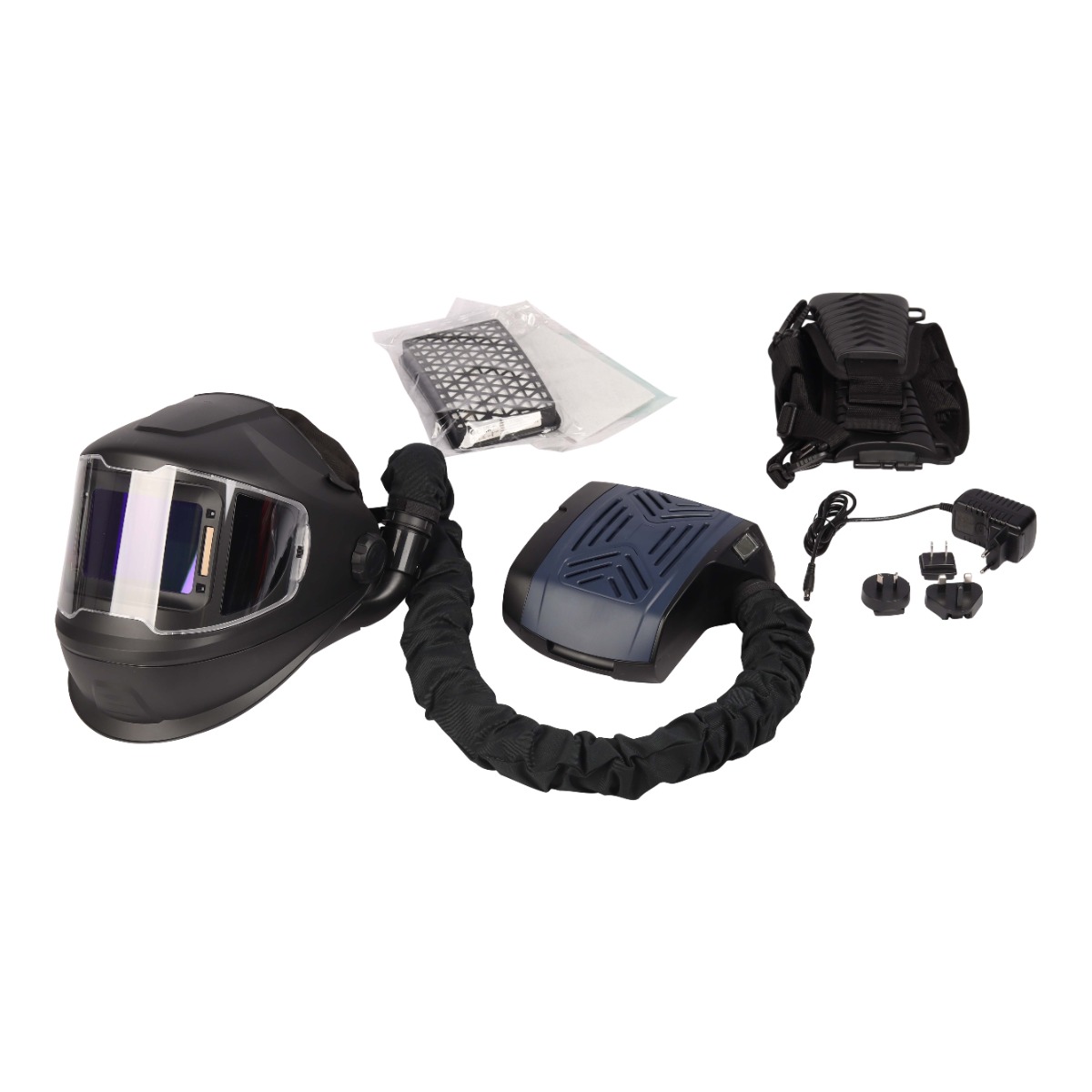

MAC AFRIC Welding Helmet With Air Respirator
*]:pointer-events-auto [content-visibility:auto] supports-[content-visibility:auto]:[contain-intrinsic-size:auto_100lvh] scroll-mt-[calc(var(–header-height)+min(200px,max(70px,20svh)))]” dir=”auto” tabindex=”-1″ data-turn-id=”request-WEB:0b99ff90-d278-47bd-b64d-67ad92110bd7-0″ data-testid=”conversation-turn-2″ data-scroll-anchor=”true” data-turn=”assistant”> Stay safe and breathe easy with the MAC AFRIC Welding Helmet with Air Respirator from Adendorff. Designed for ultimate protection, this helmet features an auto-darkening visor and built-in powered air purifying respirator to shield your eyes, face and lungs from harmful welding fumes and sparks. Ideal for professional use in demanding environments. Includes battery pack, filters and carry bag for convenience.
Description
Technical Specifications
Filter Model: P3X Series
CE Classification: V2 / V1 (depends on X)
Viewing Area: 116 × 81 mm (≈14.6 in²) — MAX Series
ADF Light State: Shade 3
Variable Shade: DIN 4 (light); DIN 8–9 → 13 (X=0/1) or 8–9 → 14 (X=3)
Sensitivity: 0–9 levels
Delay: 0.04–1.0 s
Memory Mode: 10 records
Sensors: 4
Power Supply: Solar cell + 2× lithium batteries
External Fine Tuning: 4 + 1 (Ambient Light)
Auto Shade / Sensitivity / Delay: Yes / Yes / Yes
Auto Shade Deviation: ±2
Particle Filter Class: TH3 P R SL (Europe); PAPR-P3 (Australia)
Nominal Airflow Rate: Level 1 ≥170 L/min; Level 2 ≈190 L/min; Level 3 ≈210 L/min
Warning Alarms: Audio, visual, and vibrating
Battery – Standard (SD): 14.8 V, 2.6 Ah / 38.48 Wh
Battery – Heavy-duty (HD): 14.8 V, 5.2 Ah / 76.96 Wh (optional)
Expected Operation Time: 10 h (SD) / 20 h (HD) @ 170 L/min, new filter, room temp
Charging Time: ≈2 h (SD) / ≈4 h (HD)
Battery Life: >500 charge cycles
Noise Level: Max 75 dB
PAPR Weight: ≈750 g (SD) / ≈790 g (HD) (includes battery, filter, belt & tube; excludes hood)
Blower Dimensions (L×W×H): ≈224 × 198 × 82 mm
Operating Conditions: −5 °C to +55 °C, RH ≤90%, non-condensing
Key Features
Auto-darkening welding lens with fast switching and adjustable shade levels
Built-in PAPR system delivers clean, filtered air directly to the helmet
Protects lungs, eyes & face from fumes, dust, UV/IR radiation, & sparks
Anti-fog and cooling airflow reduces fatigue and heat build-up
Long-life rechargeable battery for extended work sessions
Comfortable headgear and lightweight design for all-day use
Ideal for industrial and professional welding environments
