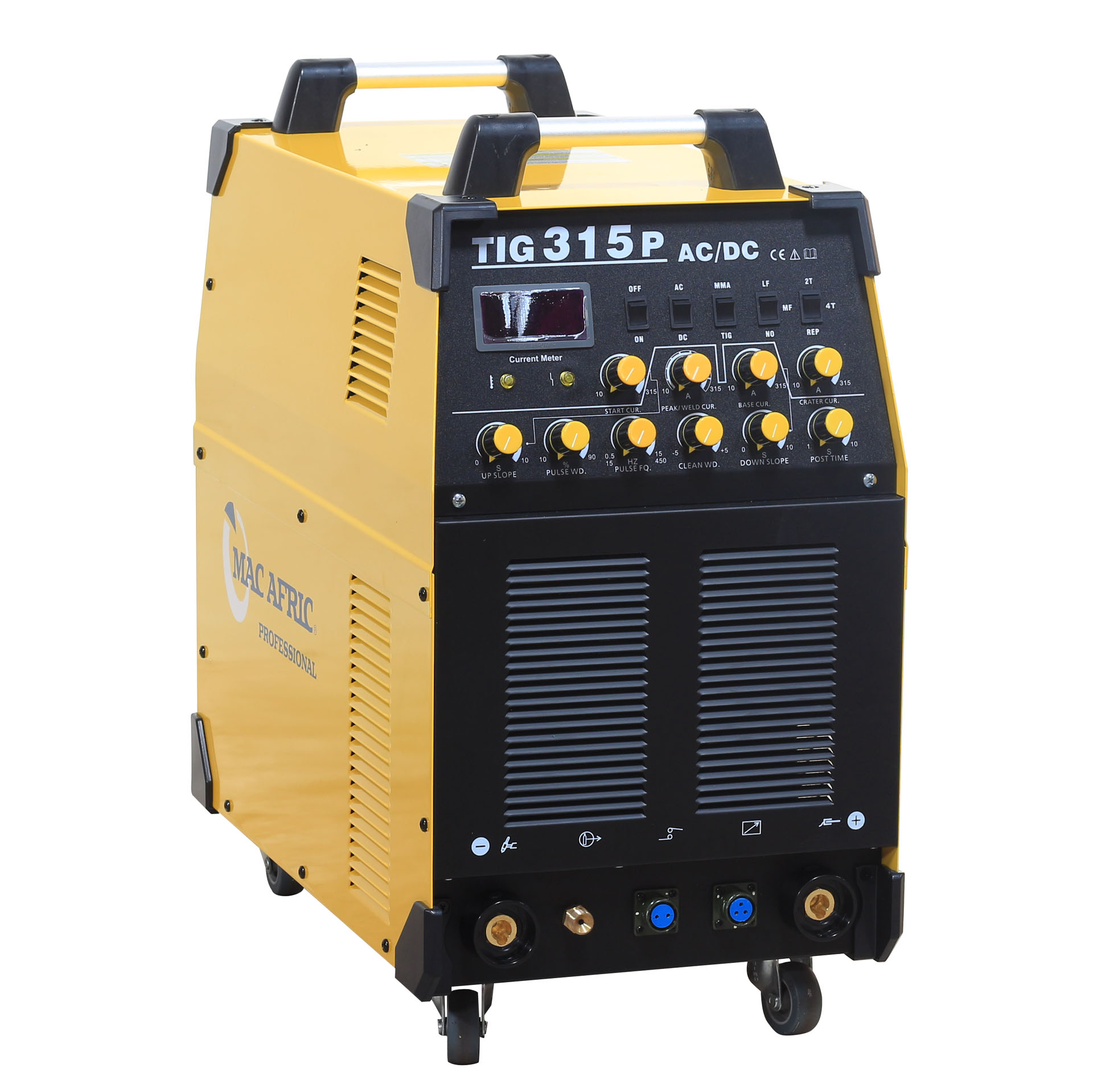

MAC AFRIC TIG315P Professional AC/DC MMA/TIG Welding Machine

Description

Technical Specifications – TIG / MMA Welder

Power Voltage: 3PH AC380V ± 15%
Frequency: 50/60 Hz
Rated Input Current: TIG: 17.2 A, MMA: 15.5 A
Output Current: TIG: 12 – 300 A, MMA: 15 – 240 A
Duty Cycle: TIG: 20%, MMA: 60%
No-Load Voltage: 62 V
Rated Output Voltage: TIG: 22 V, MMA: 29.6 V
Pulse Duty Cycle: 10 – 90%
Post Time: 1 – 10 s
Pulse Frequency (Low Frequency): 0.5 – 15 Hz
Pulse Frequency (Medium Frequency): 15 – 450 Hz
Basic Value Current: 12 – 300 A
Arc Initiation Current: 12 – 300 A
Remote Control: Yes
Arc Initiation Way: HF
Power Factor: 0.93
Efficiency: 85%
Insulation Grade: F
Protection Grade: IP21
Key Features
Advanced Inverter Technology for Superior Welding Performance
Versatile Welding Options: TIG AC, TIG DC, and MMA (Stick) welding
Easy Arc Striking with Trigger Start DC TIG and automatic hot start
Enhanced efficiency compared to traditional TIG machines
User-friendly controls: 2T/4T selection, repeat function, and digital current display
Remote Control: Foot pedal capability for convenience
Precision and Protection: Adjustable AC frequency, AC balance for tungsten erosion control, and protection against voltage/current/temperature surges
