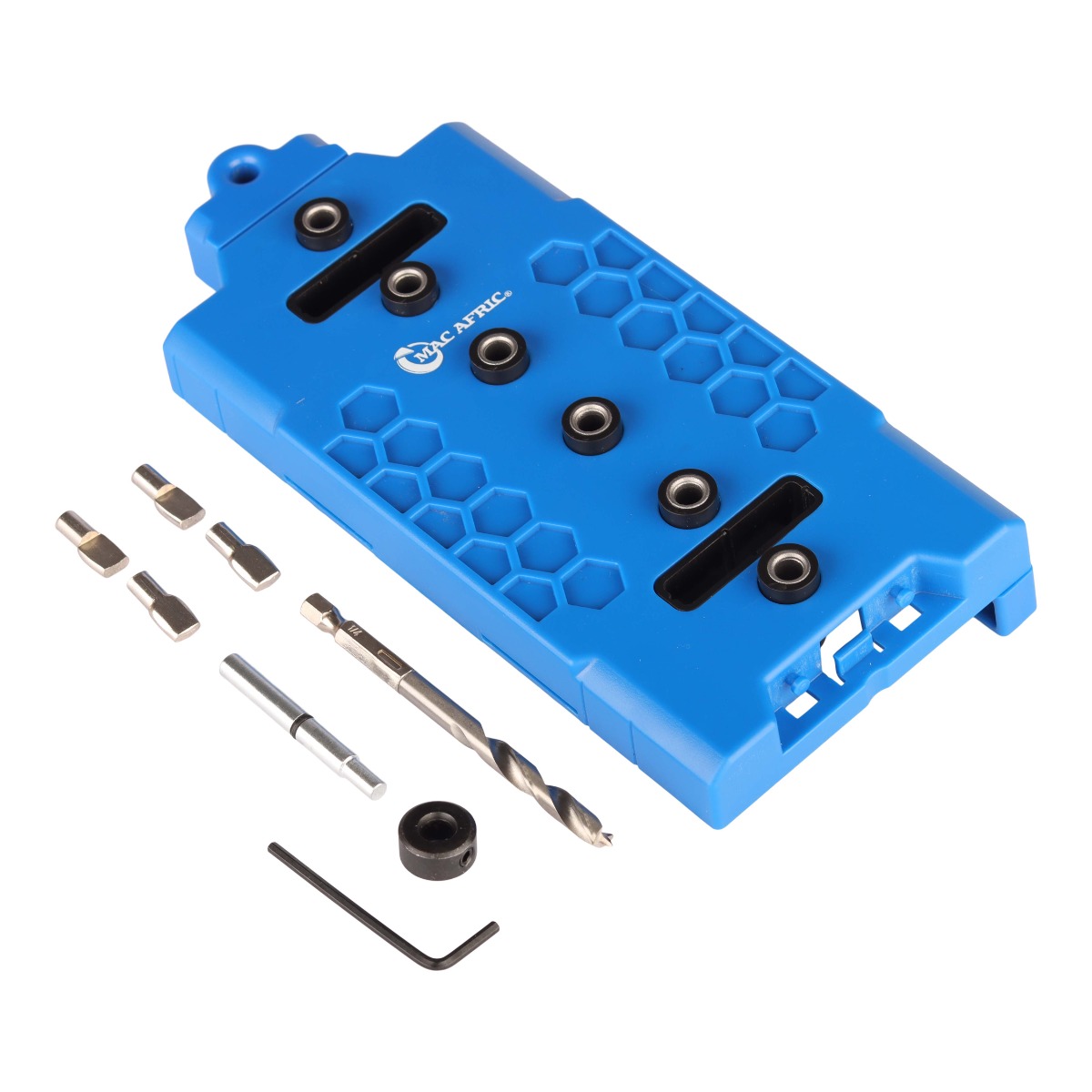

Mac Afric Shelf Pin Jig

Description

Technical Specifications

Length: 5 M
Size: 12 Inch
Application Type: Drilling jig for shelf pin holes
Compatible Drill Bit Size: 1/4″ (≈ 6.35 mm)
Hole Spacing: 32 mm system (1-1/4″)
Alignment Method: Fence-guided, dual-position fence
Storage: Onboard storage for drill bit, pin, and wrench
Key Features
Six hardened-steel drill guides
Removable dual-position fence
Shelf Pin Jig
Frequently Asked Questions
What is this shelf pin jig used for?
This shelf pin jig is designed to accurately drill evenly spaced shelf pin holes in cabinet sides, cupboards, and shelving units using the 32 mm system.
What drill bit size should I use with this jig?
The jig is compatible with a 1/4″ (approximately 6.35 mm) drill bit, which is the standard size for most shelf pins.
Can this jig be used on different board widths?
Yes, the removable dual-position fence allows the jig to be aligned accurately on different panel widths and edge offsets for versatile use.
Is this jig suitable for DIY and professional use?
Absolutely. The hardened steel drill guides ensure precision and durability, making it suitable for both DIY enthusiasts and professional cabinet makers.
Does the jig help keep holes straight and evenly spaced?
Yes, the fence-guided alignment and fixed 32 mm hole spacing system ensure straight, consistent, and repeatable drilling results.
How do I store the jig and accessories?
The jig features onboard storage for the drill bit, shelf pin, and wrench, helping keep everything organised and easy to transport.
Does this product come with a warranty?
Yes, this product is covered by Adendorff Machinery Mart’s one-year carry-in warranty against manufacturing or material defects, subject to standard warranty terms and conditions.
