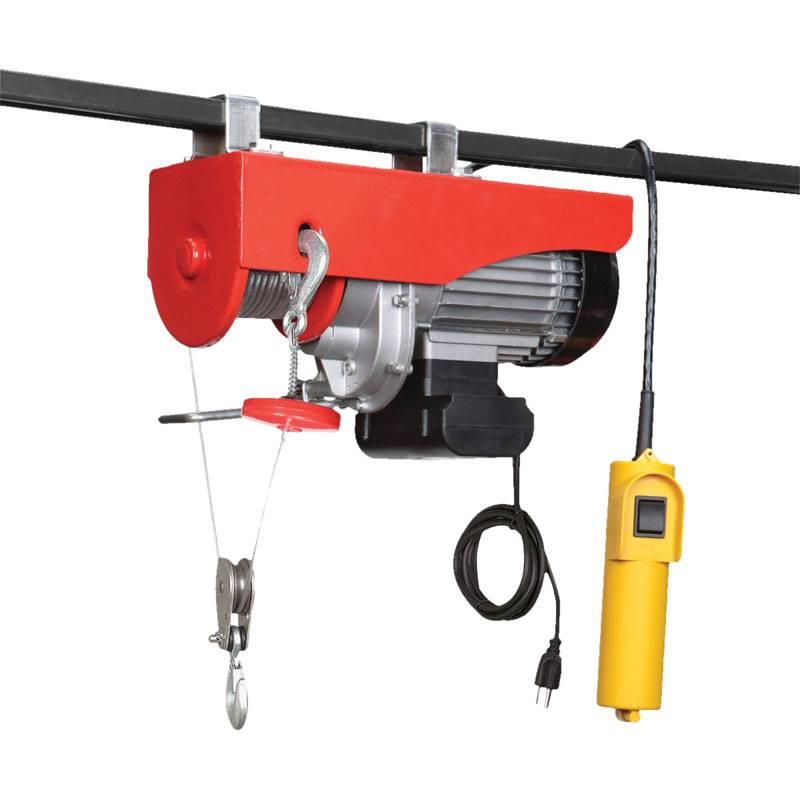

MAC AFRIC PA1000D Electric Cable Hoist 500/1000kg
The MAC AFRIC PA1000D is a mini electric rope hoist designed for versatile lifting operations. With a 230V, 50Hz power supply, and an efficient 1600W input power, it easily handles loads with its dual capacity of 500/999kg. This hoist is perfect for both light-duty and heavy-duty applications, offering a lifting height of 12/6m and a rated speed of 8/4m/min depending on the configuration.
Description
Technical Specifications
Model: PA1000D
Power Supply: 230 V @ 50 Hz
Power Output: 1.6 kW
Current: 7.4 A
Working Load Limit: Single Hook: 500 kg / Double Hook: 999 kg
Lifting Height: Single Hook: 12 m / Double Hook: 6 m
Lifting Speed: Single Hook: 8 m/min / Double Hook: 4 m/min
Cable Diameter: 5.6 mm
Protection Class: IP54
Key Features
Dual lifting setup allows switching between higher speed (single hook) and higher load capacity (double hook).
Upper and lower limit devices help prevent over-travel during lifting operations.
Emergency stop switch allows immediate shutdown when needed.
Reinforced braking system supports controlled and secure lifting.
Pulley system with multiple sheaves helps manage load handling more effectively.
IP54 protection rating helps protect against dust and light water exposure in typical working environments.
