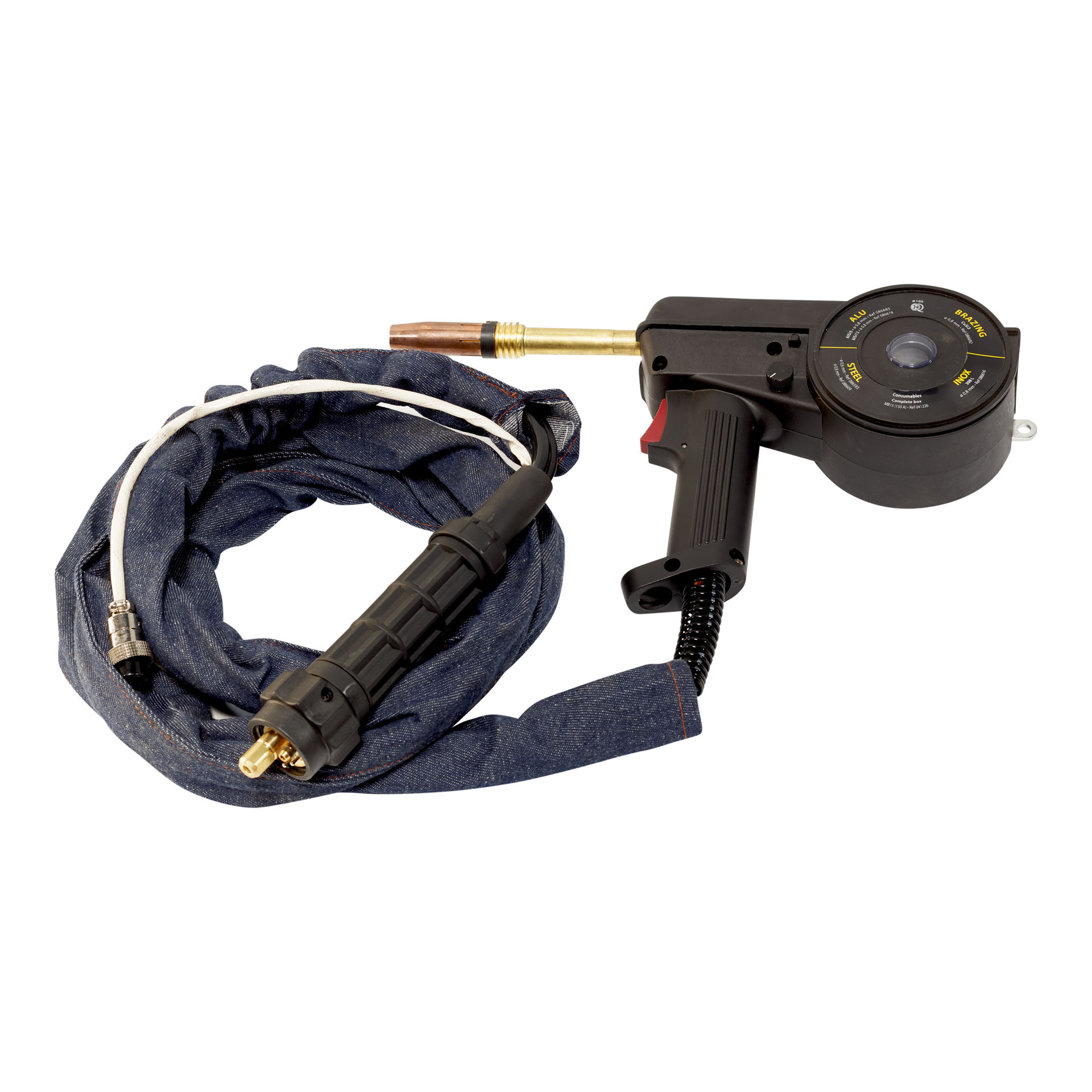

MAC AFRIC MIG Spool Gun for Aluminium Welding (6 pin)

This spool gun is compatible with the MAC AFRIC EWELDM-180. It includes a 0.5kg roll of 0.8mm aluminum wire. Users can opt to fit other types of wire if preferred. It accommodates mini spool sizes ranging from 0.5kg to 1kg.

SKU: EWELDM181 Category:

Description

Portable MIG Welder Specifications
SpecificationValue
Motor Voltage: 24 V DC
Rated Welding Current: COâ‚‚: 200 A, MIG: 160 A
Duty Cycle: 60%
Mild Steel: 0.4 – 0.8 mm
Aluminium: 0.6 – 1.9 mm
Stainless Steel: 0.6 – 0.8 mm
Wire Speed: 0 – 20 m/min
Speed Adjust Potentiometer: 10KΩ (1KΩ / 5KΩ)
Spool Cover Diameter: 102 mm
Cooling System: Air Cooled
Standard Cable Length: 6 m
