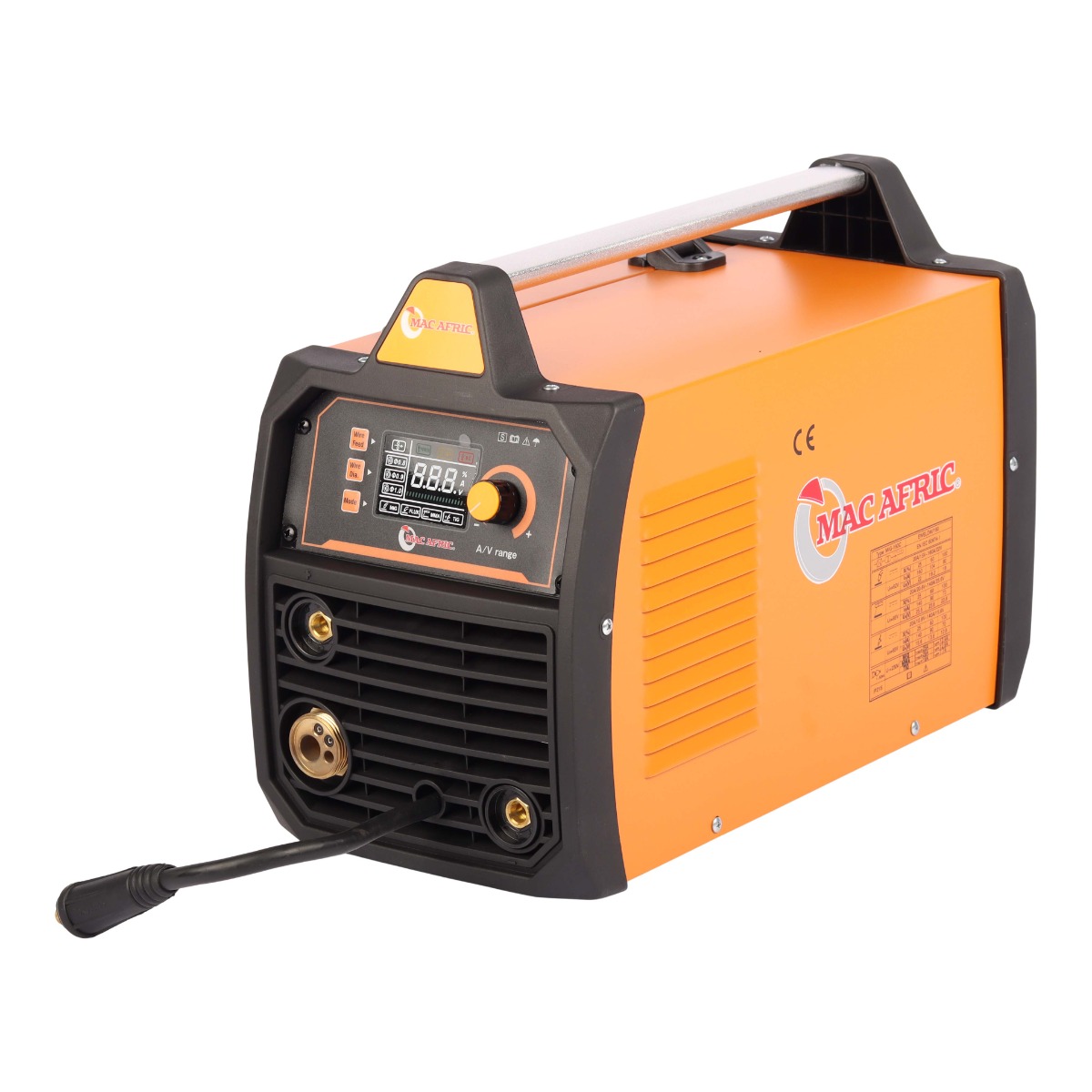

Mac Afric Inverter 160A MIG/MMA Welder LCD Screen

Description

Technical Specifications – TIG

Input Voltage: 1Ph 230V, 50Hz
Input Current (A): 16
Input Power (kVA): 3.6
No-load Voltage (V): 65
Welding Current (A): 20–140
Related Duty Cycle: 25%
Electrode Wire Ø (mm): N/A
Max Cutting Thickness (mm): N/A
Technical Specifications – MMA

Input Voltage: 1Ph 230V, 50Hz
Input Current (A): 26
Input Power (kVA): 5.8
No-load Voltage (V): 65
Welding Current (A): 20–140
Related Duty Cycle: 25%
Electrode Wire Ø (mm): 1.0–3.6
Max Cutting Thickness (mm): N/A
Technical Specifications – MIG/FLUX

Input Voltage: 1Ph 230V, 50Hz
Input Current (A): 25
Input Power (kVA): 5.7
No-load Voltage (V): 62
Welding Current (A): 20–160
Related Duty Cycle: 25%
Electrode Wire Ø (mm): 0.6–1.0
Max Cutting Thickness (mm): N/A
General Specifications

Efficiency: 85%
Power Factor: 0.7
Protection Class: IP21S
Insulation Class: F
