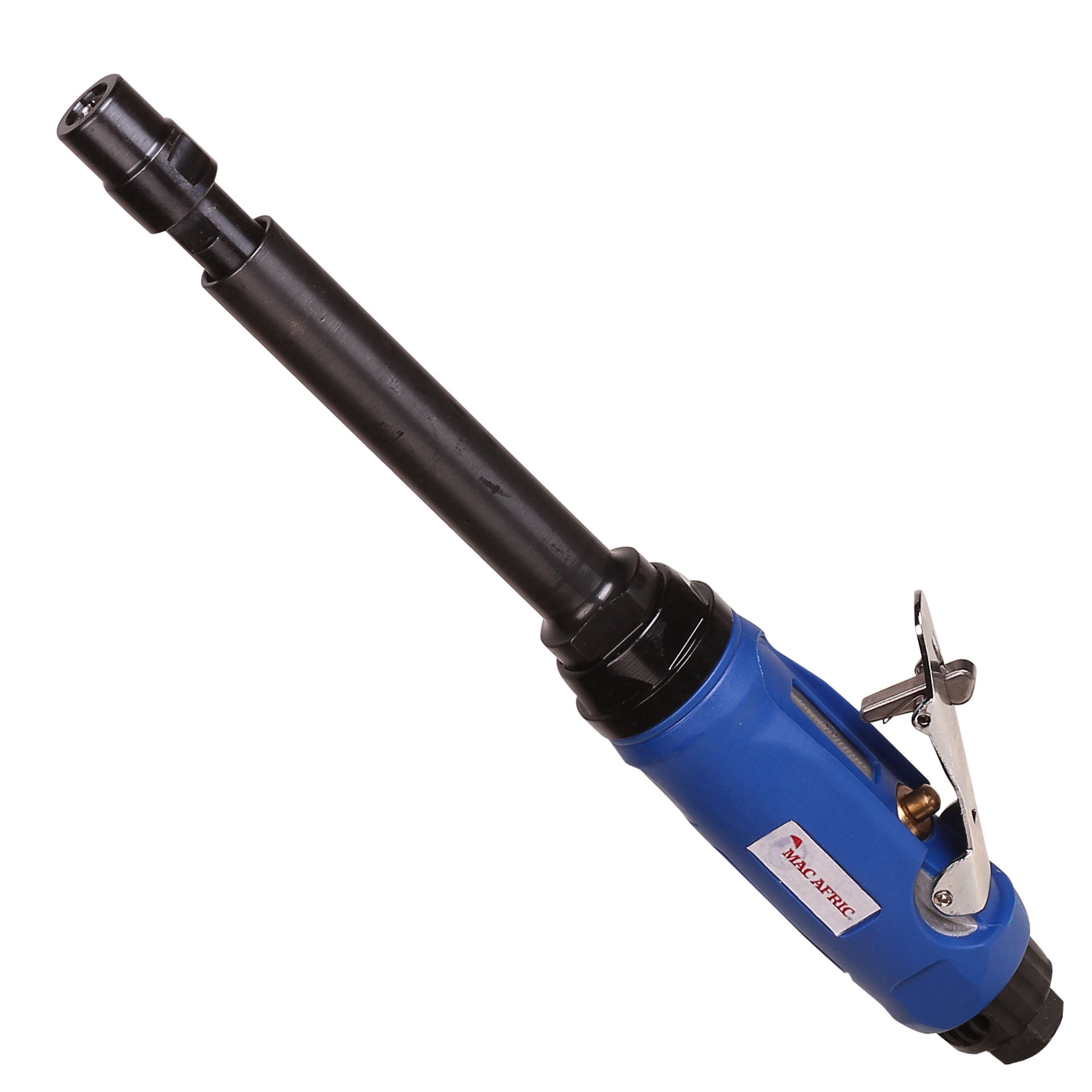

MAC AFRIC Extended Shaft Air Die Grinder
Extended shaft for easy access to those difficult reach work-spaces. Lightweight and low-noise. A garage and tyre shop must-have! Collet sizes: 1/4″ (6mm) and 1/8″ (3mm). Working pressure: 90 PSI. Air inlet size: 1/4″. Air consumption: 4 CFM. The back-row design prevents the dispersion of material dust on the ground, and excess lubricant is discharged from the rear vent. Featuring high speed, low noise, low air consumption, excellent concentricity, and ease of operation. An ergonomic handle ensures ease of use and reduces hand fatigue.
Description
Technical Specifications
Product Type: Extended-Shaft Pneumatic Die Grinder
SKU: AGRIND005
Configuration: Straight, Extended Shaft
Extended Shaft Length: 150 mm
Free Speed: 20 000 rpm
Air Consumption: 113 L/min
Operating Pressure: 6.2 bar
Collet Sizes: 3 mm / 6 mm — exact metric versus imperial dimensions to verify
Air Inlet: 1/4 in nominal
Noise Level: 80 dB(A)
Handle Vibration: 1.20 m/s²
Exhaust Position: Rear
Grinding Bits Included: None
Recommended Minimum Compressor Airflow: Approximately 227 L/min
Package Dimensions: 308 × 70 × 44 mm
Package Weight: 0.86 kg
Set Contents
1 × Extended Shaft Air Die Grinder
1 × 6 mm nominal collet
1 × 3 mm nominal collet
Grinding bits: None supplied
Verify: Number and type of collet/spindle wrenches supplied
Key Features
150 mm extended shaft provides additional reach for recessed and difficult-to-access grinding areas.
Dual collet capability allows suitable smaller and larger shank accessories to be used.
20 000 rpm free speed supports detailed grinding, deburring, porting and finishing work.
Rear exhaust helps direct discharged air away from the immediate work area.
Relatively slim extended configuration provides reach without requiring a bulky angle head.
Stated 80 dB(A) noise output gives customers a useful basis for workshop noise and PPE planning.
113 L/min stated air consumption enables more accurate compressor matching.
Particularly useful for automotive, fabrication and maintenance work where conventional die grinders cannot reach the required surface.
