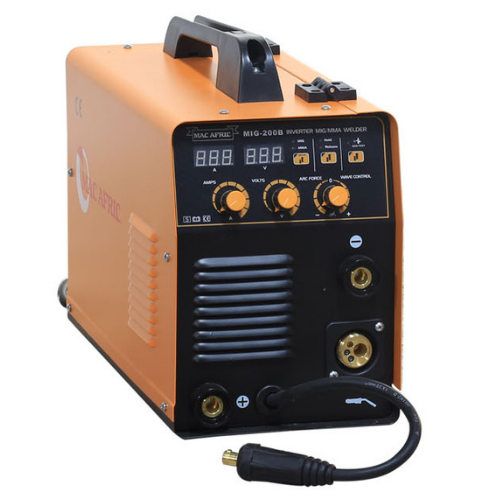

MAC AFRIC D.C. Model 200 A ARC (MIG/MMA) Inverter Welder
The MIG 200 Model is a powerful 200 AMP Dual Purpose welder that offers the advantages of standard MIG (Gas/No Gas) as well as all MMA welding. Compact Portable Design
Description
Technical Specifications – MIG / FLUX
Input Voltage: 1PH 230 V, 50 Hz
Input Current: 34 A
Input Power: 7.7 kVA
No-Load Voltage: 60 V
Welding Current: 30 – 200 A
Welding Voltage: 15.5 – 24 V
Rated Duty Cycle: 35%
Welding Wire Diameter: 0.6 – 1.0 mm
Electrode Diameter: N/A
Efficiency: 85%
Power Factor: 0.7
Protection Class: P21S
Insulation Class: F
Technical Specifications – MMA
Input Voltage: 1PH 230 V, 50 Hz
Input Current: 30 A
Input Power: 6.8 kVA
No-Load Voltage: 60 V
Welding Current: 20 – 160 A
Welding Voltage: 20.8 – 26.4 V
Rated Duty Cycle: 35%
Welding Wire Diameter: N/A
Electrode Diameter: 1.0 – 4.0 mm
Efficiency: 85%
Power Factor: 0.7
Protection Class: P21S
Insulation Class: F
