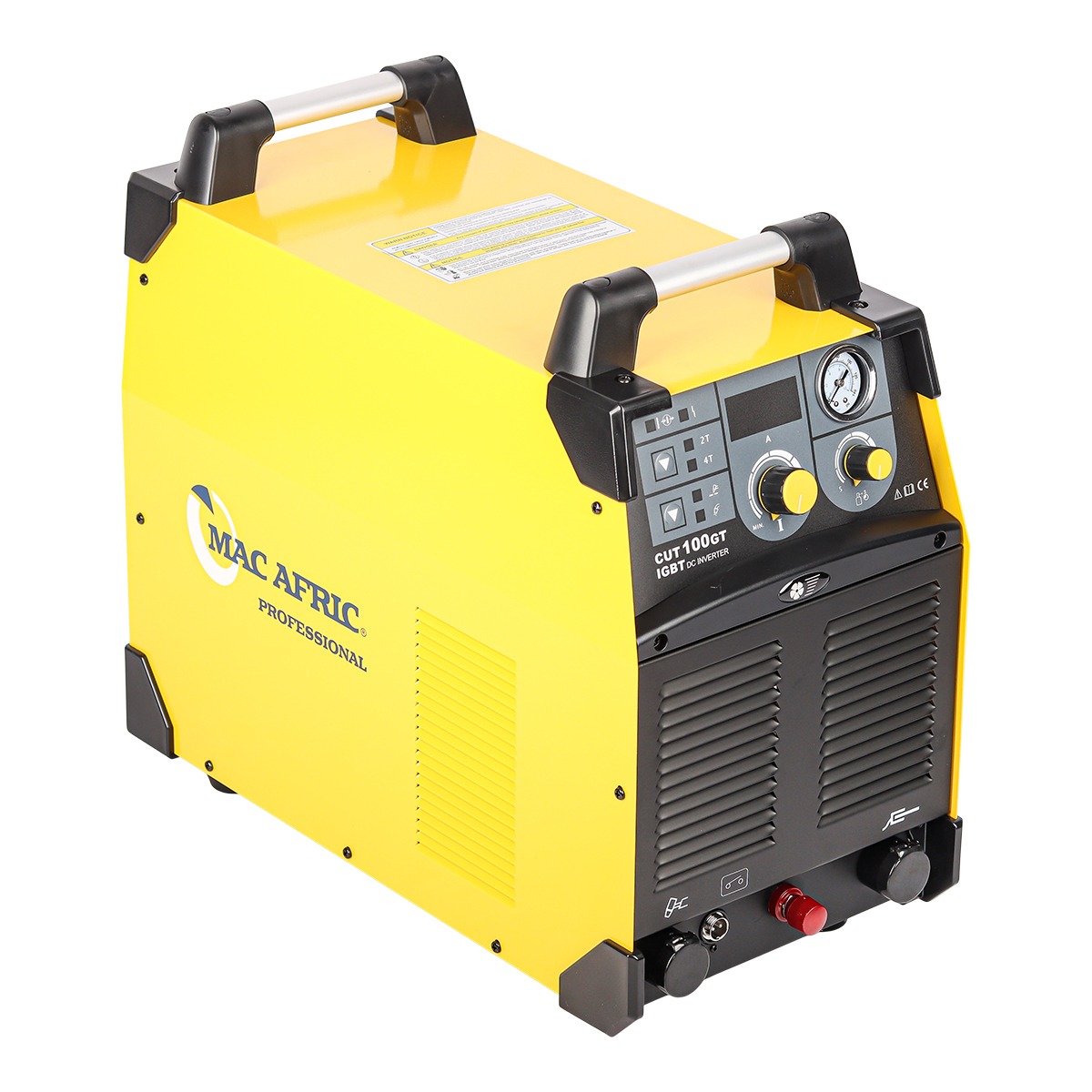

MAC AFRIC CUT100GT Professional 380 V Plasma Cutter
A professional-grade 380V plasma cutter that has the option to be controlled by a CNC device for precision programmed cuts. NB: CNC plug is to fire the torch only (compatible CNC equipment are not included). Three Proof Air Duct Cooling Design (water-resistant, Windproof & Wind Erosion Proof) resistant to humidity and light exposure IGBT Inverter Technology High Duty Cycle High efficiency & energy saving Voltage Adaptive Range
Description
Technical Specifications
Input Voltage: 380 V (Three Phase)
Frequency: 50 HZ
Rated Input Current: 23 A
Rated Power: 15.1 KVA
Output Current Adjusting Range: 20 – 100 A
Rated Output Voltage: 120 V
Duty Cycle: 0.4
Efficiency: 0.85
Power Factor: 0.9
Back Blowing Time: 5 – 25 S
Arcing Mode: High frequency Arc Ignition
Cutting Capacity: 1 – 25 mm
Recommended Cutting Settings – EWELDP100
MaterialThicknessAmperage RangeAir PressureNotes
Mild Steel: 1 – 3 mm: 30 – 40 A: 4.5 – 5.0 bar: Clean edges, minimal dross
Mild Steel: 4 – 6 mm: 50 – 70 A: 5.0 bar: Smooth cutting
Mild Steel: 8 – 12 mm: 70 – 90 A: 5.0 – 5.5 bar: May require slower travel
Mild Steel: 12 – 16 mm: 90 – 100 A: 5.5 – 6.0 bar: Max capacity, clean air critical
Stainless Steel: 3 – 6 mm: 50 – 70 A: 5.0 bar: Slower cutting than mild steel
Aluminium: 3 – 10 mm: 40 – 80 A: 5.0 – 5.5 bar: Requires steady hand, clean air
Key Features
Heavy-duty industrial plasma cutter suitable for workshop or fabrication use
High-frequency arc ignition for smooth starting
Adjustable output current from 20 – 100 A
Capable of cutting steel up to 25 mm thick
Back blowing function for extended consumable life
Stable performance with efficient duty cycle and high power factor
Troubleshooting Guide
Machine Will Not Start: Check power input, breakers, or faulty switch.
Torch Will Not Ignite: Check air pressure, consumables, and ground clamp.
Arc Starts But Cuts Poorly: Reduce speed, increase amps, use dry air.
Excessive Dross: Adjust speed, air pressure, and replace worn consumables.
Overheating: Respect duty cycle, clear vents, reduce amperage.
Air Flow But No Arc: Check trigger switch, torch latch, and board issues.
