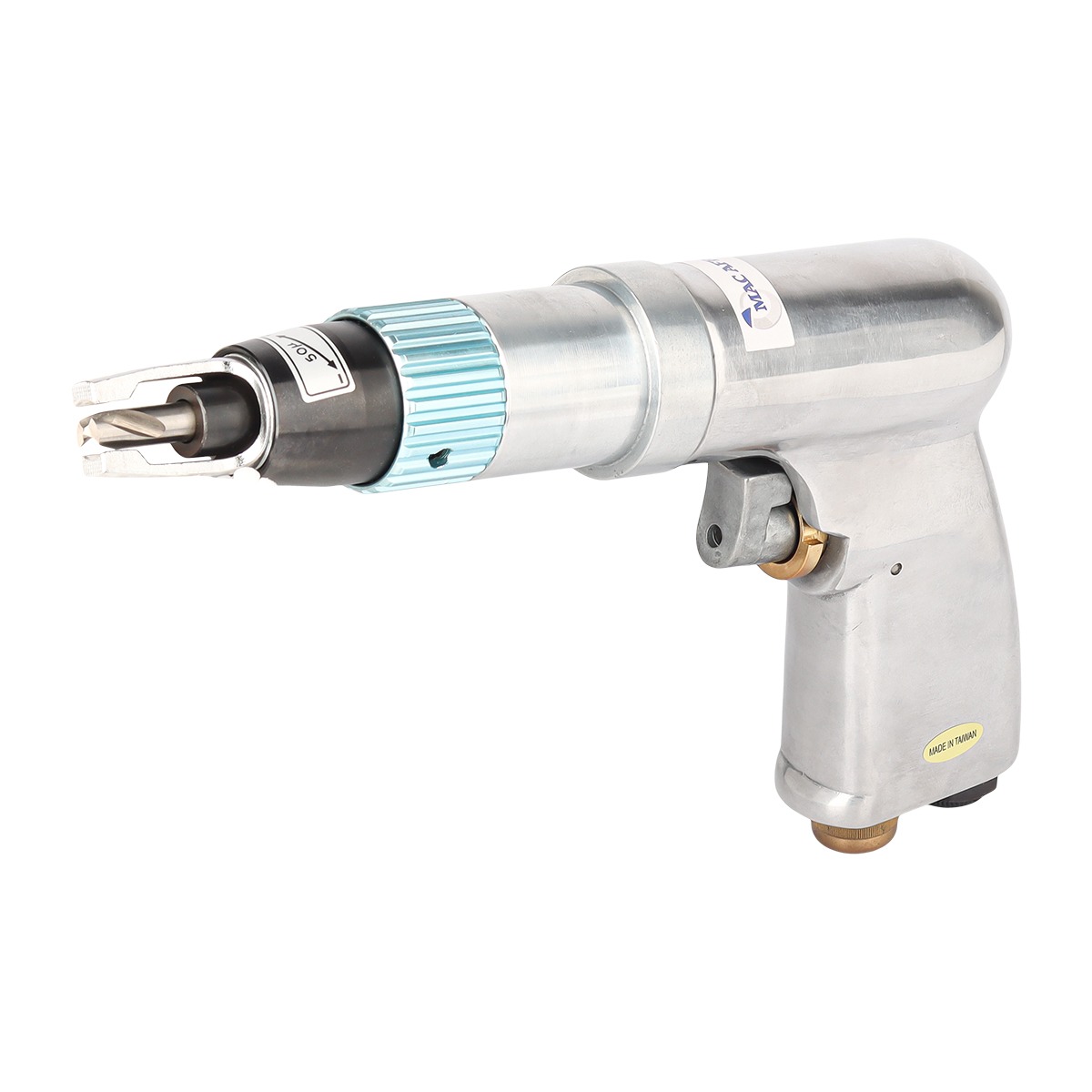

MAC AFRIC Air Rivet/Spot Weld Removing Drill
Using only 8.1 CFM to generate 1800RPM this amazing MAC AFRIC Air Rivet/Spot welding Removing Drill is efficient, durable and, powerful! With chuck sizes of either 8mm or 6.5mm you have the ability to accurately remove any rivets or spot welds without damaging or warping the original material!
Description
Technical Specifications
SKU: ADRILS006
Product Type: Pneumatic spot weld and rivet removal drill
No-Load Speed: 1 800 rpm
Air Consumption: 230 L/min
Working Pressure: 6.2 bar
Air Inlet: 1/4 in — currently listed as “NTP”; thread standard requires verification
Chuck Type: Keyless
Reversible: No
Package Dimensions: 156 × 340 × 72 mm
Package Weight: 1.66 kg
Handle Vibration: Currently listed as “1.20 M/S”; unit requires verification
Key Features
Purpose-designed for pneumatic removal of spot welds and rivets during panel-repair work.
Spring-loaded guide pin locates in a pilot hole to help keep the cutter positioned over the spot weld.
1 800 rpm no-load speed provides a clearly defined operating speed for cutter selection.
Keyless chuck allows cutter changes without a separate chuck key.
Published 230 L/min air requirement allows the customer to assess compressor suitability before purchase.
Operates at a stated 6.2 bar, suitable for integration into an appropriately regulated pneumatic system.
Suitable for automotive body-repair and sheet-metal applications where welded or riveted panel joints need to be separated.
