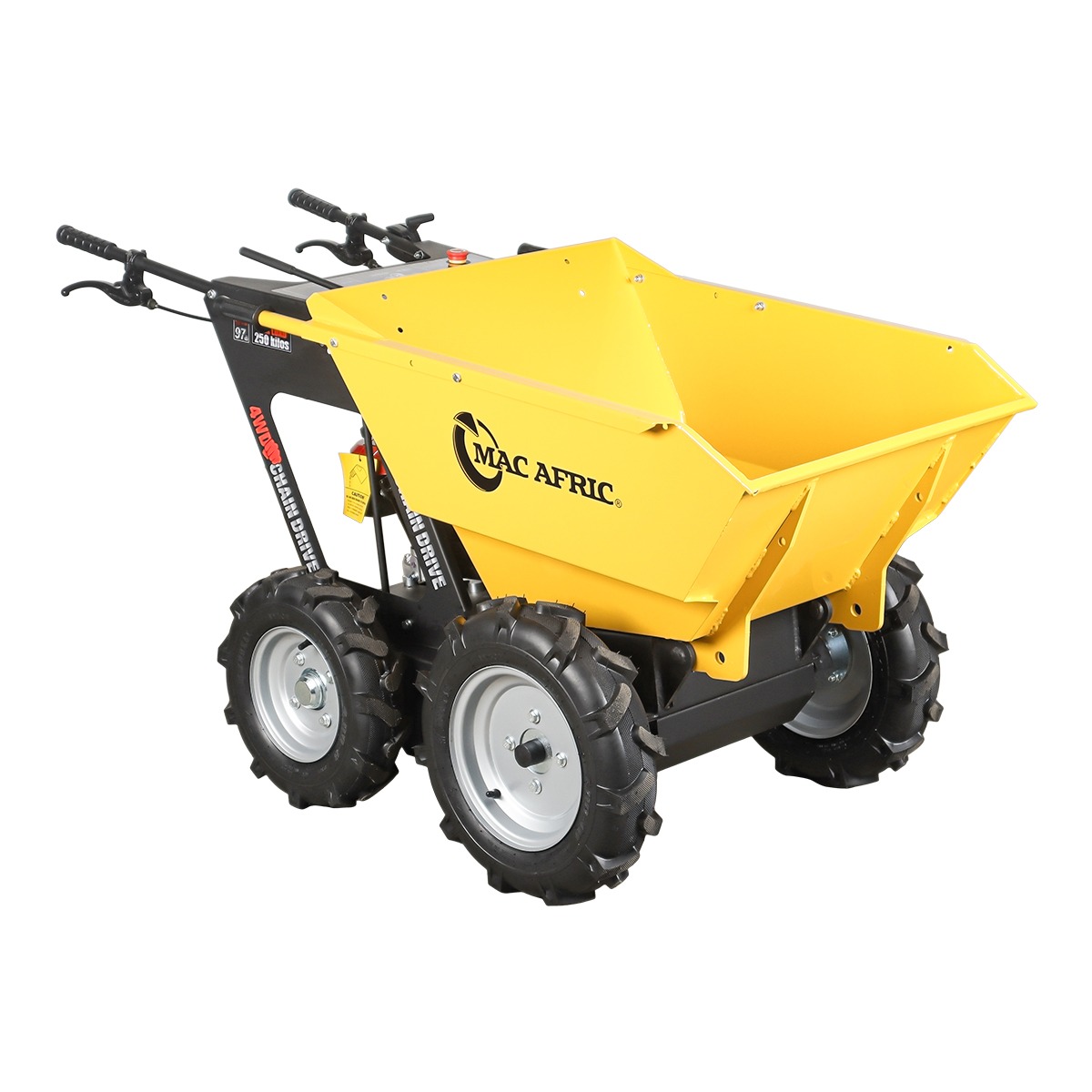

MAC AFRIC 6.5HP Gasoline Mini Dumper
Tackle tough jobs with ease using the MAC AFRIC 6.5HP Mini Dumper. Built for heavy-duty material handling, this powerful machine is ideal for transporting soil, gravel, bricks and more across rugged terrain. Its compact design ensures easy manoeuvrability in tight spaces, making it perfect for construction, landscaping or agricultural tasks. A reliable workhorse for demanding environments.
Description
Technical Specifications – Machine
Starting Mode: Recoil Start
Air Cleaner: Semi-dry, oil bath, foam filter
Technical Specifications – Engine
Engine Type: Single cylinder, 4-stroke, forced air cooling, OHV
Net Torque: 10.5 N·m @ 2500 rpm
Fuel Consumption: ≤ 395 g/kW·h
Idle Speed: 2200 ±150 rpm
Bore × Stroke: 70 × 51 mm
Displacement: 196 cc
Compression Ratio: 7.1 : 1
Lubrication Mode: Splash
Rotation: Anti-clockwise (from P.T.O. side)
Valve Clearance (Intake): 0.10–0.15 mm
Valve Clearance (Exhaust): 0.15–0.20 mm
Spark Plug Clearance: 0.7–0.8 mm
Ignition Mode: Transistorized magneto ignition
Key Features
Single-cylinder OHV petrol engine
Recoil start
Splash lubrication system
Forced air cooling
Transistorized magneto ignition
Frequently Asked Questions
What type of fuel should I use for this engine?
Use clean, fresh unleaded petrol. Avoid using old or contaminated fuel to prevent starting or performance issues.
How often should I check and change the oil?
Check oil levels before each use. Change the oil after the first 20 hours of use, then every 50 hours or as recommended in the user manual.
What does ‘splash lubrication’ mean?
This engine uses splash lubrication, meaning internal components are lubricated by oil being splashed around inside the engine crankcase. Ensure oil levels are always adequate for this system to function properly.
Why is my recoil starter hard to pull?
This could be due to engine compression or internal resistance. Ensure the engine isn’t flooded and the flywheel or recoil unit is not obstructed or damaged.
Can I replace the air filter with any type?
No. This engine uses a specific semi-dry oil bath foam filter. Replacing it with an incorrect type may result in dust ingress and engine damage.
What is the function of the transistorized magneto ignition?
It provides reliable and maintenance-free spark generation for starting and engine performance. It’s more efficient than traditional contact point ignition systems.
Can this engine run continuously for long periods?
Yes, but always follow recommended duty cycles and allow for cooling if operating under load for extended periods.
MAC AFRIC Mini Dumper Troubleshooting Guide
A helpful blog covering key issues and common solutions when dealing with your MAC AFRIC Mini Dumper. Essential reading for maintenance and problem-solving.
Click here to read: MAC AFRIC Mini Dumper Troubleshooting Guide
