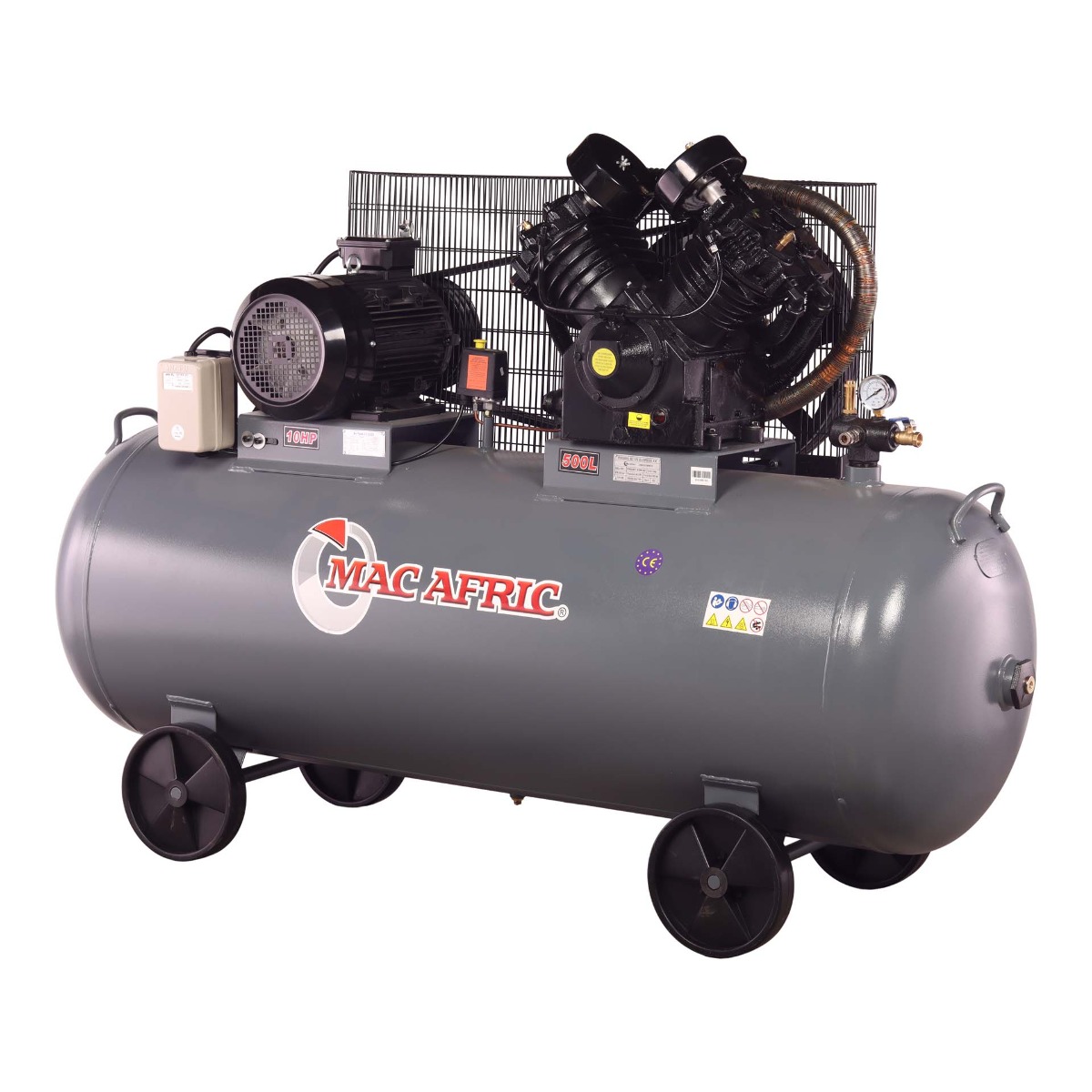

MAC AFRIC 500L 7.5 KW (10 HP) 380 V Belt Driven V-Head Compressor

The MAC AFRIC 500L three-phase compressor is an excellent entry-level option for small commercial workshops seeking a reliable and powerful air solution. Built with a durable cast iron pump and efficient two-stage pistons, this compressor features a 76mm stroke, capable of delivering an impressive air volume of 1463 l/min. Designed to handle demanding tasks, it offers consistent performance and durability, making it an essential tool for workshop operations.

SKU: COMPRV575 Category: Air Compressor Range

Description
Reviews (0)

Description

Technical Specifications

Tank Capacity: 500 L
Motor Output: 7.5 KW (10 HP)
Outlet Air Flow: 37 CFM (1 150 L/MIN)
Max Tank Pressure: 12 BAR (175 PSI)
Amperage: 30 A
Compressor Type: Belt Driven V-Head
RPM: 2 850 RPM
Replacement Head: NA
Fuel Type: NA
Voltage: 380 V @ 50 HZ
Expert Advice
The air delivery test is conducted at sea level (0–10 metres). As altitude increases, air delivery will decrease accordingly.
Drain your compressor tank daily after use to avoid build-up and contamination.
Do not run your compressor on electrical extension cords as this will cause a voltage drop which will inevitably cause damage to your machine.
Troubleshooting Guide
ProblemPossible CauseSolution
Slow build-up of pressure: Loose belt / worn piston rings: Tighten or replace belt, replace rings if worn
Belt slipping: Worn belt or pulley misalignment: Replace belt, align pulleys
Oil leaks: Worn seals / overfilled oil: Replace seals, keep oil at correct level
Overheating: Overworked / poor ventilation: Reduce duty cycle, improve cooling
Excessive vibration: Loose mounting bolts / imbalance: Tighten bolts, check for worn components
FAQs
How tight should the belt be?
Firm but with a slight flex when pressed.
How often should I change oil?
Every 3 months or 300 hours of use.
Can I store the compressor outside?
No, keep it dry and protected to prevent rust and electrical damage.
Is belt noise normal?
A slight whir is normal; squealing means the belt needs adjustment or replacement.
