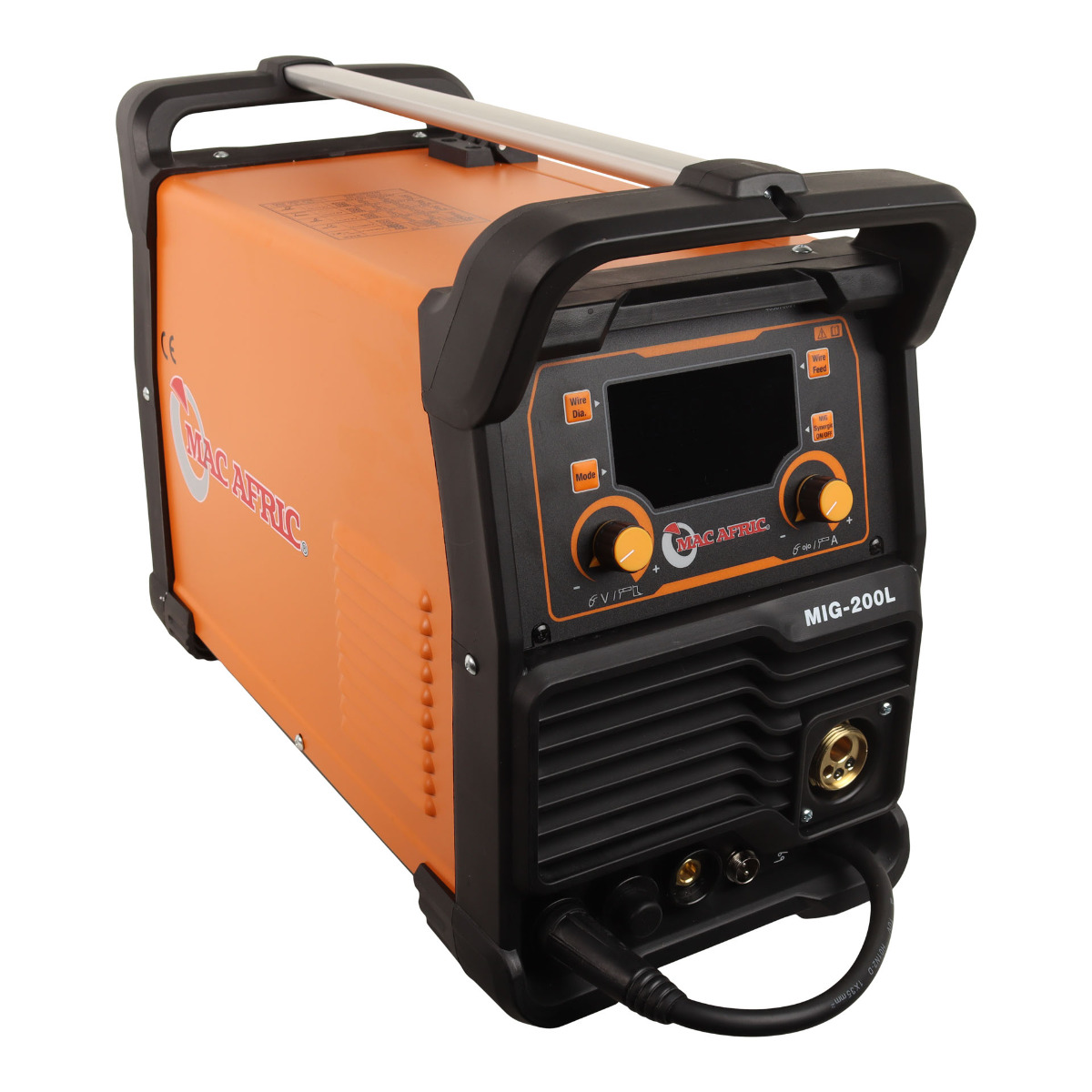

MAC AFRIC 4IN1 200A MIG/CUT/MMA/LIFT-TIG Inverter Welder
The MAC AFRIC 4IN1 200A MIG/CUT/MMA/LIFT-TIG Inverter Welder is a powerful and versatile welding machine that combines four functions in one compact package. Designed for professionals and enthusiasts alike, this welder allows you to tackle MIG/Flux, MMA, LIFT TIG, and Plasma Cutting (PAC) processes. Equipped with advanced features like an LED display and MCU controlling system, it ensures precision, flexibility, and superior performance across various welding applications.
Description
Technical Specifications – MIG / FLUX
Input Voltage / Phase: 230 V / 50 Hz
Input Current: 36 A
Input Power: 8.3 kVA
No-Load Voltage: 72 V
Welding Current: 20 – 200 A
Welding Voltage: 15 – 24 V
Rated Duty Cycle: 25%
Efficiency: 85%
Power Factor: 0.7
Supported Wire Sizes: 0.6 – 1.0 mm welding wire diameter
Spool Size: Accepts 5 kg (200 mm) or 1 kg (100 mm) wire reel
Feed Roll / Wire Groove Detail: Factory feed roll groove is for 0.8 – 1.0 mm wire. Groove must be changed for 0.6 mm wire.
Technical Specifications – MMA
Input Current: 39 A
Input Power: 9.0 kVA
No-Load Voltage: 72 V
Welding Current: 20 – 190 A
Welding Voltage: 20.8 – 27.6 V
Rated Duty Cycle: 25%
Efficiency: 85%
Power Factor: 0.7
Electrode Size Range: 1.0 – 5.0 mm
Technical Specifications – TIG
Input Current: 25 A
Input Power: 5.8 kVA
No-Load Voltage: 72 V
Welding Current: 20 – 190 A
Welding Voltage: 10.8 – 17.6 V
Rated Duty Cycle: 25%
Efficiency: 85%
Power Factor: 0.7
Technical Specifications – Plasma Cutter
Input Current: 30 A
Input Power: 6.9 kVA
No-Load Voltage: 380 V
Cutting Current: 20 – 40 A
Cutting Voltage: 88 – 96 V
Maximum Cutting Thickness: 12 mm
Rated Duty Cycle: 25%
Efficiency: 85%
Power Factor: 0.7
Included Accessories
AccessoryDetails
Flowmeter: Included
