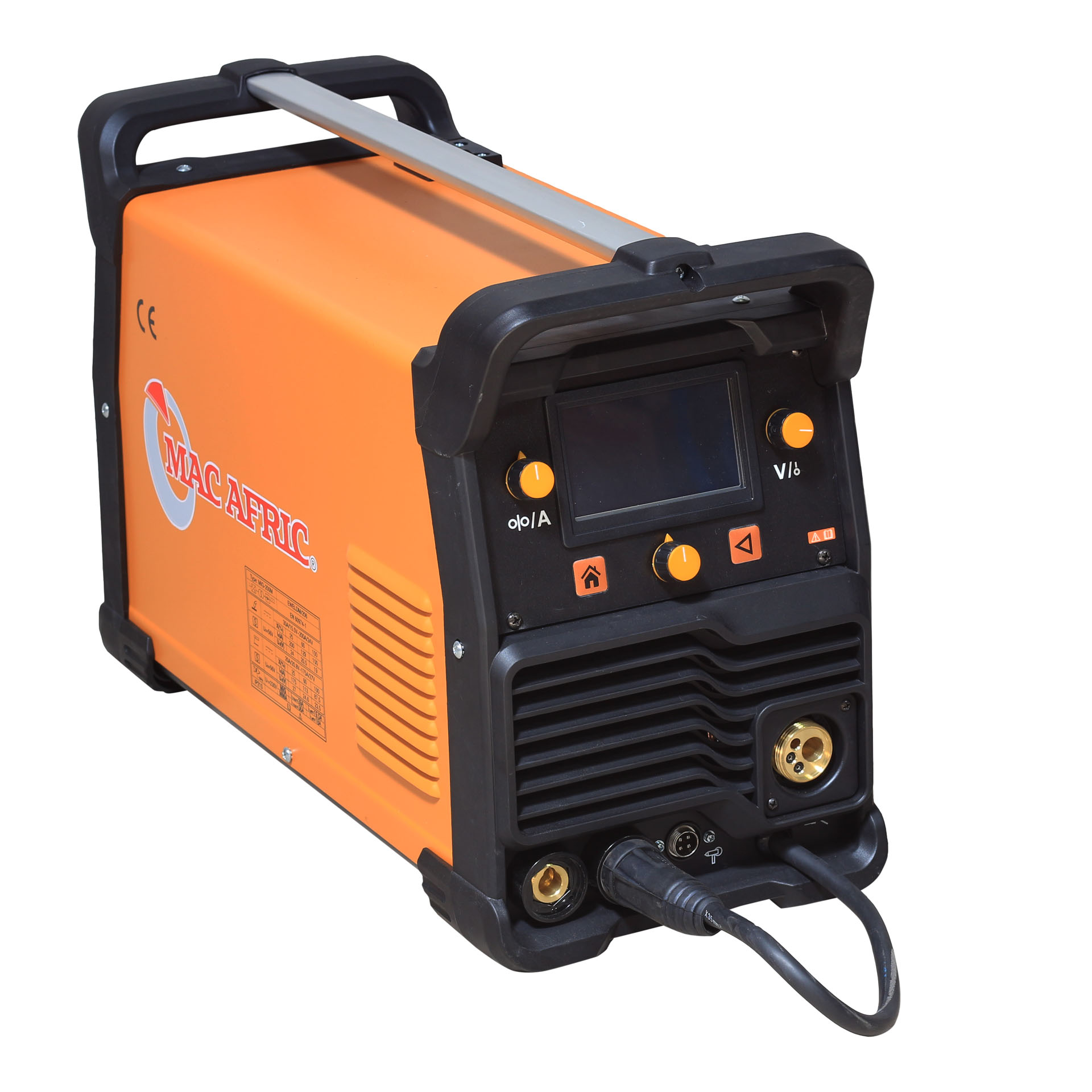

MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder

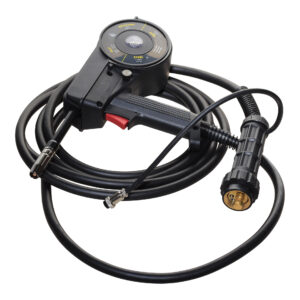

The MAC AFRIC 200A Multi-Process MIG/MAG Inverter Welder is an advanced and versatile welding solution, designed to tackle a range of welding processes with ease. Featuring an intuitive MCU controller and a TFT-LCD screen, it simplifies settings for enhanced precision. Capable of handling MIG, flux-cored arc, LIFT TIG, and MMA welding, this welder offers flexible functionality for various tasks, including optional aluminum welding with a spool gun. Equipped with PFC (Power Factor Correction), it maintains excellent performance even during voltage fluctuations.
Description
Technical Specifications – MIG / FLUX
Input Current: 39 A
Input Power: 9.0 kVA
No-Load Voltage: 56 V
Welding Current: 30 – 200 A
Welding Voltage: 15.5 – 24 V
Rated Duty Cycle: 25%
Efficiency: 85%
Power Factor: 0.7
Technical Specifications – MMA
Input Current: 36 A
Input Power: 8.3 kVA
No-Load Voltage: 56 V
Welding Current: 20 – 175 A
Welding Voltage: 20.8 – 27 V
Rated Duty Cycle: 25%
Efficiency: 85%
Power Factor: 0.7
Technical Specifications – TIG (LIFT / DC)
Input Current: 21 A
Input Power: 4.7 kVA
No-Load Voltage: 56 V
Welding Current: 20 – 175 A
Welding Voltage: 10.8 – 17 V
Rated Duty Cycle: 25%
Efficiency: 85%
Power Factor: 0.7
