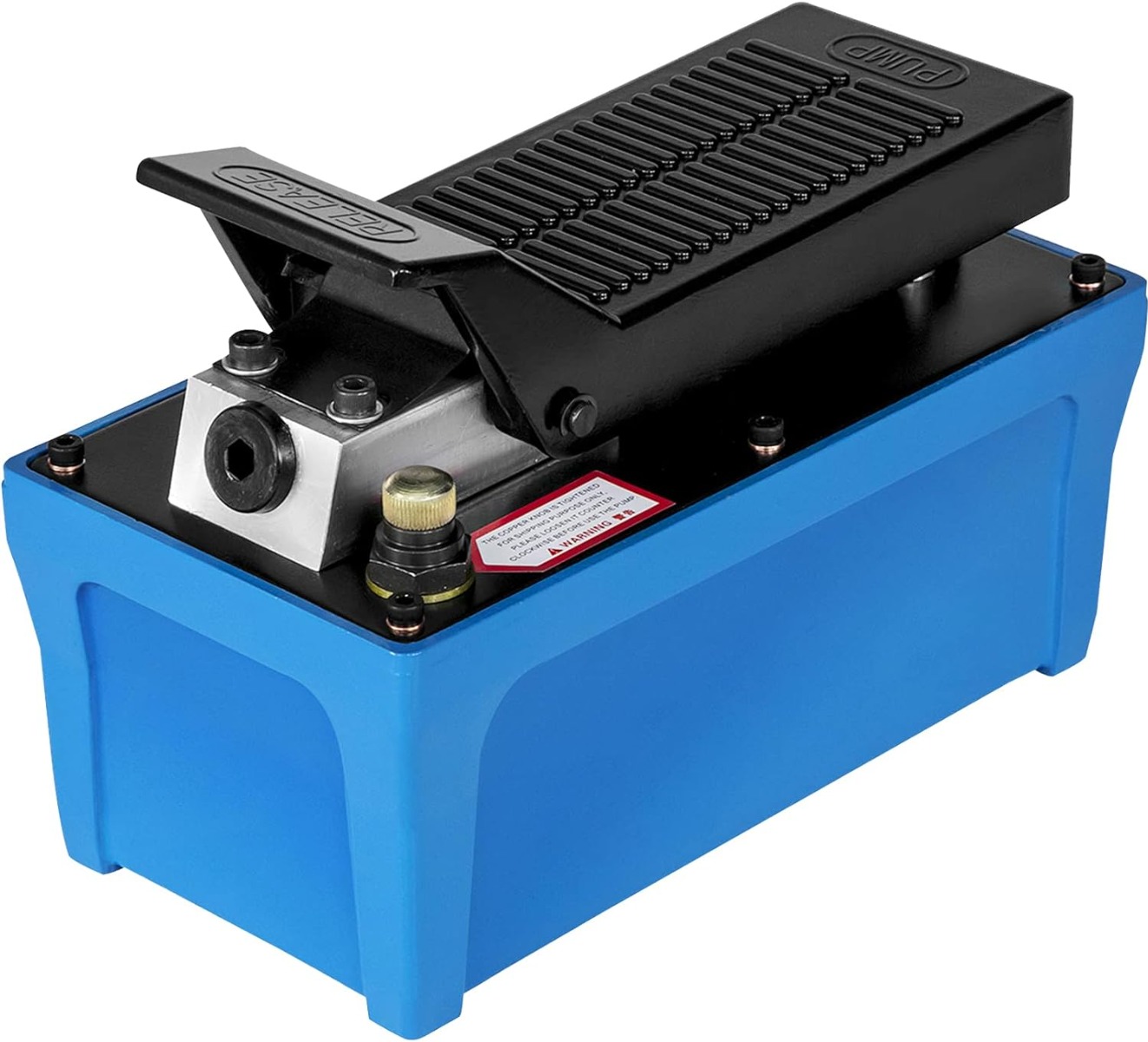

MAC AFRIC 10,000 PSI Pneumatic Powered Hydraulic Actuated Foot Pump
The air hydraulic pump features a user-friendly foot-actuated design, providing hands-free operation for both pumping and releasing the load. This design not only saves the operator’s time and effort but also offers robust power and high output pressure. Additionally, the convenient 2-stage release mechanism enables quick or metered ram return while minimizing hydraulic shock.
Description
Technical Specifications
Max. Air Pressure: 120 PSI (8.2 Bar)
Useable Oil Capacity: 1.7 L
Max. Hydraulic Pressure: 10 000 PSI (689 BAR)
Input Port Threads: 1/4″ IN – 18 NPT
Output Port Threads: 3/8″ IN – 18 NPT
Flow (@ 100 PSI): 0.85 L/MIN
Flow (@ 10 000 PSI): 0.16 L/MIN
Air Consumption: 11 CFM (@ 100 PSI)
Air/Hydraulic Ratio: 4.17
Operating Method: Pedal
Hose Length: 2 M
