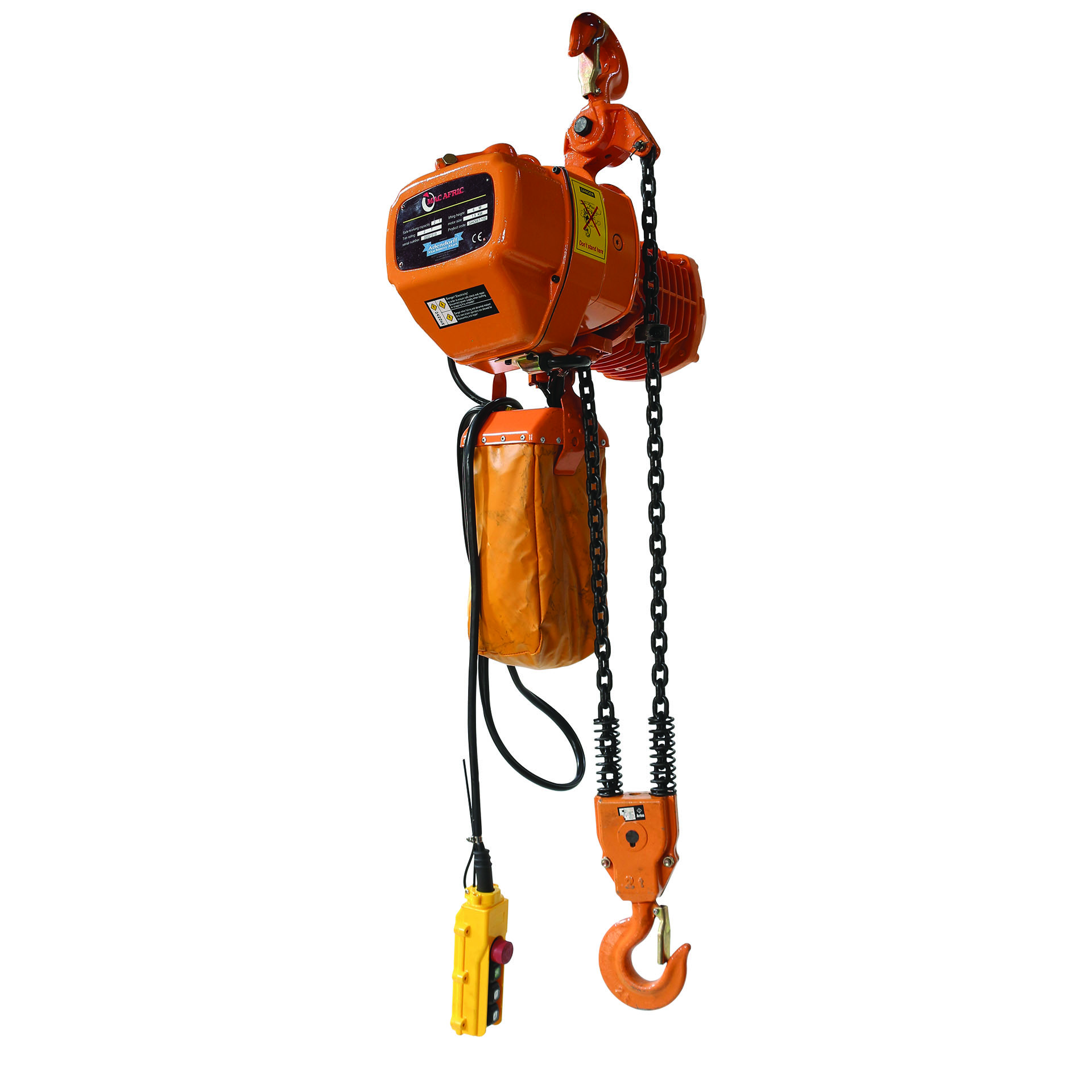

MAC AFRIC 1.5 Ton Electric Chain Hoist (1.5kw 380V)
The MAC AFRIC 1.5 Ton Electric Chain Hoist combines formidable lifting capability with advanced safety features. With a 1.5 kW motor and a lift speed of 3.4 meters per minute, it is designed to handle heavy loads efficiently in industrial settings.
Description
Technical Specifications
Lift Speed: 3.4 m/min (11.15 ft/min)
Lifting Height: 6 m (19.69 ft)
Chain/Cable Diameter: 7.1 mm (0.28 in)
Noise Level: 81 dB(A)
Protection Class: IP54
Working Load Limit: 1.5 Ton (1500 kg | 3306.93 lbs)
Power Output: 1.5 kW (2 HP)
Power Supply: 380 V (3 Phase) @ 50 Hz
Chain Cable Pitch: 21 mm (0.83 in)
Key Features
Equipped with a fail-safe electromagnetic brake for immediate and secure stopping
GR80 case-hardened load chain ensures high durability and longevity
Aluminium alloy motor housing offers protection from environmental factors
Top and bottom limit switches allow for precise load positioning
Anti-phase relay cut-out device enhances electrical safety
Low voltage (24V) pendant control reduces risk of electrical shock
Compatible with 380V 3-phase power supply for industrial applications
Robust construction suited for high-efficiency and safety-critical lifting tasks
